2 in 1 Modulator Encoder (AV to IP/RF or AV/IP to RF) T.0X series
What technical specifications does the Televes 563852 Modulator Encoder have?
INPUT
Video?? 2 sets 3 x RCA (Y, Pb, Pr)
2 sets 1 x RCA (CVBS)
Audio?? 2 sets 2 x RCA (L, R)
2 sets 1 x RCA (Digital)
2 sets 1 x Toslink (Optical)
Video + Audio?? 2 sets 1 x HDMI
IP Multicast 2 ports RJ45 switch Gbe SPTS or MPTS (UDP/RTP)
VIDEO ENCODER
Output format MPEG-2 / H264
Resolution 480i, 480p, 576i, 576p,
720p, 1080i & 1080p
Auto-scan of input resolution (1)
Aspect ratio 4:3, 16:9 y pass through
GOP?? 10, 12, 15, 16, 18, 20, 24 ? 30
AUDIO ENCODER
Output format Dolby Digital AC-3 only Digital Loop) or
MPEG1 Layer2 (analogue input HDMI PCM)
Sampling rate kHz 48
Output
Frequency bands MHz 46…862
Maximum output level

dB?V /

dBmV

115/55
(103/43 with active loop-through)
MER? dB >40
Spurious dBc -60
Annex A QAM Modulation 16, 32, 64, 128, 256
BaudRate Mbaud 6,9
Roll-off % 15
Code Reed Solomon
Spectrum mode Normal / Inverted
Frequency steps kHz 250
COFDM Modulation QPSK, 16QAM, 64QAM
Guard interval ?S 1/4, 1/8, 1/16, 1/32
FEC? 1/2, 2/3, 3/4, 5/6, 7/8
Bandwidth MHz 6, 7, 8
Cell_id? Yes
Frequency steps kHz 125 / 166
IP Transport Stream SP/MP 2 SPTS IP multicast outputs
(UDP o RTP) / 1 MPTS output
PSI Transport Stream ID? Editable
Original Network ID? Editable
Network ID? Editable
LCN? Editable
NIT? Editable
SDT? Editable
Tipo LCN? Generic / UK / NorDig V1 / NorDig V2
Network Name? Editable
Service PID? Editable
Service Name? Editable
Service ID ?Editable
General???
Voltage Vdc 24
Consumption W <20,4
Protection index IP 20

(1) The output resolution is the same as the input signal source.

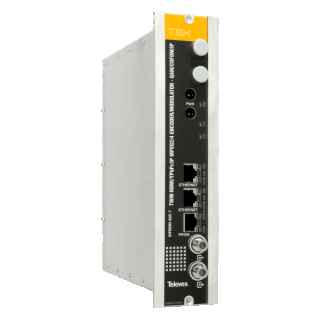

T.0X Modulator Encoder A/V-IP or IP-DVBT/DVBC Televes
