FO socket kit for ICT-2 Keystone Module with SC/APC Female…
KSh6,480.00

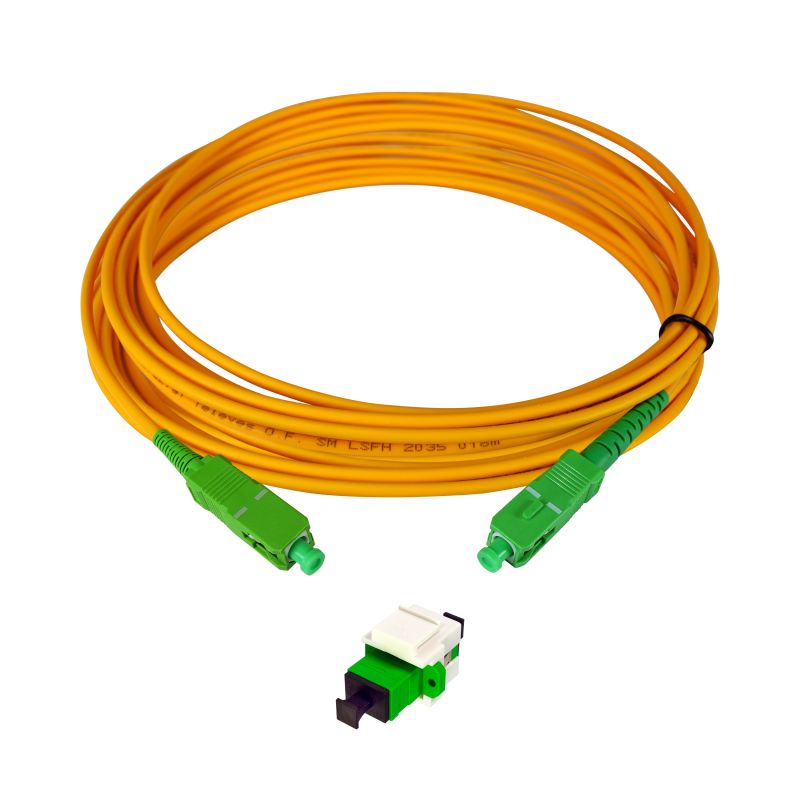

F.O. Outlet Kit: Keystone Module + Adapter + Preterminated Patch Cord LSFH Dca 25m.
F.O. Outlet Kit: Keystone Module + Adapter + Preterminated Patch Cord LSFH Dca 25m
Complete kit for the installation of a connectorized fiber optic outlet.
The keystone module allows the installation of a “SC/APC” female fiber optic adapter in an RJ45-type outlet cover. The module, together with the adapter, make up a fiber optic terminal outlet.
It also includes a preterminated single-mode fiber optic patch cord with “SC/APC” connectors at its ends, to supply the signal from the optical UAP to the socket. This patch cord is specially designed with a shorter boot at one of the ends, thus avoiding increases attenuations in the signal due to exceisve bends.
Highlights
Keystone module with standard dimensions, making it compatible with all conventional RJ45 covers
Very easy installation: the keystone module is introduced into the cover by pressing until the module tabs hook. The adapter is installed on the keystone module by the same process
Patch cord design adapted to the installation in the outlet: its shorter boot makes easier the passage of the SC/APC connector into the pipe to the outlet
Very low insertion losses
Patch cord with Euroclass Dca-s2,d2,a1
Features
“SC/APC” connectors
Keystone module built in white colour PVC plastic
Patch cord with ITU-T G657A2 single-mode fiber and LSFH outer sheath in orange colour
Specifications
Euroclass Dca
Euroclass: Smoke Production s2
Euroclass: Flaming droplets d2
Euroclass: Acidity a1
Fiber core type Single-mode (ITU-T-G.657A2)
Optical fiber type category OS1
Fiber core diameter ?m 9
Fiber cladding diameter ?m 125
Coating buffer diameter ?m 250
Cable structure Tight buffer
Plastic buffer diameter mm 0.85
Outer sheath Diameter mm 3
Outer sheath Material LSFH
Blocking jelly No
Attenuation 1310nm dB/km < 0.8
Attenuation 1490nm dB/km < 0.8
Attenuation 1550nm dB/km < 0.8
Insertion losses in connector 1 dB < 0.5
Insertion losses in connector 2 dB < 0.5
Return losses in connector 1 dB > 60
Return losses in connector 2 dB > 60
Optical connector type 1 SC
Polishing type (Optical connector 1) APC
Optical connector type 2 SC
Polishing type (Optical connector 2) APC
Short tension N 450
Long tension N 200
Structure reinforcement element Aramid fibers
Short crush (@100mm) N 500
Long crush (@100mm) N 100
Minimum bending radius mm 15
Operating temperature ?C -20 … 70
