Support table / wall encoder T.0X

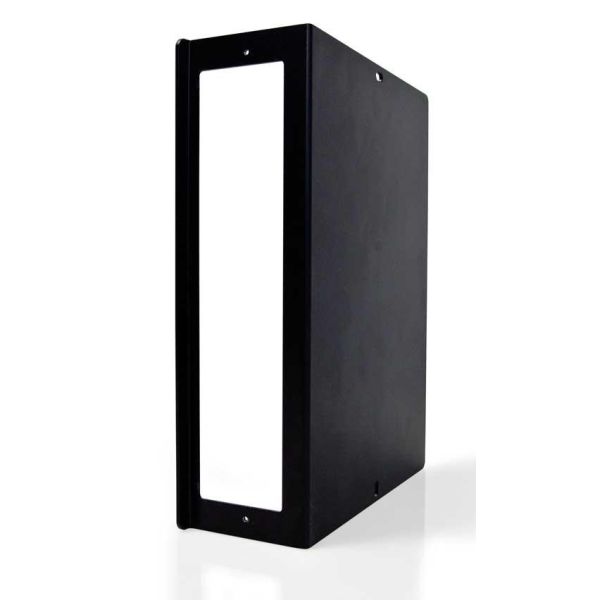

Support table / wall T.0X Televes encoder . Ref . 567,401 .
This support can be added in installations where only T0X encoder module is used, to avoid the use of a rack . This support is made of rolled steel and painted black .
Characteristics:
Support made of rolled steel.
Painted in black.
Support for installations where not want to use a rack.
