Triax TMS 9x12P Multiswitch End Switch 8 polarities +…
KSh50,232.00

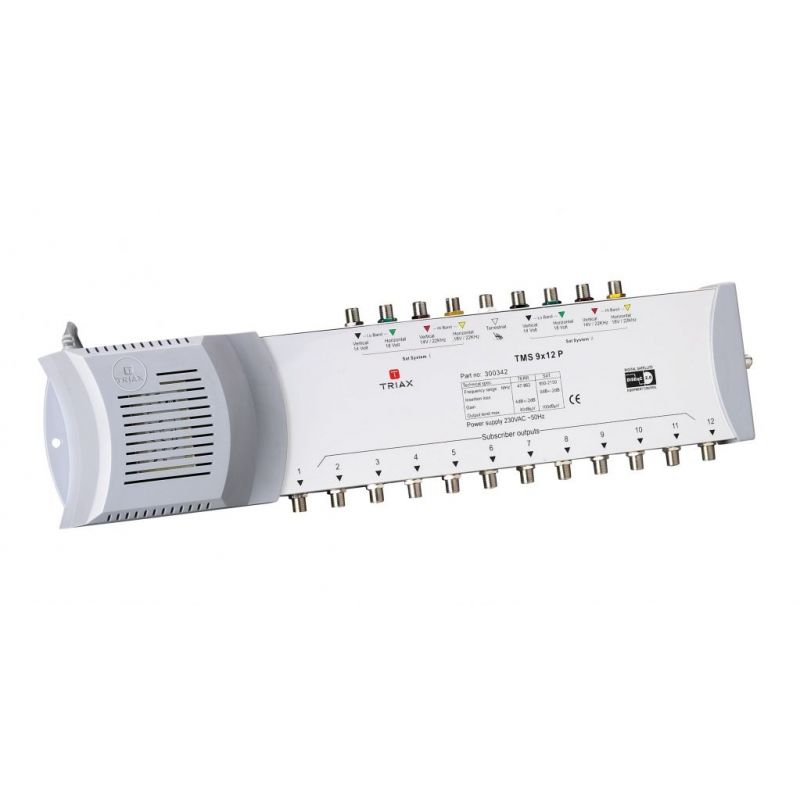

Triax TMS 9X12P is a 12-way switch for distribution of the 2-position satellite IF signal. The switch can be used individually in efficient systems and at low cost.
Features
Multiswitch 8 polarities SAT + 1 Terrestrial. 12 Outputs
Integrated power supply
Specifications
ORDER INFORMATION
EAN Number 5702663003422
CHARACTERISTICS
Max. output level SAT @ -35 dB IMD3 100 dB?V
Max. output level TER @ -60dB IMD3 83 dB?V
Switch commands 13/18 V, 0/22 kHz, DiSEqC 1.0
FREQUENCY
Frequency range SAT 950-2150 MHz
Frequency range TER 47-862 MHz
GAIN
Gain – SAT (with 5 dB slope) 0 dB
Gain – TER [47-862 MHz] 4.0 dB
ISOLATION
Isolation cross polarisation H/V 25 dB
Isolation out-out SAT 30 dB
Isolation out-out TER 28 dB
Isolation SAT to TER 30 dB
Isolation TER to SAT 30 dB
RETURN LOSS
Return loss SAT inputs 10 dB
Return loss SAT outputs 10 dB
Return loss TER inputs 12 dB
Return loss TER outputs 10 dB
ELECTRICAL
Impedance 75 ?
OPERATIONAL
DC Operating voltage 15.0 ? 1.0 VDC
Max. current pass per F-connector 1000 mA
Temperature range 0…+55 ?C
CONNECTORS
Colourcoding of IF and TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow
Connector Type F-female
Number of outputs 9
Number of trunk inputs 8 SAT, 1 TER
Number of trunk outputs 8 SAT, 1 TER
Subscriber outputs 12
MECHANICAL
Product Depth 103 mm
Packaging Depth 0,495 m
Packaging Height 0,085 m
Total Weight 2,022 kg
Packaging Width 0,145 m
Net Weight 1,778 kg
Packing QTY 1
Tara Weight 0,244 kg
Packaging Volume 0,006 m3
Product Width 459 mm
Product Height 71 mm
Related products
-
Add to cartThe IDLU-UWT110-CUO1O-32P is a small form factor Unicable2 multiswitch enabling installations with up to 32 satellite receivers over a single cable based on digital channel stacking technology. Digital channel stacking technology applies digital signal processing after wideband Analog to Digital converters (full band capture) to select and reorder transponder channels.
The multiswitch supports both Dynamic and Static modes. In Dynamic mode (default), up to 32 EN50607-compatible receivers (or up to 16 EN50494-compatible) connected over the Unicable output ports, can select their desired transponder and receive it over the respective User Band. In Static mode, the multiswitch outputs a fixed transponder-to-IF frequency mapping and can line up to 32 transponders (depending on the bandwidth of the desired transponders) over its Unicable output ports. This allows for an unlimited number of receivers to be connected to the switch making MDU installations substantially cheaper and simpler than ever before.
This multiswitch has 4 satellite inputs that can receive (and cascade) either 4 universal satellite IF bands (LV, LH, HV and HH) from one satellite feed, or 2 wideband satellite IF signals (Horizontal and Vertical) from two satellite feeds. A unique feature of the multiswitch firmware allows to daisy chain two units and combine their outputs with external combiner to support connection of up to 4 wideband satellite IF signals from up to four satellite feeds. It also has a Terrestrial VHF/UHF input. The terrestrial signals are combined over both output ports of the multiswitch.
The Terrestrial signal is not amplified. The multiswitch has two outputs – by default, one of the ports is configured to function as a Unicable port in dynamic mode and the second is configured to function as Universal (Legacy) and switches to Unicable as soon as it receives an EN50494 or EN50607 command. The operating mode and configuration of each output port – unicable/universal, dynamic/static – output power level, channel bandwidth, UB numbers and protocol, center frequencies and the functionality of each of the output ports are fully programmable through Inverto?s Unicable II Programmer device and PC software tool.
The multiswitch is powered over the supplied AC/DC adapter and power inserter device allowing greater flexibility in various installation scenarios. The communication protocol between the multiswitch unit and the connected receivers is based on EN50494 and/or EN50607 and can be defined per User Band allowing operators to support installations consisting of both EN50494-only and EN50607-compatible Next Generation PVRs and HGWs.
Specifications
Inverto IDLU-UWT110-CUO1O-32P
Frequency range: satellite Quattro LNB: 950 MHz ~ 2150 MHz (default)
Wideband LNB: 300 MHz ~2350 MHz
Frequency range: terrestrial 47 MHz ~ 862 MHz
Inputs 4x IF inputs:
– for 1x Quattro LNB (default)
– or 2x Wideband LNBs
1x UHF/VHF input for terrestrial antenna
Outputs 4x Loopthrough satellite IF outputs
1x Loopthrough terrestrial output1x Unicable II (dCSS/EN50607) output, dynamic
(default) or statis mode, supporting up to 32 UBs.
With combined terrestrial signal.1x Universal (Legacy) by default upon power up, auto switch
to Unicable II? upon receiving EN50494/EN50607 command.?
With combined terrestrial signal
Input power range -50 dBm ~ -15 dBm
Output signal level (AGC) Configurable (default -25 dBm)
RF isolation: satellite/terretsrial (input) 25 dB min.
RF isolation: satellite/satellite (input) 25 dB min.
RF isolation: satellite ch/ch (UBs, output) 28 dB min.
Loop-through loss: satellite 3 dB max.
Loop-through loss: terrestrial 3 dB max.
Gain: Unicable II? (dCSS) output (out of AGC) 25 dB min.
Gain: legacy (universal) output 10 dB min.
LO phase noise @ 1 kHz -80 dBc/Hz max.
LO phase noise @ 10 kHz -92 dBc/Hz max.
LO phase noise @ 100 kHz -96 dBc/Hz max.
LO phase noise @ 1 MHz -104 dBc/Hz max.
Integrated phase noise 1.5? max.
Control protocols DiSEqC 1.x/DiSEqC 2.0, EN50494/EN50607
Legacy port switching V/L => 13 V/0 kHz , V/H =>13 V/22 kHz
H/L => 18 V/0 kHz , H/H => 18 V/22 kHz
Input/Output impedance 75 ? (F-type)
LNB power supply 300 mA max. @ 13 VDC ~ 18 VDC
Power consumption 500 mA @ 13 VDC max.
Working temperature -20 ?C ~ +60 ?C
IP protection IP54
Product dimensions (W x D x H) 11.35 cm x 11.05 cm x 20.8 cm
Weight 165 g
Unicable II? (dCSS) port specifications
User band (channel) bandwidth Configurable, 10 MHz ~ 80 MHz (default 30MHz)
User band (channel) gain ripple 3 dB max.
User band (channel) frequencies Configurable; Default 32 User bands:
? CH1: 1210MHz (EN50494+EN50607)
? CH2: 1420MHz (EN50494+EN50607)
? CH3: 1680MHz (EN50494+EN50607)
? CH4: 2040MHz (EN50494+EN50607)
? CH5: 984MHz (EN50494+EN50607)
? CH6: 1020MHz (EN50494+EN50607)
? CH7: 1056MHz (EN50494+EN50607)
? CH8: 1092MHz (EN50494+EN50607)
? CH9: 1128MHz (EN50607)
? CH10: 1164MHz (EN50607)
? CH11: 1256MHz (EN50607)
? CH12: 1292MHz (EN50607)
? CH13: 1328MHz (EN50607)
? CH14: 1364MHz (EN50607)
? CH15: 1458MHz (EN50607)
? CH16: 1530MHz (EN50607)
? CH17: 1530MHz (EN50607)
? CH18: 1566MHz (EN50607)
? CH19: 1602MHz (EN50607)
? CH20: 1638MHz (EN50607)
? CH21: 1716MHz (EN50607)
? CH22: 1752MHz (EN50607)
? CH23: 1788MHz (EN50607)
? CH24: 1824MHz (EN50607)
? CH25: 1860MHz (EN50607)
? CH26: 1896MHz (EN50607)
? CH27: 1932MHz (EN50607)
? CH28: 1968MHz (EN50607)
? CH29: 2004MHz (EN50607)
? CH30: 2076MHz (EN50607)
? CH31: 2112MHz (EN50607)
? CH32: 2148MHz (EN50607) -
Add to cartMast installation amplifier to amplify terrestrial television signals from several antennas. It consists of 3 inputs with UHF band amplification and a single additional UHF channel (on demand), in addition to VHF mixing. The amplifier is powered at 24Vdc through the coaxial output cable. Televes 535340
-
Johansson 6631 Central Programmable Super Profiler
KSh51,734.00Add to cart7/8 inputs: BI-FM / BIII-DAB / AUX (47-862 MHz) / 4 x UHF
2 single channel super selective filters. 30dB@1MHz
8 groups of up to 7 channels (30dB @ 16 MHz)
Possibility of frequency conversion
High filter selectivity thanks to new technology (LTE proof)
High output level > 120 dB?V
Selectable preamp supply 5-12-24 V on the BIII-DAB and UHF inputs
2 programmable outputs
Work at low temperature without fan
Easy programming with the PC or with the 6565 control unit!
45 dB (118 dB?V) IF SAT. The Super Profiler is a special version of the Profiler PLUS series, which has two single channel super selective filters. A very attractive feature is frequency conversion: A multiplex can be converted to another channel, giving you the ability to manage your own frequency plan
-
Add to cartIDLU-UST110-CUO8O-32PP. The Multiswitch unit connects to a Quattro LNB (default configuration) or two Wideband LNBs to support reception from 2 satellites and offers a Terrestrial input port to connect a terrestrial antenna for reception of UHF/DAB/radio broadcasts. The terrestrial signal can be amplified through a dedicated ON/OFF switch and is combined over each of the 8 output ports. The output ports operate in either dCSS/SatCR or Universal (Legacy) mode.
The Multiswitch unit can be powered through a DC input port, any of the trunk output lines or from the STB output ports (typically using a power inserter device). In typical cascaded MDU installations, the DC voltage supplied over the DC in or trunk output lines is passed through to the trunk input lines in order to power the LNB and the ?STB DC pass to LNB trunk? switch must be set to OFF.
To help the installer ensure at the time of installation that the unit?s power supply is sufficient to support a full load in the future i.e. 8x STBs with all User Bands activated, the Multiswitch features a special power diagnosis test mode that is triggered automatically upon unit startup.
During this 15 second test, the Multiswitch simulates operation with full load and will light the power-diagnosis led in green if the unit is supplied with sufficient power or in amber if not. A status led, located next to each output port, indicates the operating mode of the port (Legacy=solid green, dCSS = blinking green, Power diagnosis=blinking red/green).?The configuration of the Multiswitch can be customized for different installation circumstances where parameters like LNB type (Quattro or Wideband), the frequencies and bandwidth of the User Bands as well as others can be programed using Inverto?s SatPal??Controller or Unicable II Programmer*.
Optional accessories (sold separately):
5423? ? ?IDLU-ADPT03-19342-OPP? ? ? ? MDU power supply unit, supplying up to 2 units + LNB 19 V, 3.42 A
5380? ???IDLU-PINS02-OOOOO-OPP? ? ?Power Inserter and a power supply unit 19 V, 0.94 A for a single port pair
5415? ? ?IDLU-SPAL03-OOOBT-OPP? ? ? SatPal??Controller
5393 ? ? IDLU-PROG02-OOOOO-OPP ? Unicable II??Programmer?For Indoor and outdoor (IP54) installations
* Programmer not included, sold separately as an optional accessory.
?
Specifications
Inverto – 5458 IDLU-UST110-CUO8O-32PP
Frequency range: satellite Quattro LNB: 950 MHz ~ 2150MHz (default)
Wideband LNB: 300 MHz ~ 2350MHz
Frequency range: terrestrial 47 MHz ~ 862 MHz
Inputs 4x IF inputs:?
– From 1x Quattro LNB (default)?
– From 2x Wideband LNBs
1 x UHF/VHF input from Terrestrial antenna
Outputs 4x Loopthrough satellite IF outputs*
1x Loopthrough terrestrial output8x auto-detect Unicable II / Legacy output ports with combined
errestrial signal. Default behavior: Legacy mode on power up,
auto-switch to Unicable II dynamic mode upon receiving an
EN50494/EN50607 command.
Input power range -50 dBm ~ -5 dBm
Output signal level (AGC) -25 dBm (83 dBuV)
RF isolation: satellite/terretsrial (input) 30 dB min.
RF isolation: satellite/satellite (input) 30 dB min.
RF isolation: satellite ch/ch (UBs, output) 30 dB min.
Loop-through loss: satellite 4dB max. (loss)
Loop-through loss: terrestrial 8 dB @ 400~600 MHz (12 dB max.) (loss)
[amplification=OFF]
+11 dB @400~600 MHz (+7 dB min.) (gain)
[amplification=ON]
Gain: Unicable II? (dCSS) output (out of AGC) 25 dB min.
Gain: terrestrial signal -19 dB @ port 4 over 400~600MHz (-25 dB min.)
[amplification = OFF]
+1 dB @ port 4 over 400~600MHz (-9 dB min.)?
[amplification = ON]
* 1dB difference between adjacent ports, -1 dB from port 1 through to port 8
Integrated phase noise 1.5? max.
Control protocols EN50494 (SatCR), EN50607 (dCSS), DiSEqC1.0/2.0,
13 V/18 V + 0 kHz/22 kHz
Legacy port switching V/L => 13 V/0 kHz , V/H => 13 V/22 kHz
H/L => 18 V/0 kHz , H/H => 18 V/22 kHz
Input/Output impedance 75 ? (F-type)
LNB power supply 500 mA max. @ 18 VDC
Power consumption 1200 mA @ 19 VDC (no load)
Working temperature -20 ?C ~ +50 ?C
IP protection IP54
Product dimensions (W x D x H) 210 mm x 146 mm x 3.7 mm
Weight 500 g
Unicable II? (dCSS) port specifications
User band (channel) bandwidth 46 MHz, programmable 10 MHz ~ 80 MHz
User band (channel) gain ripple 3 dB max.
User band (channel) frequencies Default Unicable II? dynamic user bands per output port:?
? CH1: 1210MHz EN50607+EN50494 (dCSS+SatCR)???????
? CH2: 1420MHz EN50607+EN50494 (dCSS+SatCR)
? CH3: 1680MHz EN50607+EN50494 (dCSS+SatCR)
? CH4: 2040MHz EN50607+EN50494 (dCSS+SatCR)
? CH5: 985MHz EN50607+EN50494 (dCSS+SatCR)
? CH6: 1050MHz EN50607+EN50494 (dCSS+SatCR)
? CH7: 1115MHz EN50607+EN50494 (dCSS+SatCR)
? CH8: 1275MHz EN50607+EN50494 (dCSS+SatCR)
? CH9: 1340MHz EN50607 (dCSS)
? CH10: 1485MHz EN50607 (dCSS)
? CH11: 1550MHz EN50607 (dCSS)
? CH12: 1615MHz EN50607 (dCSS)
? CH13: 1745MHz EN50607 (dCSS)
? CH14: 1810MHz EN50607 (dCSS)
? CH15: 1875MHz EN50607 (dCSS)
? CH16: 1940MHz EN50607 (dCSS)
? * Unused ports need to be terminated by 75 Ohm DC-blocked terminators
Inverto-5458 IDLU-UST110-CUO8O-32P?
Frequency range: satellite Quattro LNB: 950 MHz ~ 2150MHz (default)
Wideband LNB: 300 MHz ~ 2350MHz
Frequency range: terrestrial 47 MHz ~ 862 MHz
Inputs 4x IF inputs:?
– From 1x Quattro LNB (default)?
– From 2x Wideband LNBs
1 x UHF/VHF input from Terrestrial antenna
Outputs 4x Loopthrough satellite IF outputs*
1x Loopthrough terrestrial output8x auto-detect Unicable II / Legacy output ports with combined
errestrial signal. Default behavior: Legacy mode on power up,
auto-switch to Unicable II dynamic mode upon receiving an
EN50494/EN50607 command.
Input power range -50 dBm ~ -5 dBm
Output signal level (AGC) -25 dBm (83 dBuV)
RF isolation: satellite/terretsrial (input) 30 dB min.
RF isolation: satellite/satellite (input) 30 dB min.
RF isolation: satellite ch/ch (UBs, output) 30 dB min.
Loop-through loss: satellite 4dB max. (loss)
Loop-through loss: terrestrial 8 dB @ 400~600 MHz (12 dB max.) (loss)
[amplification=OFF]
+11 dB @400~600 MHz (+7 dB min.) (gain)
[amplification=ON]
Gain: Unicable II? (dCSS) output (out of AGC) 25 dB min.
Gain: terrestrial signal -19 dB @ port 4 over 400~600MHz (-25 dB min.)
[amplification = OFF]
+1 dB @ port 4 over 400~600MHz (-9 dB min.)?
[amplification = ON]
* 1dB difference between adjacent ports, -1 dB from port 1 through to port 8
Integrated phase noise 1.5? max.
Control protocols EN50494 (SatCR), EN50607 (dCSS), DiSEqC1.0/2.0,
13 V/18 V + 0 kHz/22 kHz
Legacy port switching V/L => 13 V/0 kHz , V/H => 13 V/22 kHz
H/L => 18 V/0 kHz , H/H => 18 V/22 kHz
Input/Output impedance 75 ? (F-type)
LNB power supply 500 mA max. @ 18 VDC
Power consumption 1200 mA @ 19 VDC (no load)
Working temperature -20 ?C ~ +50 ?C
IP protection IP54
Product dimensions (W x D x H) 210 mm x 146 mm x 3.7 mm
Weight 500 g
Unicable II? (dCSS) port specifications
User band (channel) bandwidth 46 MHz, programmable 10 MHz ~ 80 MHz
User band (channel) gain ripple 3 dB max.
User band (channel) frequencies Default Unicable II? dynamic user bands per output port:?
? CH1: 1210MHz EN50607+EN50494 (dCSS+SatCR)???????
? CH2: 1420MHz EN50607+EN50494 (dCSS+SatCR)
? CH3: 1680MHz EN50607+EN50494 (dCSS+SatCR)
? CH4: 2040MHz EN50607+EN50494 (dCSS+SatCR)
? CH5: 985MHz EN50607+EN50494 (dCSS+SatCR)
? CH6: 1050MHz EN50607+EN50494 (dCSS+SatCR)
? CH7: 1115MHz EN50607+EN50494 (dCSS+SatCR)
? CH8: 1275MHz EN50607+EN50494 (dCSS+SatCR)
? CH9: 1340MHz EN50607 (dCSS)
? CH10: 1485MHz EN50607 (dCSS)
? CH11: 1550MHz EN50607 (dCSS)
? CH12: 1615MHz EN50607 (dCSS)
? CH13: 1745MHz EN50607 (dCSS)
? CH14: 1810MHz EN50607 (dCSS)
? CH15: 1875MHz EN50607 (dCSS)
? CH16: 1940MHz EN50607 (dCSS)
? * Unused ports need to be terminated by 75 Ohm DC-blocked terminators -
Add to cartThe IDLU-UST110-CUO1O-32P is a small form factor Unicable2 multiswitch enabling installations with up to 32 satellite receivers over a single cable based on digital channel stacking technology. Digital channel stacking technology applies digital signal processing after wideband Analog to Digital converters (full band capture) to select and reorder transponder channels. Compared with analog channel stacking, which is based on analog frequency translation to fixed frequency slots, the digital channel stacking implementation removes the need of in-band SAW filters, offers a full flexibility of channel selection, supports many more set top boxes through a single coax cable, greatly simplifies installations at subscribers homes all at much lower cost and lower power consumption.
Controlled by the connected receivers over EN50494 or EN50607 protocol, the multiswitch will select the desired transponder channel, convert its frequency to the respective User Band frequency and stack it over the Unicable output ports through Digital to Analog converter (also known as ?Dynamic? mode).
The multiswitch firmware can be configured to deliver a fixed transponder-to-IF frequency mapping (also known as ?Static? mode) and line up to 32 transponders (depending on the bandwidth of the desired transponders) over the Unicable output ports. This allows for an unlimited number of receivers to be connected to the switch making MDU installations substantially cheaper and simpler than ever before. The operation mode – dynamic or static – output power level, channel bandwidth, UB numbers, center frequencies and the functionality of each of the output ports can all be programmed as well.
The multiswitch receives (and cascades) 4 satellite IF bands/polarities (LV, LH, HV and HH) and Terrestrial VHF/UHF signals. Both Unicable and Legacy output ports combines the Terrestrial signal. The Terrestrial signal is not amplified. The multiswitch is powered over the supplied AC/DC adapter and power inserter device allowing greater flexibility in various installation scenarios. The communication protocol between the multiswitch unit and the connected receivers is based on EN50494 and/or EN50607 and can be defined per User Band allowing operators to support installations consisting of both EN50494-only and EN50607 compatible Next Generation PVRs and HGWs.
For Indoor and outdoor installations.
?* Programmer not included, sold separately as an optional accessory.?
Specifications
Inverto IDLU-UST110-CUO1O-32P
Inputs 4 x Satellite IF inputs from Quattro LNB
? 1 x UHF/VHF input from Terrestrial antenna
? ?
Outputs? 4 x loopthrough satellite IF outputs
? 1 x loopthrough terrestrial output
? 1 x Legacy output with combined terrestrial signal.
? 1 x Unicable output with up to 32 User Bands with combined terrestrial signal
? ?
Control Protocol? DiSEqC1.x/DiSEqC2.0, EN50494/EN50607
Inputs frequency range: Satellite? 950 ~ 2150 MHz
Terrestrial 47 ~ 862 MHz
? ?
Loop-through loss: Satellite?? 3 dB max.
Terrestrial 3 dB max.
? ?
Conversion gain: Unicable output??? 25dB min
Legacy universal output -1 to +7 dB
? ?
Output signal level (AGC controlled) Configurable (default -25dBm)
Input power range -50 to -15 dBm
User band (Channel) bandwidth Configurable, 10~80MHz (default 30MHz)
User band (Channel) gain ripple 3 dB max.
User band frequencies (Channels) Configurable;
? Example of 32 User bands: CH0: 1210MHz (EN50494+EN50607)
? CH1: 1420MHz (EN50494+EN50607)
? CH2: 1680MHz (EN50494+EN50607)
? CH3: 2040MHz (EN50494+EN50607)
? CH4: 984MHz (EN50494+EN50607)
? CH5: 1020MHz (EN50494+EN50607)
? CH6: 1056MHz (EN50494+EN50607)
? CH7: 1092MHz (EN50494+EN50607)
? CH8: 1128MHz (EN50607)
? CH9: 1164MHz (EN50607)
? CH10: 1256MHz (EN50607)
? CH11: 1292MHz (EN50607)
? CH12: 1328MHz (EN50607)
? CH13: 1364MHz (EN50607)
? CH14: 1458MHz (EN50607)
? CH15: 1494MHz (EN50607)
? CH16: 1530MHz (EN50607)
? CH17: 1566MHz (EN50607)
? CH18: 1602MHz (EN50607)
? CH19: 1638MHz (EN50607)
? CH20: 1716MHz (EN50607)
? CH21: 1752MHz (EN50607)
? CH22: 1788MHz (EN50607)
? CH23: 1824MHz (EN50607)
? CH25: 1896MHz (EN50607)
? CH26: 1932MHz (EN50607)
? CH27: 1968MHz (EN50607)
? CH28: 2004MHz (EN50607)
? CH29: 2076MHz (EN50607)
? CH30: 2112MHz (EN50607)
? CH31: 2148MHz (EN50607)
RF Isolation: ?
Satellite/Satellite IF 28 dB? min.
Satellite/Terretsrial 28 dB min.
Satellite Channel/Channel (UBs) 28 dB min.
? ?
LO phase noise @1 KHz: -80 max dBc/Hz
? @10 KHz: -92 max dBc/Hz
? @100 KHz: -96 max dBc/Hz
? @1 MHz: -104 max dBc/Hz
? ?
? ?
Integrated phase noise 1.5 degrees max.
Input / Output VSWR 2.5 : 1
Input / Output Impedance 75 ? (F-Type)
Legacy port switching? V/L=>13V/0kHz , V/H=>13V/22kHz
? H/L=>18V/0kHz , H/H>18V/22kHz
LNB power supply 13/18V, max 300mA
DC Power consumption 450mA @13Vdc [max.]
Working Temperature – 20 ~ + 60 ?C
Dimensions 113.50 x 110.50 x 20.80(H x W x D) mm
Reviews
There are no reviews yet.
