Ubiquiti Networks UAP-3 wireless access point 300 Mbit/s Power over Ethernet (PoE)

Ubiquiti
UAP-3 – a set of reliable Ubiquiti access points at an affordable price
A set of three UniFi access points provides the best wireless connectivity.
These solutions are used in various environments all over the world, from
home network structures to advanced corporate deployments.

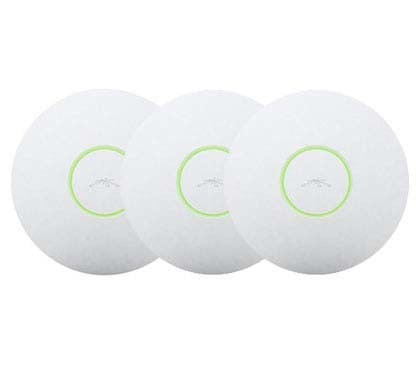

The Ubiquiti UAP-3 set includes three reliable UAP access points. The set
is characterised by a maximum connection speed of 300 Mbit/s. It supports
QoS, VLAN and IEEE 802.1Q. It is equipped with 1 Ethernet LAN (RJ-45) port.
In terms of protection it is WEP, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES
compliant. Its maximum range is 122 metres. It can be used at temperatures
ranging from -10 to 70 degrees Celsius.

Key features
high wireless connection quality
innovative Multi-Lane RF technology
easy installation
intuitive use
modern, simple design
PoE support
scalability

Simple design, advanced capabilities

These access points are standard Ubiquiti devices. They were designed to
provide users with easy installation and management. Thanks to its intuitive
use and dedicated software (without any additional license or subscription
fees) they do not require any special preparations. Their industrial design
make them an ideal fit in any environment. They can be mounted on walls and
ceilings.

Use

The UAP access points work perfectly in homes, hotels, schools and offices,
providing high quality wireless connectivity.

Comparison

  UAP-IW UAP UAP-LR UAP-PRO
2.4 GHz Speed¹ 150 Mbps 300 Mbps 300 Mbps 450 Mbps
5 GHz Speed¹       300 Mbps
Range¹ 25 m (82 ft) 122 m (400 ft) 183 m (600 ft) 122 m (400 ft)
Gigabit Ethernet

Secondary Ethernet Port


Wi-Fi Standards 802.11 b/g/n 802.11 a/b/g/n 802.11 a/b/g/n 802.11
a/b/g/n
2.4 GHz

5 GHz

Simultaneous Dual-Band

Ubiquiti Passive PoE

802.3af PoE
²

Security Lock

¹ Speed and Range values may vary and are based on optimal
environments.

² UniFi switch support only.

Structure example

PoE Switch Compatibility for UAPs and UVCs
AP/Camera Model US-8 US-8-60W US-8-150W US-16-150W US-24-250W US-24-500W US-48-500W US-48-750W
UVC-G3

✓ ✓ ✓ ✓ ✓ ✓
UVC-G3-DOME ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP

✓ ✓ ✓ ✓ ✓ ✓
UAP-LR

✓ ✓ ✓ ✓ ✓ ✓
UAP-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LITE¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LR¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW-PRO² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-HD

✓ ✓ ✓ ✓ ✓ ✓

✓ Compatible with the UniFi switch.

 Requires Instant 802.3af Gigabit PoE Converter:
INS-3AF-I-G
 or INS-3AF-O-G
.

 Requires 802.3at power; switch provides 802.3af only.

Note:

¹ UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016
require the Instant 802.3af Gigabit PoE Converter.

² For the UAP-AC-IW and UAP-AC-IW-PRO PoE passthrough is supported by all
of the switches listed above except for models US-8 and US-8-60W.
