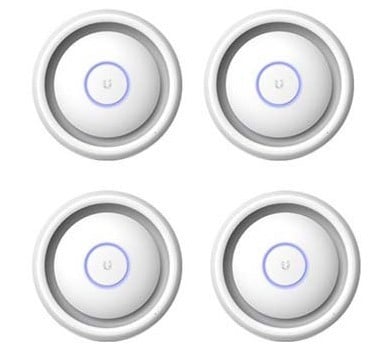

Ubiquiti Networks UAP-AC-EDU-4 wireless access point 1300 Mbit/s White

UAP-AC-EDU-4
– an innovative set of UniFi flagship devices
The UAP-AC-EDU access point set is an ideal option for complex
environments. The devices use 3×3 MIMO technology compatible with 802.3at
PoE+.

This Ubiquiti set includes devices that use the innovative 3×3 MIMO
technology. It integrates the wireless Internet network with the ability to
provide sound. This is why it works perfectly in public spaces. The inbuilt
speaker and multidirectional microphone provide a high quality sound.

A range of capabilities

These products comply with the AC standard in the 2.4 and 5 GHz bands.
Supporting MIMO 3×3 results in 450 Mb/s speed in the 2.4 GHz band and 1300
Mb/s in the 5 GHz band. By creating new ways for the wireless network segment
to develop, Ubiquiti meets the needs of even the most demanding users.

Key features
3×3 MIMO for 2.4 and 5 GHz
high sound quality
easy use with a smartphone
efficiency
scalability
works in network dense environments

Use

The UAP-AC-EDU is an ideal choice for campuses, schools, office buildings,
restaurants, cafés and all places that require reliability and the need to
deliver the signal to multiple devices.

Advanced solutions

Backward compatibility enables easy integration with the existing
structure. The devices boast Ubiquiti’s signature innovations. They are also
visible in the UI sphere, the speaker and microphone are controlled from a
smartphone which results in lower introduction costs. The set does not include
PoE adapters.

Comparison

  UAP-AC-LITE UAP-AC-LR UAP-AC-EDU UAP-AC-PRO UAP-AC-Outdoor
Environment Indoor Indoor Indoor Indoor/Outdoor Outdoor
Simultaneous Dual-Band

2.4 GHz Speed* 300 Mbps 450 Mbps 450 Mbps 450 Mbps 450 Mbps
2.4 GHz MIMO 2×2 3×3 3×3 3×3 3×3
5 GHz Speed*  867 Mbps 867 Mbps 1300 Mbps 1300 Mbps 1300 Mbps
5 GHz MIMO 2×2 2×2 3×3 3×3 3×3
Range* 122 m (400 ft) 183 m (600 ft) 122 m (400 ft) 122 m (400 ft) 183 m
(600 ft)
Secondary Ethernet Port

Loudspeaker

PoE Mode 24V Passive PoE 24V Passive PoE 802.3at PoE+

802.3af PoE

802.3at PoE+

48V Passive POE or UniFi Switch
Ceiling Mount


Wall Mount

Pole Mount

Wireless Uplink

* Speed and Range values may vary and are based on optimal
environments.
