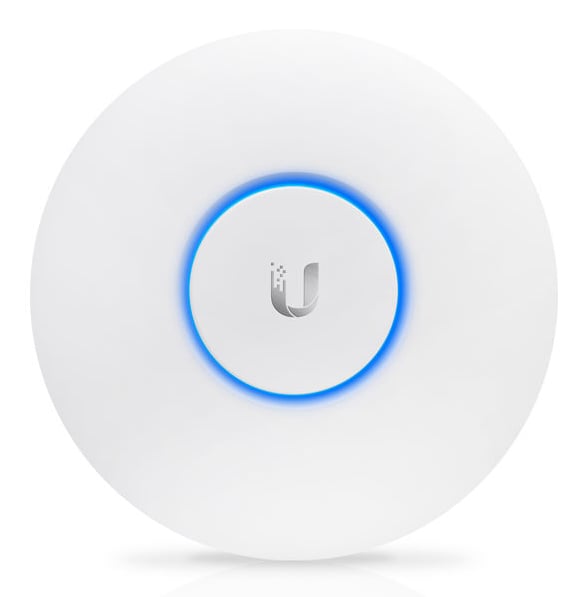

Ubiquiti Networks UAP-AC-LR wireless access point 1000 Mbit/s White (UAP-AC-LR)

UAP-AC-LR
access point – new Ubiquiti quality
The Long Range Access Point from Unifi uses 802.11ac Wi-Fi technology. It
works best in high capacity wireless long range networks.

The Ubiquiti UAP-AC-LR is distinguished by premium features and a design
which allows it to operate over long ranges. The UAP-AC-LR uses a MIMO
antenna that works on the 2.4 GHz band in the 3×3 standard, which allows for
the achievement of transfer speeds of up to 450 Mbps. Strong antennas result
in an increased range of up to 183 m for this Long Range (LR) device.

A range of capabilities

The device is perfect for introducing high capacity, long range wireless
networks. It can work simultaneously in the 2.4 and 5 GHz band. This flagship
series UniFi device is equipped with one LAN port.

Use

The device is distinguished by signature Ubiquiti design. All of the
features are included in a small, compact case which makes it fit into varied
environments. It works perfectly in efficient, long range wireless
networks.

Additional Product Notes
Long range (183 m)
Works inside buildings
Innovative antenna
24V Passive PoE
Optimal RF capacity
Easy installation
Comparison
UAP-AC-LITE UAP-AC-LR UAP-AC-EDU UAP-AC-PRO UAP-AC-Outdoor
Environment Indoor Indoor Indoor Indoor/Outdoor Outdoor
Simultaneous Dual-Band
2.4 GHz Speed* 300 Mbps 450 Mbps 450 Mbps 450 Mbps 450 Mbps
2.4 GHz MIMO 2×2 3×3 3×3 3×3 3×3
5 GHz Speed* 867 Mbps 867 Mbps 1300 Mbps 1300 Mbps 1300 Mbps
5 GHz MIMO 2×2 2×2 3×3 3×3 3×3
Range* 122 m (400 ft) 183 m (600 ft) 122 m (400 ft) 122 m (400 ft) 183 m
(600 ft)
Secondary Ethernet Port
Loudspeaker
PoE Mode 24V Passive PoE 24V Passive PoE 802.3at PoE+ 802.3af PoE, 802.3at
PoE+ 48V Passive POE or UniFi Switch
Ceiling Mount
Wall Mount
Pole Mount
Wireless Uplink
