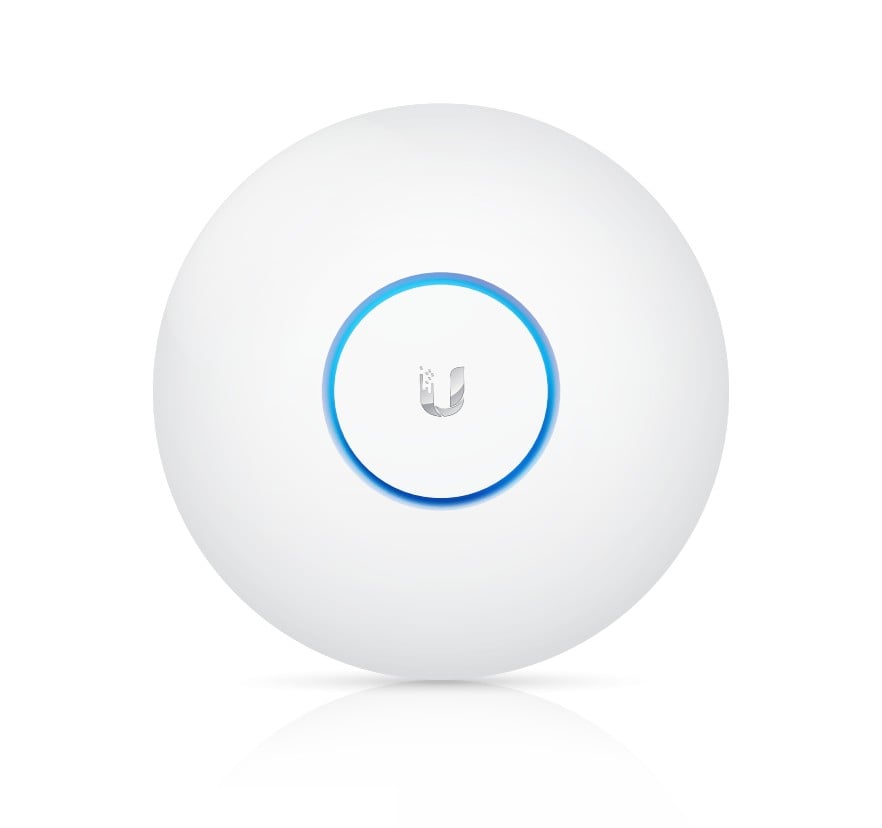

Ubiquiti Networks UAP-PRO wireless access point 1000 Mbit/s White Power over Ethernet (PoE)

UAP-Pro –
advanced capacity, latest technologies
The UniFi UAP-Pro access device is based on Wi-Fi 802.11 a/b/g/n
technology. It is distinguished by an industrial, simple design and
functionalities adapted to environments that require the most efficient
wireless networks.

As a part of the UniFi reliable product series the UAP-Pro is a stable,
reliable device. The device works perfectly both in domestic and corporate
environments. It uses innovative management solutions to offer a variety of
capabilities.

Perfect parameters

The device works on two bands – 5 GHz (2×2 MIMO up to 300 Mbps) and 2.4 GHz
(3×3 MIMO up to 450 Mbps). It enables dual-band mode work. Its power is 30
dBm. Its range is 120 metres. The device is equipped with two Gigabit
Ethernet ports. Powered by PoE.

Key features
maximum capacity
durable construction allows for both inside and outside work
scalable
modern design

Use

Users chose the UAP-Pro not only because of its vast capabilities but also
the compact, aesthetic design and an easy, intuitive installation (on a wall
or a ceiling). The device is distinguished by its versatility which allows it
to work perfectly in various environments, e.g. offices, hotels, internet
cafés, student dormitories as well as houses.

Comparison


  UAP-IW UAP UAP-LR UAP-PRO
2.4 GHz Speed¹ 150 Mbps 300 Mbps 300 Mbps 450 Mbps
5 GHz Speed¹       300 Mbps
Range¹ 25 m (82 ft) 122 m (400 ft) 183 m (600 ft) 122 m (400 ft)
Gigabit Ethernet

Secondary Ethernet Port


Wi-Fi Standards 802.11 b/g/n 802.11 a/b/g/n 802.11 a/b/g/n 802.11
a/b/g/n
2.4 GHz

5 GHz

Simultaneous Dual-Band

Ubiquiti Passive PoE

802.3af PoE
²

Security Lock

¹ Speed and Range values may vary and are based on optimal
environments.

² UniFi switch support only.

Structure example
See video

PoE Switch Compatibility for UAPs and UVCs
AP/Camera
Model US-8 US-8-60W US-8-150W US-16-150W US-24-250W US-24-500W US-48-500W US-48-750W
UVC-G3

✓ ✓ ✓ ✓ ✓ ✓
UVC-G3-DOME ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP

✓ ✓ ✓ ✓ ✓ ✓
UAP-LR

✓ ✓ ✓ ✓ ✓ ✓
UAP-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LITE¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LR¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW-PRO² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-HD

✓ ✓ ✓ ✓ ✓ ✓

✓ Compatible with the UniFi switch.

 Requires Instant 802.3af Gigabit PoE Converter: INS-3AF-I-G
 or INS-3AF-O-G
.

 Requires 802.3at power; switch provides 802.3af only.

Note:

¹ UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016
require the Instant 802.3af Gigabit PoE Converter.

² For the UAP-AC-IW and UAP-AC-IW-PRO PoE passthrough is supported by all
of the switches listed above except for models US-8 and US-8-60W.

Manufacturer’s content

 Read more in the manufacturer’s documentation

 Read the manual

Specifications
