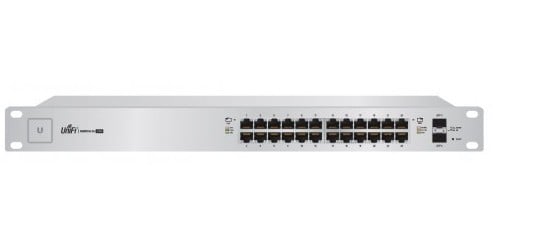

Ubiquiti Networks UniFi US-24-500W network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Ubiquiti
US-24-500W – high quality at an affordable price
The Ubiquiti US-24-500W is a reliable UniFi solution which provides high
capacity, PoE+ support and an intelligent switching system for expanding
networks.

Available as a part of the Ubiquiti UniFi family, the US-24-500W skilfully
combines high quality with a good price, providing PoE+ support and an
intelligent switching system for dynamically expanding networks. The device
is fully manageable.

Functionality

The switch is equipped with 24 Gigabit Ethernet ports and 2 SFP ports. It
supports IEEE 802.3af and IEEE 802.3at communication standards. Its switching
capacity is 52 Gbit/s. It can be mounted in a rack. It is equipped with LEDs
and is CE, FCC and IC certified. The switch supports PoE. It can be used at
temperatures ranging from -5 to 40 degrees Celsius and relative humidity of
up to 95%.

Key features
advanced management options
PoE+ support
very favourable quality to price ratio
effortless integration

Structure example

Comparison


  US-24-250W US-24-500W US-48-500W US-48-750W
Total Non-Blocking Throughput 26 Gbps 26 Gbps 70 Gbps 70 Gbps
SFP+ Ports N/A N/A 2 2
SFP Ports 2 2 2 2
Max. Power Consumption 250W 500W 500W 750W

PoE Switch Compatibility for UAPs and UVCs
AP/Camera
Model US-8 US-8-60W US-8-150W US-16-150W US-24-250W US-24-500W US-48-500W US-48-750W
UVC-G3

✓ ✓ ✓ ✓ ✓ ✓
UVC-G3-DOME ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP

✓ ✓ ✓ ✓ ✓ ✓
UAP-LR

✓ ✓ ✓ ✓ ✓ ✓
UAP-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LITE¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LR¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW-PRO² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-HD

✓ ✓ ✓ ✓ ✓ ✓

✓ Compatible with the UniFi switch.

 Requires Instant 802.3af Gigabit PoE Converter:
INS-3AF-I-G
 or INS-3AF-O-G
.

 Requires 802.3at power; switch provides 802.3af only.

Note:

¹ UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016
require the Instant 802.3af Gigabit PoE Converter.

² For the UAP-AC-IW and UAP-AC-IW-PRO PoE passthrough is supported by all
of the switches listed above except for models US-8 and US-8-60W.

Manufacturer’s content

 Read more in the manufacturer’s documentation

 Read the manual

Specifications
