Ubiquiti UAP-LR Networks Enterprise AP-LR UniFi 300 Mbit/s Power over Ethernet (PoE)

UAP-LR –
long distance UniFi access point
The UniFi device series boasts perfect parameters, reliable use and modern
design. The UAP-LR access point bears all the signs of hallmark Ubiquiti
products. It works perfectly in environments that require high capacity
wireless networks.

The Ubiquiti UniFi UAP-LR is an easy to use access point that works in the
2.4 GHz band. The device is characterised by a maximum connection speed of
300 Mbit/s. It uses two antennas and is CE, FCC and IC certified.

Unique design

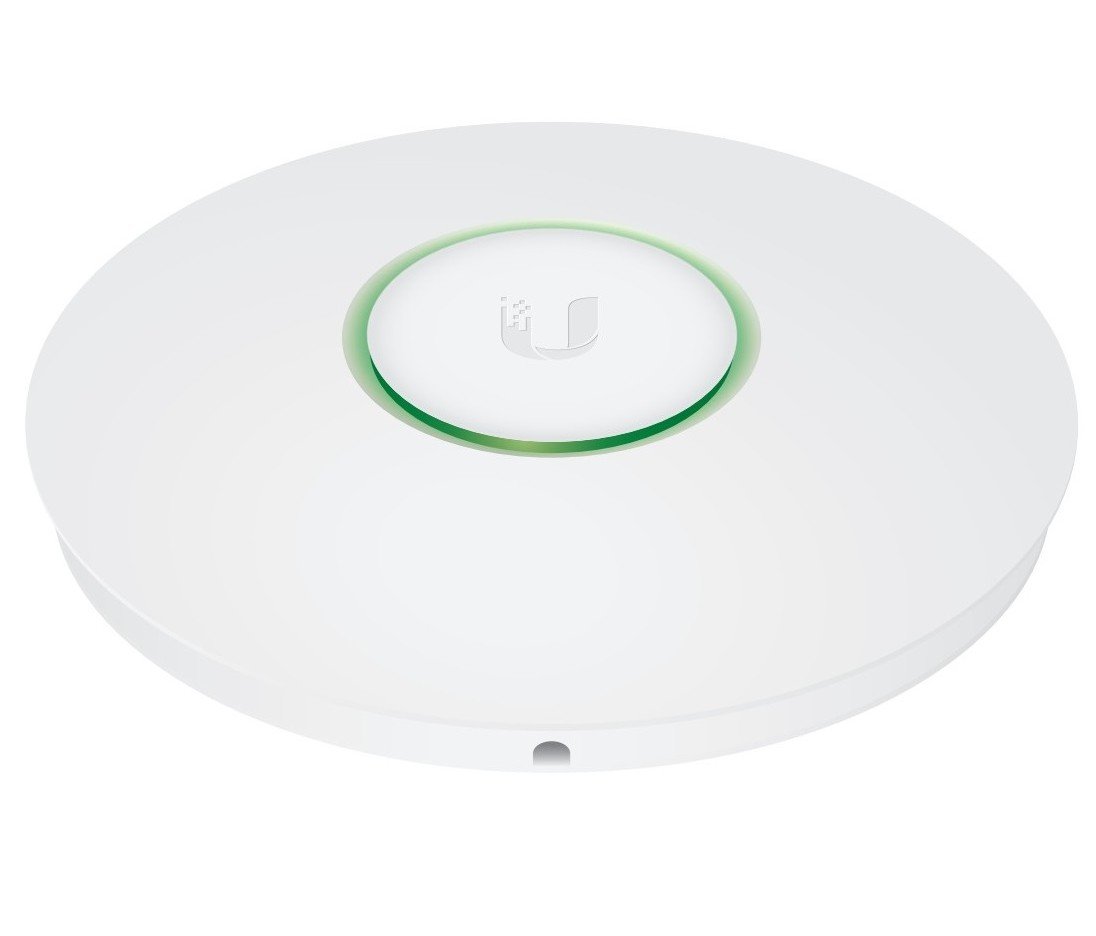

 The UAP-LR access point is distinguished by its unique design. Users
value the device because of its minimalist and compact form which does not
stand out from the rest of the interior and can be used in various
environments. The device can be mounted on a wall or a ceiling. The LED ring
facilitates the installation and configuration process.

Key features
superior range of up to 183 m
dual band technology support
plug&play installation
intuitive configuration and surveillance
can be mounted on a wall or ceiling
industrial design
scalability

Software

The UniFi Wi-Fi Enterprise System enables configuration from a web browser.
The software does not generate any additional license or support fees. It
complies with IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE
802.1Q, IEEE 802.3 and IEEE 802.3u standards.

Use

The solution is intended for various environments. Because of its long
range it works perfectly in complex structures such as campuses, developed
conference halls, malls, parks, etc.

Structure example

Comparison


  UAP-IW UAP UAP-LR UAP-PRO
2.4 GHz Speed¹ 150 Mbps 300 Mbps 300 Mbps 450 Mbps
5 GHz Speed¹       300 Mbps
Range¹ 25 m (82 ft) 122 m (400 ft) 183 m (600 ft) 122 m (400 ft)
Gigabit Ethernet

Secondary Ethernet Port


Wi-Fi Standards 802.11 b/g/n 802.11 a/b/g/n 802.11 a/b/g/n 802.11
a/b/g/n
2.4 GHz

5 GHz

Simultaneous Dual-Band

Ubiquiti Passive PoE

802.3af PoE
²

Security Lock

¹ Speed and Range values may vary and are based on optimal
environments.

² UniFi switch support only.

See video

PoE Switch Compatibility for UAPs and UVCs
AP/Camera Model US-8 US-8-60W US-8-150W US-16-150W US-24-250W US-24-500W US-48-500W US-48-750W
UVC-G3

✓ ✓ ✓ ✓ ✓ ✓
UVC-G3-DOME ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP

✓ ✓ ✓ ✓ ✓ ✓
UAP-LR

✓ ✓ ✓ ✓ ✓ ✓
UAP-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LITE¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LR¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW-PRO² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-HD

✓ ✓ ✓ ✓ ✓ ✓

✓ Compatible with the UniFi switch.

 Requires Instant 802.3af Gigabit PoE Converter:
INS-3AF-I-G
 or INS-3AF-O-G
.

 Requires 802.3at power; switch provides 802.3af only.

Note:

¹ UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016
require the Instant 802.3af Gigabit PoE Converter.

² For the UAP-AC-IW and UAP-AC-IW-PRO PoE passthrough is supported by all
of the switches listed above except for models US-8 and US-8-60W.

Manufacturer’s content

 Read more in the manufacturer’s documentation

 Read the manual

Specifications
