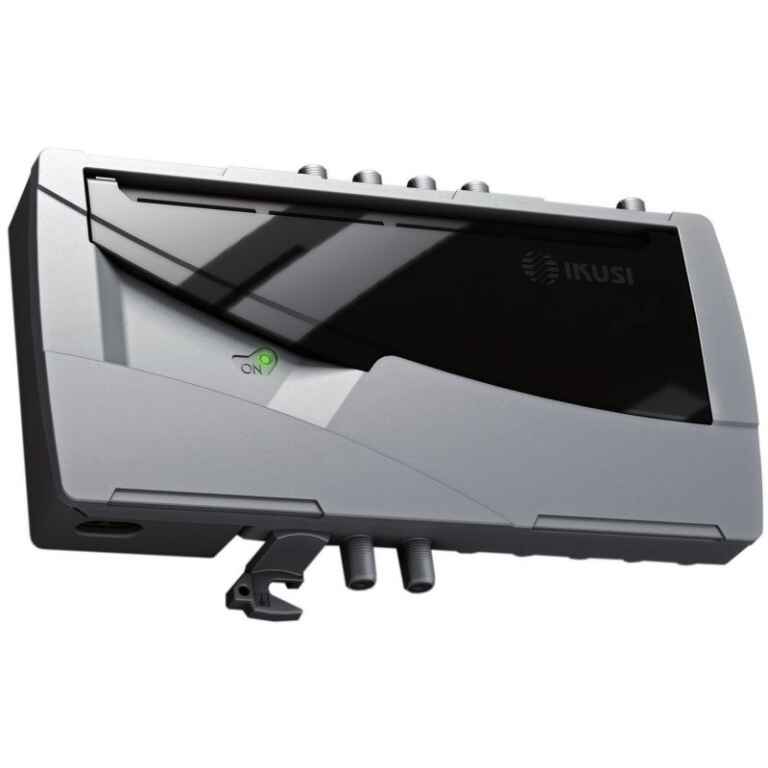

Ikusi NBS-895-C48 Amplification centre 4 TV+1 SAT
KSh31,834.00
This model replaces the Ikusi NBS-895 (ref. Ikusi-3576)
Within the range of broadband amplifiers, we present the 5 models of programmable power stations for terrestrial and satellite signals, each model has a frequency cut adapted to a future evolution of the Digital Dividend.
Features
Adapted to the first and second digital dividend.
High-power broadband amplifiers, for terrestrial and satellite signals in small installations. NBS800 series high-power broadband amplifiers, NBS600 series mid-power broadband amplifiers.
Interstage input attenuators.
Powered by switching power supply, in removable box.
Power passing to input.
Zamak housing with protective cover for adjustment potentiometers.
F Connectors. Wall fixing and indoor mounting. Grounding terminal. ** Compatible with UNICABLE TM.
Specifications
Model (Ref.) NBS895-C48
EAN Code 8435136435761
Inputs
5
BI/FM – BIII/DAB -2xUHF – FI SAT
Frequency range MHz************
BI/FM: 45-112
BIII/DAB: 174-240**
2xUHF: 470-694
FI-SAT: 950-2400
Gain dB******
BI/FM: 42
BIII/DAB: 42**
2xUHF: 45**
FI-SAT: 40
Gain adjustment dB 0 – 18
Slope control range dB**
**FI-SAT : 0 / 6
puente
Response flatness dB******
BI/FM:****2
BIII/DAB:****2
2xUHF:****1.5
FI-SAT: **2
Outputs ** 1
Outputs test dB -30
Output level dB**V******
BI/FM: 118
BIII/DAB: 118**
2xUHF: 118
** FI-SAT: 120
Noise figure dB******
BI/FM: 6**
BIII/DAB: 6**
2xUHF: 8**
FI-SAT: 9
Input/output return loss dB**
BI/FM-BIII/DAB-2xUHF: 10
FI-SAT: 6
Voltage/current preamplifier mast ********
UHF2: 0-12-24 V ** 100 mA
FI SAT: 0-13-18V ** 100 mA
LNB: 0-22 kHz
Mains supply voltage (+10% -15%) VAC 230-240
Consumption W 16
* (DIN-45004B IMD -60 dB)
** (EN 50083-3 IMD -35 dB)
** NBS895 and NBS695 Compatible with UNICABLE TM
