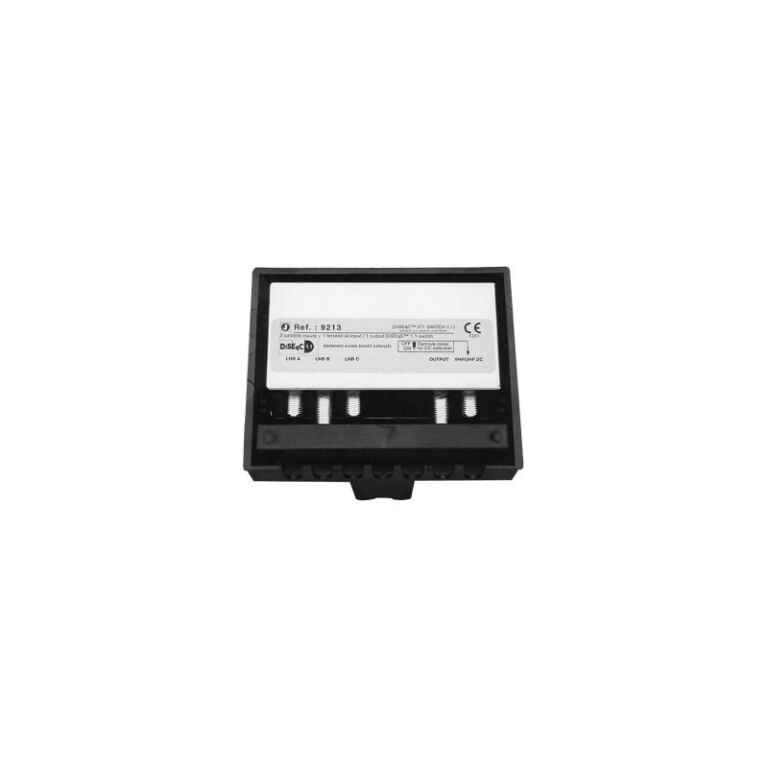

Johansson 9213 Switch Diseqc inputs 3 Sat + 1 Terr
KSh5,070.00
Number of inputs 3 SAT + 1 TERR
Return signal DiSEqC 1.0/1.1
Frequency range Terr.: 40-860 MHz – Sat.:950-2150 MHz
Insertion loss Terr.: 2 dB – Sat./Terr.: 3 dB ** 1 dB
Terr./Sat. Rejection: 30 dB min. – Sat./Terr.: 20 dB min.
Rejection between inputs 15 dB min.
Ground current pass switchable
Consumption 25mA max.
Dimensions 112 x 98 x 56mm
Related products
-
EuroSwitch 9 inputs – 16 outputs Televes
KSh108,408.00Add to cartCompact multiswitch equipped with 9 inputs (one terrestrial and 8 for two satellites, each with its four polarities) and 16 user outputs.
-
EuroSwitch 17 inputs – 24 outputs Televes
KSh366,388.00Add to cartCompact multiswitch equipped with 17 inputs (one terrestrial and 16 for four satellites, each with its four polarities) and 24 user outputs.
Thanks to its great compactness and its optimized electronic design, it presents very low through and tap losses. This allows to reduce the number of amplifiers needed in the cascade and to obtain a better balanced signal in the users, even in large collective installations.
Can be used as a terminal (star topology) or as a cascade by using a simple switch. In addition, it incorporates a second switch that actives the TForce technology, which automatically adjusts the terrestrial signal and keep it constant despite variations in the reception.
Highlights
Very compact in dimensions and weight, even in models with high number of users
Very low through and tap losses
Wide 12-18V power supply range, making it compatible with most existing systems
Equipped with the TForce technology, the terrestrial output level is automatically adjusted (TERR. AMP. ACTIVE) to the optimal level
Great isolation between inputs and outputs
100% european design, quality, and manufacturing
Main features
High shielding: A class
Input and output colour identification
Low consumption under normal conditions. In addition, ECO mode reduces consumption as the number of connected users decreases
Versatile: selector switch to shift between cascade and terminal modes
Two powering options: From the power supply, or from the cascade through the satellite inputs or outputs
Current circulation between all inputs and cascades
Specifications
Type ** 17x17x24
Frequency range MHz SAT 950 ** 2200 / 2400
RF 120 ** 862
Input level dB**V SAT 65 … 112
RF 80 … 110
Through losses dB SAT <3 ... 4.5/5,5 RF <4,5 Tap losses dB SAT 2 ... 7 RF Active 2 Pasive 34 Output level dB**V 10 Ch**s DTT 78 Isolation dB Trunk > 50
Users > 30
Powering V ** 12 – 18
Max. consumption mA PSU1 Active 115
Pasive 5
Receiver 85
Operating temperature **C ** **5**.+45
Protection level IP ** IP20 -
Add to cart13x and 17x multiswitches range with 24 outputs with available through outputs to connect**several multiswitches in cascade configuration and therefore**extend the number of users.
-
EuroSwitch amplifier 17 inputs 27/31dB Televes
KSh108,408.00Add to cartCompact amplifier equipped with 17 inputs (one terrestrial and the four polarities of four satellites) that allows increasing the number of users in the installation while optimizing the signal received by each of them. Around 27 dB and 31 dB amplification in terrestrial and satellite respectively.
Highlights
Very compact in dimensions and weight
High output level
Switch to supply power to the terrestrial trunk line (PWR TERR), allowing to power headend installed elements such as intelligent antennas or amplifiers
Gain (20 dB) and slope (12 dB) individual adjustment
Wide 12-18V power supply range, making it compatible with most existing systems
100% european design, quality, and manufacturing
Main features
Made of zamak
Input and output colour identification
Two powering options: From the power supply, or from the cascade through the satellite inputs or outputs
Low power consumption
Specifications
Type ** 17×17
Frequency range MHz SAT 950 ** 2400
RF ** 88 ** 862
Output level dB**V SAT EN50083-3
IM35dBc 118
RF DIN 45004-B 114
Gain dB SAT 31
RF 27
Regulation 0 … 20
Slope 0 … 12
Isolation dB ** >30
Powering V ** 12 … 18
Max. total consumption A @12 -18V 1,15 – 0,765
Max. power consumption W ** 13,8
Temperatura Range **C ** **5**.+45
Protection level IP ** IP20
