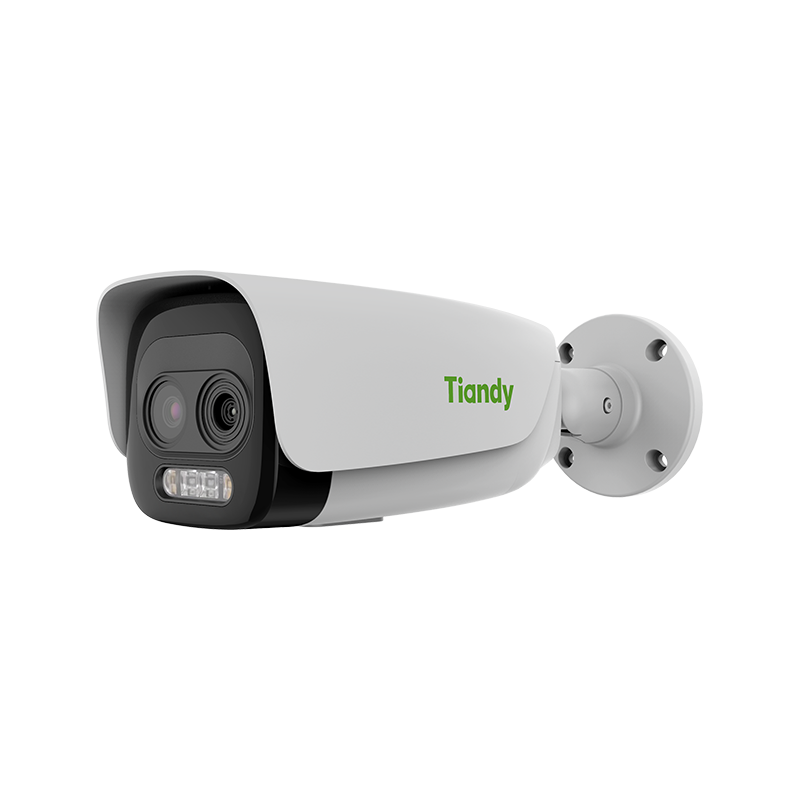

Tiandy 5MP Fixed Thermal Bullet Camera

Product
Description
Camera

Image Sensor 1/2.7″CMOS
Min.
Illumination Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto Switch (ICR)
Smart IR Yes
WDR 120dB
S/N >39dB
Angle Adjustment 0~360°(P); 0~90°(T); 0~360°(R)
Lens

Lens Type Fixed focal lens
Focal Length Thermal:7mm;Optical:6mm
Lens Mount M12
Aperture Range Thermal:F1.2;Optical:F1.6
Aperture Type Fixed
Field of View Thermal:26°(H);Optical:53.8°(H); Thermal
:20°(V);Optical:29.3°(V); Thermal:32.8°(D);Optical:61.3°(D)
DORI Distance Detect:120m
Observe:47.6m
Recognize:24m
Identify:12m
Illuminator

IR LEDs 2
IR Distance Up to 50m
Wavelength 850nm
White LEDs 2
Whitelight Distance 15m
Compression Standard

Video Compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate 32k~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8kHz/32kHz/48kHz

Max. Resolution Optical:
2880×1620@30fps
Thermal:
1280×720@25fps
Main Stream Optical:
PAL:25fps(2880×1620, 2688×1520, 2560×1440, 2304×1296)
NTSC:30fps(2880×1620, 2688×1520, 2560×1440, 2304×1296)
Thermal:
PAL:25fps(1280×720, 704×576, 640×480, 352×288)
NTSC:25fps(1280×720, 704×480, 640×480, 352×240)
Sub Stream Optical:
PAL:25fps(704×576, 704×288, 640×360, 352×288)
NTSC:30fps(704×480, 704×240, 640×360, 352×240)
Thermal:
PAL:25fps(704×576, 640×480, 352×288)
PAL:25fps(704×480, 640×480, 352×240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight
Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
ROI 8 rectangular static areas
OSD Optical:
Overlay of additional characters in 5 regions, 2 lines, with a maximum of
127 characters or 42 Chinese characters per region
Thermal:
Overlay of additional characters in 1 area, 2 lines, with a maximum of 127
characters or 42 Chinese characters per area; 16*16/32*32/48*48/64*64/96*96;
Vector/Lattice
Picture Overlay 1*200×200 size BMP 24 color bit image overlay
Privacy Mask 4 black static areas
Defog Yes
Feature

General Alarm Motion Detection; Mask Alarm; Alarm Input
Exceptions Alarm Voltage Alarm; Disk Full; Disk R/W Error; IP Address
Conflict; MAC Address Conflict; FTP Server Exception ; Network
Disconnection
Linkage Method Send Email; Trigger Sound; Trigger Warmlight; Trigger
Recording; Trigger Capture; Notify Surveillance Center; Alarm Output
Video Analytics Human/Vehicle Classification; Tripwire; Double Tripwire;
Perimeter; Video Abnormal; Audio Abnormal
Rules of Behavior Analyse In 1 Scene 8
Network

ANR Yes
Protocols RTSP; RTMP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; IGMP; SNMP
v1v2v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1X; QoS;
IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; RTCP; ARP; SRTP; FTP; SFTP
System Compatibility ONVIF(Profile S/T/G/M) ; SDK; CGI;
Milestone
Remote Connection ?7
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Interface

Communication Interface 1×RJ-45 (10/100 Base-T)
Audio I/O 1×input, two-core , max. input amplitude:3.3 Vpp, input
impedance:1 K?, interface type:non-equilibrium; 1×output, two-core, max.
output amplitude:3.3 Vpp, output impedance:100 ?, interface type:
non-equilibrium
Alarm I/O 2×input,TTL,3mA,3.3VDC; 1×output,relay,1A,24VDC
Built-in Mic 1×Built-in Mic
Built-in Speaker 1×Built-in Loudspeaker
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 512GB
RTC Yes
Additional Interfaces RS-485
General

Web Client Language 19 languages
Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature -40?~65?(-40?~149?)
Operating Humidity ?95%RH
Storage Temperature -40?~65?(-40?~149?)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 9W; PoE:IEEE 802.3at,Max. 10W
Protection Surge4000V; ESD6000V; IP67
Boundary Dimensions 330(L)114(W)107(H)mm
Package Dimensions 360(L)150(W)170(H)mm
GrossWeight 1.85kg
