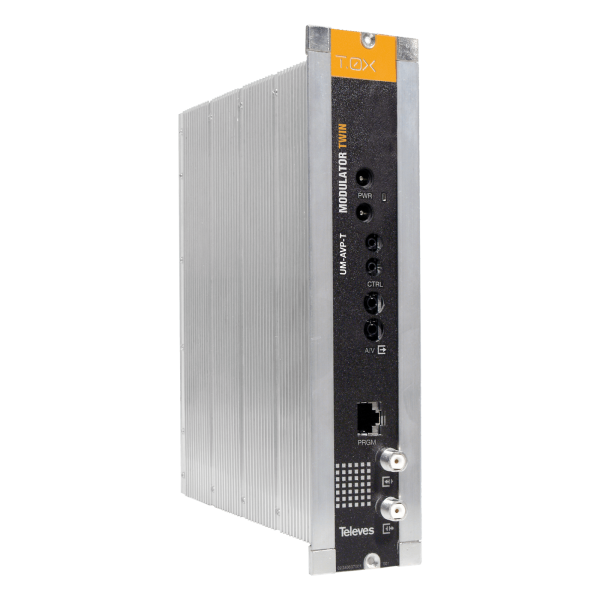

Twin Analog Modulator T.0X A/V**- PAL Stereo Televes 580

The modulator has two A/V inputs (A and B) with which two independent output channels are generated. Generate 2 analog channels from 2 audio / video signals.

The audio and video inputs (A and B) are modulated, according to the standard, in an F.I. 38.9 MHz. The F.I. Modulated is converted to any channel between the output frequencies 46 – 862 MHz and after filtered is amplified to obtain the specified output level.

Control of the modulator from a PC is also possible as explained in the instruction manual.

Televes Twin Analog Modulator T.0X?serie A/V – PAL Stereo
What are the main characteristics of the Televes 5806 analog modulator?
Single-Sideband output
High C/N
Excellent flatness
Can be remotely controlled using CDC (Headend control)
Video and audio parameter configuration for multiple standard compliance
9 channel tables
Test signal generator
What technical specifications does the Televes 5806 analog modulator have?
A/V INPUT Video Input frequency range MHz 0,00005…5
Modulation depth % 72,5 – 90
S/N Ratio dB > 52
Input level Vpp@75 ? 1
Differential gain % < 4 Differential phase ? < 4 Lum/Chrom delay ns < 100 Flatness dB < 1 Audio Input frequency range MHz 0,04...15 Input level dBm -15...7 Impedance ? 10.000 Pre-emphasis ?s 50 Input level deviation dBm -7...6 Modulation deviation kHz ?11,5 - ?45 Distortion % < 1 Flatness dB ? 1 OUTPUT RF Output frequency range MHz 47...862 Frequency steps kHz 250 Output level (max. typ.) dB?V (dBmV) 80 ? 5 (20 ? 5) Regulation margin dB > 15
C/N@5MHz > 56
Output loop-through losses ? 1,5
Output return losses (typ.) 14 typ.
Impedance ? 75
GENERAL Powering voltage Vdc 24
Consumption mA 300
Protection index IP 20
