Alcad AI-240 Indoor amplifier 2 outputs lte800
KSh8,996.00Add to cartAlcad AI-240 – Serie 904: Indoor amplifier 2 outputs lte800.
Broadband apartment amplifier for terrestrial TV, with built-in power supply unit. It amplifies the VHF and UHF bands separately and has an independent gain control for each band. It incorporates a filter to reject the LTE800 band. It includes two symmetrical outputs to make the distribution to two or more televisions.
Applications
Designed to enlarge analogue and digital terrestrial TV installations within an apartment or house. It amplifies the TV signal so a distribution with several new outlets can be made from the signal of one TV outlet or from the coaxial cable entering the house. The levels are easily adjusted by means of the two gain controls. The amplifier prevents possible interferences generated by devices operating in the LTE800 band.
Characteristics
Made from ABS plastic, with an internal zamak chassis which gives maximum shielding. The power supply unit is insulated from the rest of the high frequency circuit, complying with the safety regulations for the installer and the user. Fixed to the wall by means of the supplied screws and wall-plugs. F type connectors.
Downloads
Technical specification
Technical specification
Manuals
– pdf 105.84 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Systems pdf 65.95 KB
Technical specifications
-
Alcad AI-400 Indoor amplifier 4 outputs
KSh11,012.00Add to cartAlcad AI-400 – Serie 904: Indoor amplifier 4 outputs.
Broadband apartment amplifier for terrestrial TV, with built-in power supply unit. It amplifies the VHF and UHF bands separately and has an independent gain control for each band. It includes four outputs to make the distribution to 4 or more televisions. The outputs are equal or unbalanced.
Applications
Designed to enlarge analogue and digital terrestrial TV installations within an apartment or house. It amplifies the TV signal so a distribution with several new outlets can be made from the signal of one TV outlet or from the coaxial cable entering the house. The levels are easily adjusted by means of the two gain controls.
Characteristics
Made from ABS plastic, with an internal zamak chassis which gives maximum shielding. The power supply unit is insulated from the rest of the high frequency circuit, complying with the safety regulations for the installer and the user. Fixed to the wall by means of the supplied screws and wall-plugs. F type connectors.
Downloads
Technical specification
Technical specification
Manuals
– pdf 198.58 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Alcad AI-414 Indoor amp tv+if 4 outputs dc path
KSh14,822.00Add to cartAlcad AI-414 – Serie 904: Indoor amp tv+if 4 outputs dc path.
Broadband apartment amplifier for terrestrial and satellite TV for installation with multiswitches, with 4 inputs and built-in powern supply unit. It amplifies the terrestrial TV and IF satellite bands separately. It has an independent gain control for each band and a fixed slope on the FI band.
Applications
Designed to enlarge analogue and digital terrestrial and satellite TV installations within an apartment or house. It amplifies the terrestrial and satellite TV signals from the output of the multiswitch so a distribution with TV-SAT outlets can be made. The levels are easily adjusted by means of the two built-in gain controls.
Characteristics
Made from ABS plastic, with an internal zamak chassis which gives maximum shielding. The power supply unit is insulated from the rest of the high frequency circuit. Fixed to the wall by means of the supplied screws and wall-plugs. F type connectors.
Downloads
Technical specification
Technical specification
Manuals
– pdf 330.82 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Alcad AS-125 Power supply 24 vdc 1.7 a (230/240 vac)
KSh20,244.00Add to cartAlcad AS-125 – Serie 905: Power supply 24 vdc 1.7 a (230/240 vac).
Compact switching power supply units which permits the installation of up to 18 modules on the support frame.
Applications
Necessary to supply the amplification modules of the equipment. The number of modules which it can feed varies according to the consumption of the modules and of the consumption of the LNBs in the case of SAT amplifier modules.18 modules can be fed in the case of monochannel amplifiers.
Characteristics
Protected against overloads and short-circuits. Made from an aluminium profile and alvanised plate. It includes a protection fuse which the installer can access. Supplied with power cable with faston connector for IEC connector equipment.
Downloads
Technical specification
Technical specification
Manuals
– pdf 165.67 KB
– pdf 165.54 KB
– pdf 624.67 KB
– pdf 204.95 KB
– pdf 393.23 KB
– pdf 201.67 KB
– pdf 201.66 KB
– pdf 327.17 KB
– pdf 515.52 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Add to cartAlcad CA-220 – Serie 904: Broadband amplifier tv+if 4 out (24 vdc).
TV and SAT broadband head-end amplifier. They independently amplify the terrestrial TV and satellite IF bands, distribute both bands through their four outputs continuously. The built-in power supply unit can automatically feed a preamplifier. The LNB is fed from the SAT receiver, through the amplifier.
Applications
Designed for use in individual, analogue and digital, terrestrial and satellite TV installations, with several TV outlets. Used as a single piece of equipment to treat all terrestrial and satellite TV signals, greatly simplifying the installation. An individual satellite receiver can be connected to any of the outlets of the building.
Characteristics
Made from ABS plastic with an internal chassis of zamak giving maximum shielding. F type connectors in nickel-plated iron which affords a connection of minimum mismatching and maximum shielding. The power supply unit is insulated from the rest of the high frequency circuit, complying with safety standards for both the installer and the user.
Downloads
Technical specification
Technical specification
Manuals
– pdf 300.03 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Alcad CA-440 Amplifier uhf-uhf-biii/dab lte
KSh27,730.00Add to cartAlcad CA-440 – Serie 904: Amplifier uhf-uhf-biii/dab lte.
Broadband head-end amplifiers with three inputs. Built on a compact chassis, they are capable of supplying a signal to a large number of outlets. Available on request in 125 or 240 V~.
Applications
Designed for analogue and digital terrestrial TV installations in medium-sized MATV networks or individual installations. They are used as the head-end amplifier of the installation.
Characteristics
Made from ABS plastic, with an internal zamak chassis of which provides maximum shielding. F type connectors which affords a connection with minimum mismatching and high shielding. Power supply unit insulated from the rest of the high frequency circuit, complying with all safety standards.
Downloads
Technical specification
Technical specification
Manuals
– pdf 159.3 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
-

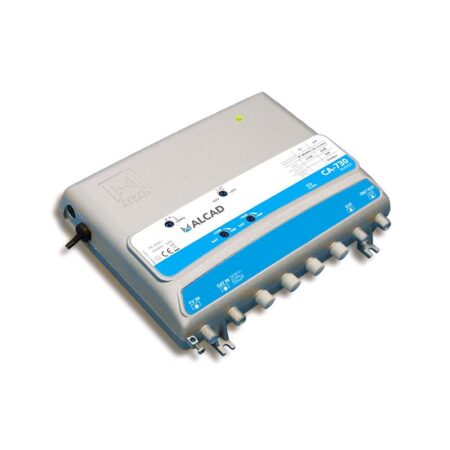

Alcad CA-730 Amplifier if universal
KSh22,648.00Add to cartAlcad CA-730 – Serie 904: Amplifier if universal.
IF satellite broadband amplifier for head-end. It has a voltage switch and 22 KHz tone in order to select the polarity of an individual LNB. The built-in power supply unit has the capacity to feed the LNB. A terrestrial TV input permits the multiplexing of terrestrial and satellite TV bands.
Applications
Designed for medium to large analogue and digital SMATV installations. Used as a head-end amplifier for bouquets which have all their transponders in a single polarity. Adjusted by means of a gain controller and a variable slope control.
Characteristics
Made from zamak and galvanised plate for maximum shielding. Separate housings for the power supply unit and the high frequency circuit. Input and output connectors on the base to facilitate installation.
Downloads
Technical specification
Technical specification
Manuals
– pdf 188.97 KB
CA-730 Manual pdf 690.08 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – CA-730 20210716 pdf 70.62 KB
Technical specifications
-

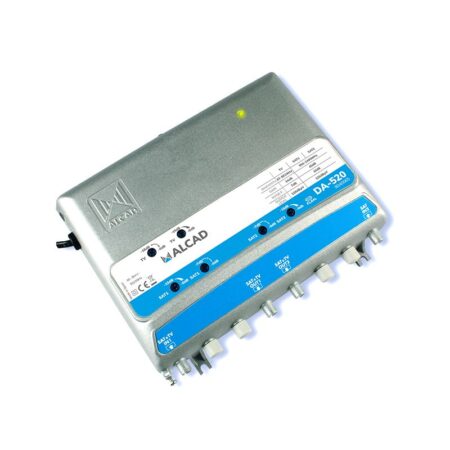

Alcad DA-520 Distribution amplifier double tv/sat
KSh54,572.00Add to cartAlcad DA-520 – Serie 904: Distribution amplifier double tv/sat.
Broadband distribution amplifier for terrestrial TV and satellite IF. One part of the amplifier amplifies the IF ignal while rejecting the TV signals. The other part of the amplifier amplifies the TV and IF signals, distributing the TV signal to the two outputs. Includes a gain control on each TV and SAT band, a variable equaliser on the TV band and a switchable equaliser on the SAT band. Fed by a built-in switching power supply.
Applications
Designed for SMATV installations with double coaxial cable for distribution. The installation is made with a single amplifier for the two distribution cables.
Characteristics
Made from zamak and galvanised plate for maximum shielding. Separate housings for the power supply unit and the high frequency circuit. F-type connectors, located on the lower part to make installation easier.
Downloads
Technical specification
Technical specification
Manuals
DA-520 Manual pdf 239.14 KB
2632101.03.pdf pdf 207.4 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – DA-520 20210716 pdf 70.6 KB
Technical specifications
-
Alcad DA-720 Distribution ampl uhf+vhf/bs
KSh43,798.00Add to cartAlcad DA-720 – Serie 904: Distribution ampl uhf+vhf/bs.
Broadband distribution amplifier for terrestrial TV. It amplifies the VHF band plus interbands and the UHF band separately. Each band has a gain control and a variable equaliser. As they are independent they facilitate level djustment. Fed by a built-in power supply.
Applications
Used as a distribution amplifier in large community installations or cable networks. These installations commonly have long runs of cable which attenuate and unbalance the signal. The channels with higher frequencies attenuate more. The distribution amplifiers compensate this loss with the equaliser and amplify the channels adding as little noise as possible. The separated band amplifiers do not amplify the highest channels of the interband.
Characteristics
Made from zamak and galvanised plate for maximum shielding.Separate housings for the power supply unit and the high frequency circuit. F type connectors, located on the lower part to help with the installation.
Downloads
Technical specification
Technical specification
Manuals
DA-720 Manual pdf 570.97 KB
2610961.pdf pdf 167.23 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – DA-720 20210716 pdf 70.62 KB
Technical specifications
-
Alcad DAM-504 Distribution amplifier 120 db?v
KSh53,768.00Add to cartAlcad DAM-504 – Serie 911: Distribution amplifier 120 db?v.
Broadband distribution amplifier for terrestrial and cable TV with power supply. It amplifies the terrestrial TV band and the return path separately. It has gain control regulator for each band and fixed equalizer in the TV band.
Applications
Designed to extend terrestrial and cable TV installations, analog or digital, in community facilities in return path. The signal levels are easily adjusted thanks to two gain controllers. Especially suitable for outdoor installations.
Characteristics Robust chassis made of aluminum that provides maximum shielding against interference, and protection in outdoor conditions (IP65). Separate housings for the power supply unit and the high frequency circuit. PG11-F type connectors.
Accessories
9080015 MC-204 Male compression F connector for RG-11 coaxial 9080030 MC-304 Male compression F connector for RG-6 coaxial, ?7.0 mm. 9120011 RS-275 F load 75O.
Downloads
Technical specification
Technical specification
Manuals
– pdf 165.87 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Alcad FA-410 Power supply 50 w (230/240 vac)
KSh51,312.00Add to cartAlcad FA-410 – Serie 912: Power supply 50 w (230/240 vac).
Switching power supply, which permits the installation of an amplifier and different modules on the support frame. Power supply with a flat cable of 20 lines for different feed voltages.
Applications
Required for feeding the modules of the equipment.
Characteristics
Protected against power surges, overloads and short-circuits. Zamak chassis with side gills to facilitate proper ventilation. Supplied with power cable.
Downloads
Technical specification
Technical specification
Manuals
– pdf 266.03 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – FA-512 y FA-410 pdf 147.68 KB
Technical specifications
-
Alcad ZF-712 If amplifier, 0/13/18 vdc, 0/22 khz
KSh21,894.00Add to cartAlcad ZF-712 – Serie 905: If amplifier, 0/13/18 vdc, 0/22 khz.
IF broadband amplifier for one polarity which amplifies the IF band from an LNB and mixes the terrestrial TV signal coming from the rest of the equipment. It feeds the LNB with the power voltage and 22 KHz signal required to obtain the desired polarity.
Applications
SMATV installations requiring the distribution of one satellite polarity together with the rest of the terrestrial TV channels. The distribution is made in the terrestrial TV band and the satellite IF band. Especially appropriate for bouquets which have all their transponders in a singe polarity.
Characteristics
This module is compatible with the rest of the range of 905-ZG TV equipment. It allows the distribution of the terrestrial TV and satellite signals in a unified form from a single piece of equipment.
Downloads
Technical specification
Technical specification
Manuals
– pdf 327.17 KB
– pdf 486.69 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – ZF-712 pdf 68.66 KB
Technical specifications
-
Alcad ZG-212 Radio amplifier dab, 50 db
KSh15,678.00Add to cartAlcad ZG-212 – Serie 905: Radio amplifier dab, g= 50 db.
Analogue FM and DAB radio broadband amplifier which amplifies the entire FM or DAB radio band. Amplifies the whole FM or DAB radio band. High gain and output level. The ZG-611 amplifier amplifies the DAB digital radio by groups of channels (which should be specified when ordering). The FM amplifier is also available for OIRT frequencies (when ordering model ZG-611, please specify FM OIRT if required).
Applications
MATV installations that include FM or DAB radio distribution.
Characteristics
This module is compatible with other equipment for TV in the 905- ZG range. It allows distribution of FM and DAB radio and of television signals to be combined using a single piece of equipment. Attenuator by means of active MOSMIC regulator to reduce the noise figure. 30dB multiturn attenuator. Switch to supply power to preamplifiers with protection against short circuits.
Downloads
Technical specification
Technical specification
Manuals
– pdf 201.67 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – ZG-212 pdf 68.66 KB
Technical specifications
-
Alcad ZG-412 Two channel amplifier uhf, 53 db
KSh21,252.00Add to cartAlcad ZG-412 – Serie 905: Two channel amplifier uhf, g=53 db.
Multichannel amplifier for the UHF band designed to work with a group of adjacent channels. Each module permits the amplification and equalisation of two to four channels. The level of the group of channels can be adjusted but not each channel independently. High gain and output level. The initial channel of the group should be specified in the order.
Applications
Large digital and analogue terrestrial MATV installations where adjacent analogue or digital channels exist. Recommended for use in areas of reception where the relation in levels between analogue and digital channels is constant. Normally used to amplify one analogue channel along with several digital channels.
Characteristics
Each module consists of a three-stage input filter, an amplifier and an output filter which is three-stage, the filters are cavities. Filters remain highly stable with variations in temperature. Attenuator using an active MOSMIC regulator reduces the noise figure. 30dB multiturn attenuator. Switch to supply power to preamplifiers with protection against short circuits.
Downloads
Technical specification
Technical specification
Manuals
Manual pdf 204.95 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration ZG-412 pdf 48.63 KB
Technical specifications
