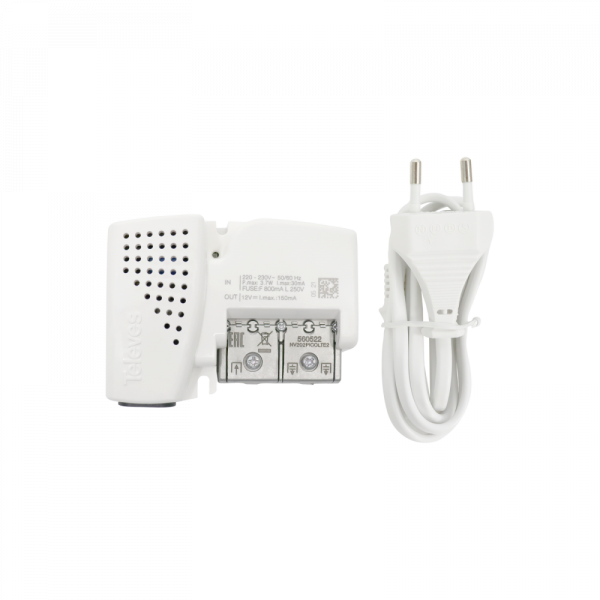

Housing Amplifier 1e/2s Picokom LTE700
Housing Amplifier 1e/2s Picokom LTE700
This home amplifier has 1 input and 2 outputs and is ideal for expanding your home terrestrial television network. Its connection, of the EasyF type, does not need any type of adjustment, it is plug&play, without affecting the quality of the signal.
It consumes much less than a standard amplifier thanks to its integrated high-performance switching power supply.
It has a DC pass-through ON/OFF switch, in case you need to connect preamps or BOSS systems. Its EasyF connection system is very simple and fast, since it is not necessary to perform the connectorization or the threading of the coaxial connectors. Its assembly in three steps makes it innovative, reliable and simple:
1. Unscrew the cap
2. Insert the coaxial cables
3. Close and screw the lid
Technical Specifications of Housing Amplifier 1e/2s Picokom LTE700
?
Outputs
2
Frequency margin
?
MHz
47…400
470…694
Gain
G
dB
10
16
Gain adjustment range
?
Auto 0…20
Auto 0…20
Max.output level
EN 50083 IMD3 (2 tones, -35dB)
Vout
dB?V
105
108
DIN45004B
98
101
2 CH?s VHF DVB-T
91
10 CH?s VHF DVB-T
92
Noise figure
N.F.
dB
4
Power supply/Max.
current inputs
OFF
Vdc/
mA
0/0
ON
12/150
Mains voltage/frequency
?
V~/Hz
220…230 / 50-60
AC power consumption
?
W
3,7
Through current Out -> In
?
mA
–
Protection index
?
IP
20
Operating temperature range
?
?C
-5 … +45
