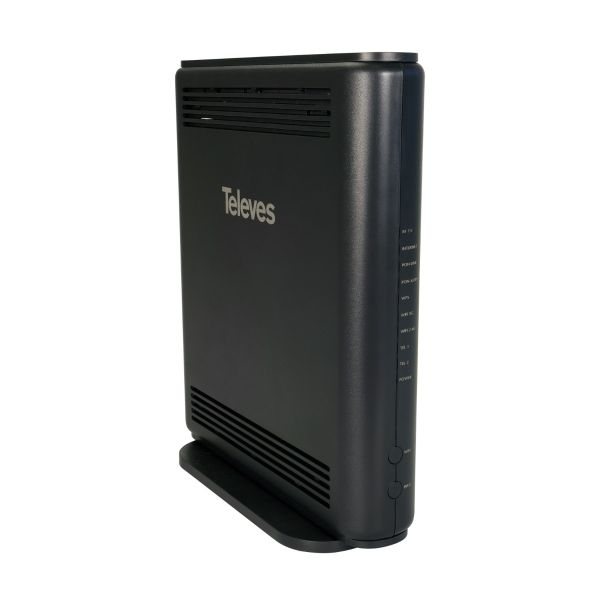

ONT Hospitality WiFi AC Module 4xGB Ethernet + 2xFXS RF Overlay by Televes
Televes Hospitality WiFi AC 4xGB Ethernet + 2xFXS RF Overlay ONT Hospitality module
Looking for a robust and efficient device for your GPON infrastructures** This module is the perfect solution for professionals who require performance and reliability in demanding environments.
This device features 4 Gigabit Ethernet ports and 2 FXS ports, 1 USB port, WiFi and RF overlay . It enables versatile and high-speed connectivity. Its 1.7 GHz 4-core CPU and 4 GB of RAM ensure agile and efficient processing, even under heavy workloads.
This equipment acts as a user terminal, allowing the contracted hospitality services to reach each client correctly. The family of terminals is designed to adapt to different types of installation and to the characteristics of the services deployed. These configurations correspond to different FTTx architectures, such as FTTH, FTTR, FTTB, FTTd, FTTC, among others. The configuration is done remotely, without the subscriber’s intervention.
**
Technical Specifications of the Televes ONT Hospitality WiFi AC 4xGB Ethernet + 2xFXS RF Overlay Module
Type of optical network equipment ? ONT HOSPITALITY WIFI AC
RF Overlay ? And
WiFi Standard ? 802.11 b/g/n (3×3) 2.4 GHz / 802.11 b/g/n/ac (4×4) 2.4/5 GHz
Number of Gigabit Ethernet ports (10/100/1000BaseT) ? 4
Number of FXS ports ? 2
Number of USB ports ? 1
NAT/NAPT ? And
Firewall ? And
VPN passthrough ? And
PPPoE Terminal ? And
OMCI ? And
TR-069 ? And
CLI ? And
WebGUI ? And
Supply voltage Vdc 12
Max current m.a. 3
Max power consumption IN 36
Operating temperature ?C -5 … 50
Relative humidity % 0 … 95
