ICT-2 Double Distributor Mixer 3 Inputs 2xSAT-TDT/2 Output F Televes
ICT mixer with 3 inputs.

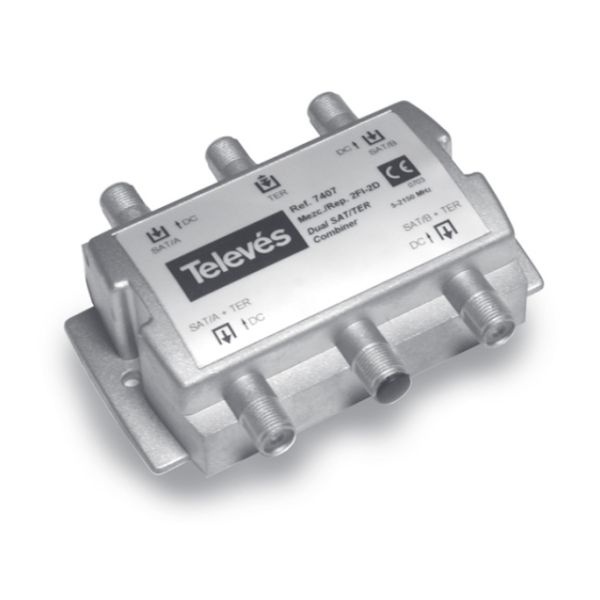

The Televes 740710 mixer can mix and distribute two satellite signals and one terrestrial signal, thanks to its three inputs with female F-type connectors and their two output with female F-type connector.
This Televes article allows us to mix two different signals from 2 different coaxial cables. The particularity of this mixer is that it allows us to mix the signal from one satellite with a TDT signal, and the signal from another satellite with this same TDT signal.
The mixer 740710 allows the passage of the signals included in the frequency range of 5 to 2400 MHz.
Technical Specifications of the ICT Mixer with 3 inputs
The mixer 740710 allows us to mix a TDT signal with one satellite in one output, and that same TDT signal with another different satellite in the other output.
What technical features does the 740710 mixer have?
Zamak chassis.
Output current / input current through the SAT line.
Possibility of using the ref.7452 as a GSM filter, due to its high rejection TV-SAT.
Mast installation of ref. 7452 by safe ref. 4163
Connection “F”.
What technical specifications does the 740710 mixer have?
Mixed Bands TV-FI?
DC step inputs ?2 (FI)
TV insertion losses ?dB? ?<4
Insertion losses FI ?<2
?Rejection TV-FI ?>20
?Dimensions ?mm ?98x75x27
