3-input FM-DAB-UHF interior mixer with DC current passage
Televes 3-way mast 404010 mast

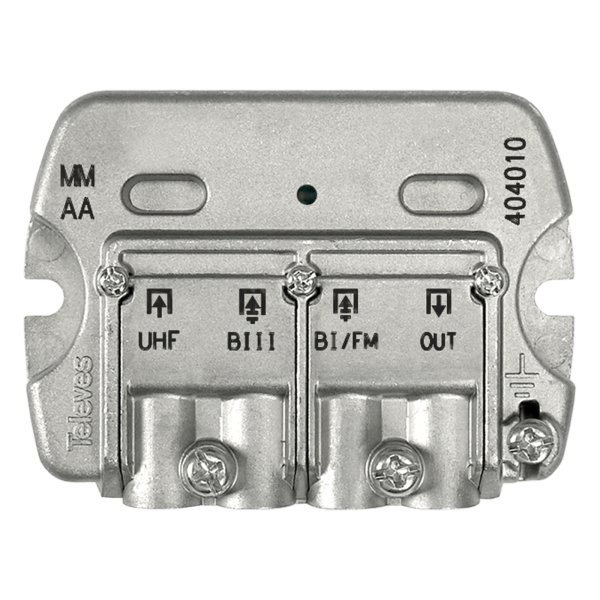

Televes Universal 404010 terrestrial mixer has 3 inputs, FM-DAB-UHF and current passage.
This terrestrial signal mixer allows you to mix in a single coaxial cable the signal received by a TDT antenna, an FM antenna and a DAB antenna.
In addition, the 404010 mixer incorporates an LTE filter to avoid interference with the 4G band.
The mixer 404010 mixes a terrestrial signal received by a TDT antenna, an FM radio signal and a digital radio signal DAB to transmit said signal by a single coaxial cable.
What technical features does the Televes 404010 mixer have?
Band mixer presented in ABS safe for outdoor use.
Connection by easyF flange system.
UHF-FM-DAB inputs.
Inputs with current flow.
Losses of 10 dB
Rejection between 20 dB input.
Step DCmax of 100.
Protection index IP23.
What is the 404010 mixer used for?
A mixer such as Televes 404010 is used to mix the signals from the FM, DAB and terrestrial antenna so as to transmit all the services by a single cable.
Why is current current important?
If we have an active antenna that has a gain amplifier or a mast amplifier, to get the gain that we need in our television, we will need a mixer that allows the passage of current from the power supply, if not the amplifier It will not do its job properly.
