MiniKom EasyF Multiband Amplifier FM-VHF-UHF-FI 36dB LTE 5G
Broadband Multiband Amplifier MiniKom FM-VHF-UHF-FI with LTE 5G Televes 562621
Compact 4-input (FM-VHF-UHF-FI) multiband amplifier**MiniKom EasyF series, for terrestrial and satellite signals, with integrated 5G LTE filtering. On the VHF and UHF inputs it has two selectable gain margins, while on FM it has a single amplifier stage. In the FI input it allows selecting the LNB power supply in local or remote mode by means of a switch.

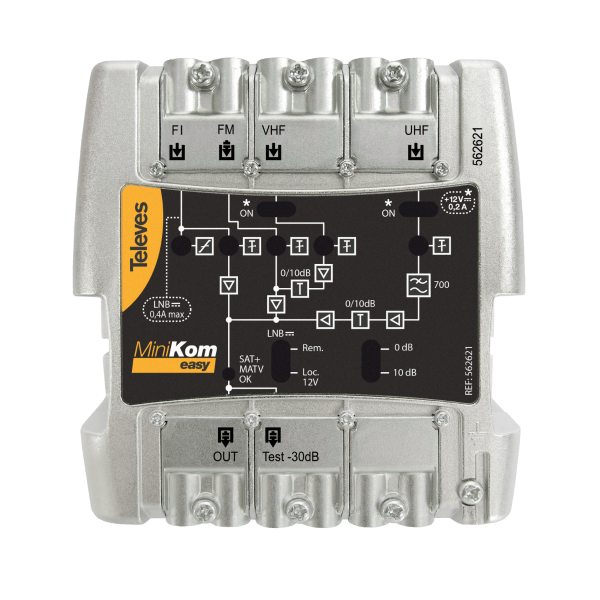

The amplifier has an intuitive front sticker with settings and block diagram. The gain of the equipment is adjustable by means of a switch (high/low) and offers a high output level. Allows you to select DC pass-through to VHF and UHF inputs to feed preamps or BOSS antennas. Includes test output (-30dB).
This MiniKom amplifier has a high shielding chassis, made of Zamak, compact in size (103x103x50mm), with EasyF connection system: simple and fast. It incorporates power and output signal indicator LEDs. It integrates a low consumption switching power supply. It can be screwed into the wall.
MiniKom EasyF Broadband Multiband Amplifier of 4 inputs (FM-VHF-UHF-FI) with integrated 5G LTE
What technical specifications does the MiniKom Televes 562621 have?
Bands FM VHF UHF SAT
Frequency margin MHz 88…108 174…400 470…694 950…2150
Gain 0 dB 15 34 36 42
10 24 26
Gain adjustment range Manual
0 … 20 Manual
0 … 20 Manual
0 … 20 Manual
0 … 30
Input equalizer – – – Manual
0…15
Max. output level IMD3 (2ch, -35dB) dB?V 120 121 122 123
DIN 45004B 113 114 115 –
IMD3 (2ch, -60dB) – 111 112 –
IMD2 (2ch, -60dB) – >101 – –
Noise figure dB 6 5 7 11
Test -30
Local power supply LNB V – 12
Maximum local current LNB mA – 400
Remote power supply LNB V – VRX
Maximum remote current LNB mA – 500
Power supply inputs V – 12 12 –
Max. current through inputs mA – 200 200 –
400
Mains voltage / frequency V~ /Hz 220 – 230 / 50-60
Total AC consumption (without input powering) OFF W, mA 6.5 / 70
Total AC consumption (with input powering) ON W, mA 12.5 / 120
Protection index IP 20
Operating temperature range ?C -5 … +45
