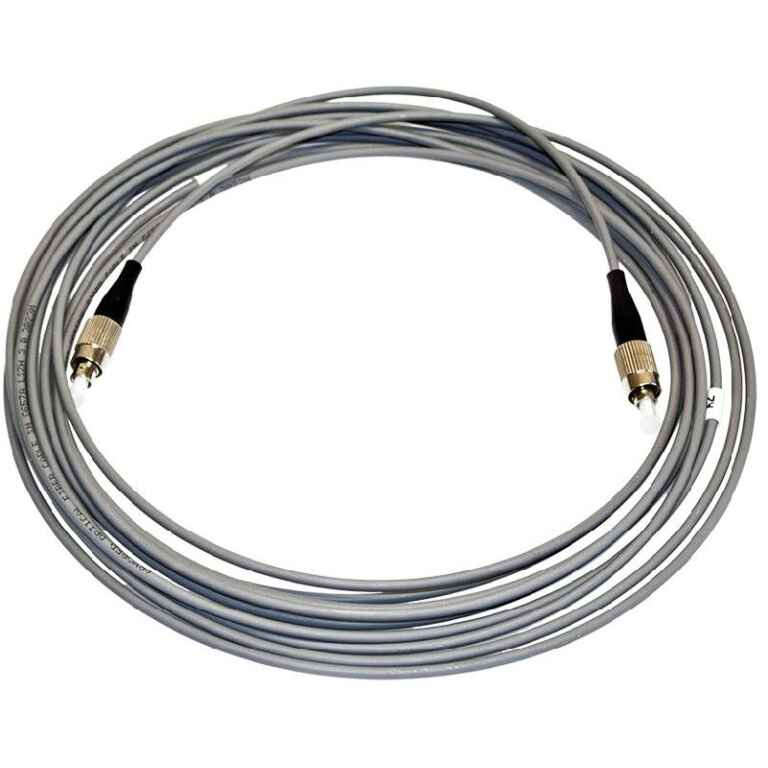

30m optical fiber cable FC/PC F pre-ter Televes
KSh17,252.00
Pre-connectorized patch cords, made of monomode G657A type fiber.
Pre-connectorized patch cords, made of monomode G657A type fiber.
High transmission speed and low attenuation.
Low Smoke and Halogen Free (LSFH).
Min. bending radius: 30 mm.
? 3mm cable terminated with connectors FC/PC (9mm).
Flexible inner shielding (1.3 mm diameter) consisting of a stainless steel fold and aramid yarns.
Specs
Reference? ?236104
?Insertion losses A1, A2 ?
dB ? 0.2
?Return losses A1, A2 ? 45
?Attenuation dB/Km 0,3
?Connectors type FC/PC
?Fiber Monomode (SM) G657A
Outer sheath material LSFH PVC
? mm 3
color grey
?Available jumper lengths m 30
