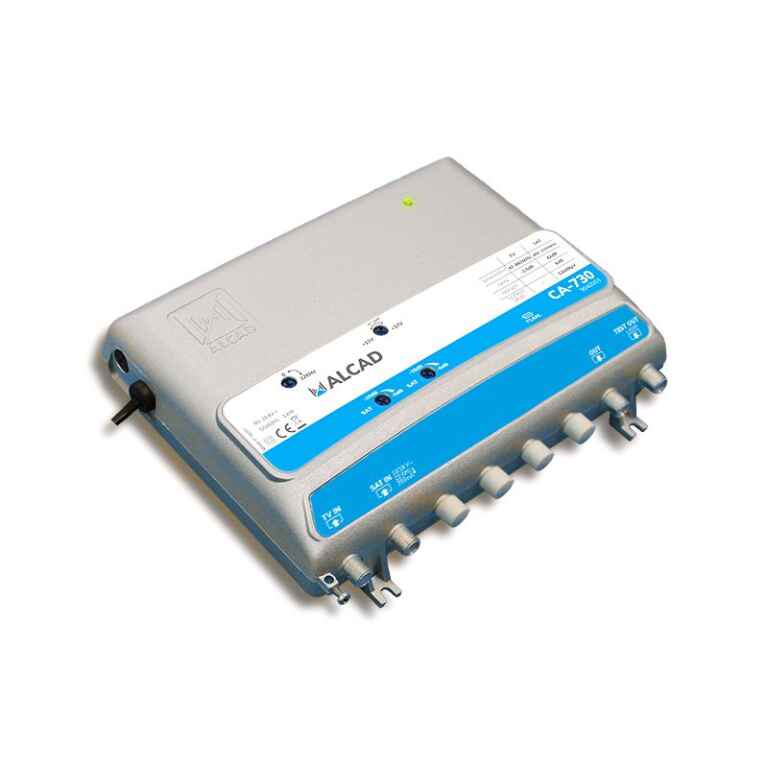

Alcad CA-730 Amplifier if universal
KSh22,648.00
Alcad CA-730 – Serie 904: Amplifier if universal.
IF satellite broadband amplifier for head-end. It has a voltage switch and 22 KHz tone in order to select the polarity of an individual LNB. The built-in power supply unit has the capacity to feed the LNB. A terrestrial TV input permits the multiplexing of terrestrial and satellite TV bands.
Applications
Designed for medium to large analogue and digital SMATV installations. Used as a head-end amplifier for bouquets which have all their transponders in a single polarity. Adjusted by means of a gain controller and a variable slope control.
Characteristics
Made from zamak and galvanised plate for maximum shielding. Separate housings for the power supply unit and the high frequency circuit. Input and output connectors on the base to facilitate installation.
Downloads
Technical specification
Technical specification
Manuals
– pdf 188.97 KB
CA-730 Manual pdf 690.08 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – CA-730 20210716 pdf 70.62 KB
Technical specifications
