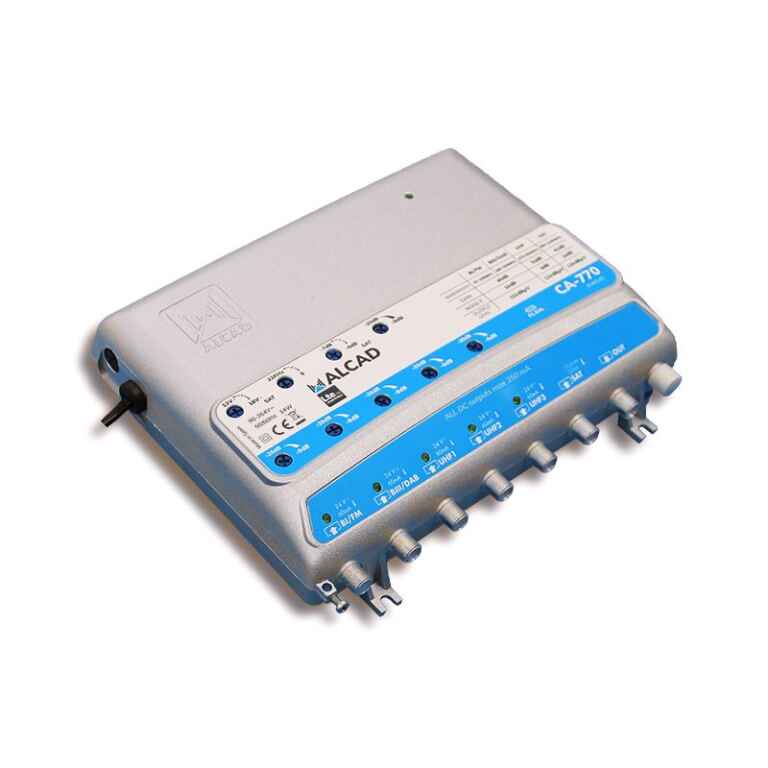

Alcad CA-770 Amp tv-sat if-3xuhf-biii/dab-bi/fm lte7
KSh69,700.00
Alcad CA-770 – Serie 904: Amp tv-sat if-3xuhf-biii/dab-bi/fm lte7.
TV-SAT broadband head-end amplifier with several inputs compatible with the transmission of LTE700 and LTE800 mobile telephone signals. They independently amplify the terrestrial TV and satellite IF bands and distribute both bands through the output. It has a voltage switch and 22 KHz tone in order to select the polarity of an individual LNB. The built-in power supply unit can feed up to five preamplifiers and a LNB automatically.
Applications
Designed for medium to large analogue and digital SMATV installations which are affected by the transmission of LTE700 and LTE800 mobile telephone signals. Used as a single piece of equipment to treat all terrestrial and satellite TV signals, greatly simplifying the installation. Adjusted by means of a gain controller for each terrestrial/SAT input and a variable slope control for SAT.
Characteristics
Made from zamak and galvanised plate for maximum shielding. Separate housings for the power supply unit and the high frequency circuit. F-type connectors, located on the lower part to make installation easier.
Downloads
Technical specification
Technical specification
Manuals
CA-770 Manual pdf 382.63 KB
HN CA-770 pdf 855.71 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – CA-770 20210716 pdf 70.73 KB
Technical specifications
