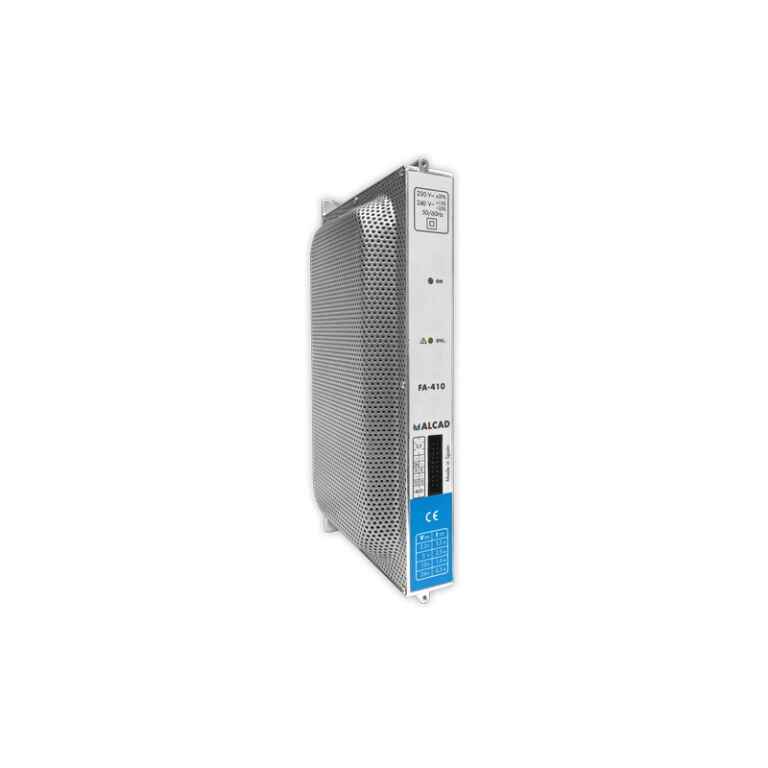

Alcad FA-410 Power supply 50 w (230/240 vac)
KSh51,312.00
Alcad FA-410 – Serie 912: Power supply 50 w (230/240 vac).
Switching power supply, which permits the installation of an amplifier and different modules on the support frame. Power supply with a flat cable of 20 lines for different feed voltages.
Applications
Required for feeding the modules of the equipment.
Characteristics
Protected against power surges, overloads and short-circuits. Zamak chassis with side gills to facilitate proper ventilation. Supplied with power cable.
Downloads
Technical specification
Technical specification
Manuals
– pdf 266.03 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – FA-512 y FA-410 pdf 147.68 KB
