Description

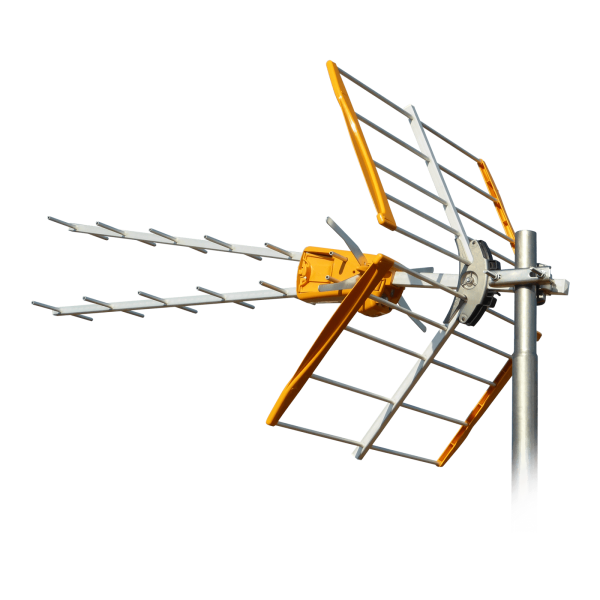

DTT V Zenit Televes antenna of medium gain, prepared for the Second Digital Dividend with its rejection filter for the 5G band.

What are the main features of the Televes 149221 Zenit V antenna?
Quick and secure reflector assembly system.
Robust mechanics with outstanding performance in vibrating situations.
Compact: excellent ratio between gain and length.
Flatness of the frequency response in the UHF band.
Built with aluminium (corrosion resistant ) for a long service life, and in ABS plastic for high weather resistance.
The mast-mounting system utilizes Zamak to provide sturdiness and stability in adverse weather conditions.
Designed and manufactured in Europe, our products undergo the most stringent quality controls.
The connection box includes a balun for impedance matching.
What technical specifications does the UHF Televes 149221 V Zenit antenna have?
Channels 21-48
Working band MHz 470…698
Gain dBi 13
F/B ratio dB >23
Wind load N 93 (@ 130 Km/h)
128 (@ 150 Km/h)
Mast diameter mm 20…50
