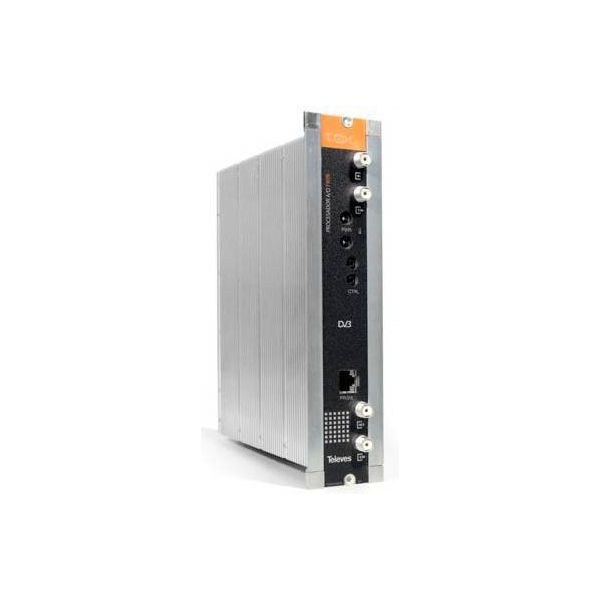

Analogic / digital channel Processor T.0X TWIN
Processor T.0X analog / digital TWIN canal. Ref 564 901 Televes
**
This module processes 2 input channels, analog or digital, regardless of the type of service, to operate as a converter channel (using different input channels and output) or as an amplifier (with the same channel input and output).
**
Features:
?
Filtering SAW (Surface Acoustic Wave). Dota high selectivity, avoiding interfering adjacent channels.
In converter mode, assign a different channel output to input (Twin).
Adjustable slope to balance the signal within the bandwidth.
In amplifier mode, EQ and filter a Digital Multiplex to adapt to the levels of other signals.
