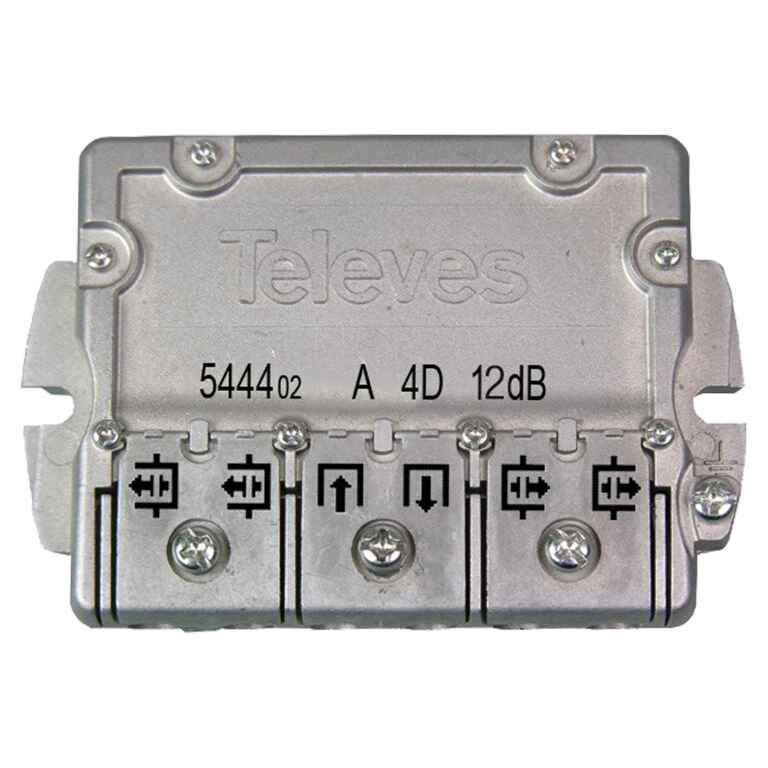

Derivador 5-2400MHz connector EasyF 4 outputs 12dB type TA…

4-lead shunt and EasyF connection system, for SMATV signals, with a compact design and efficient electronic behavior. Due to its bypass losses (12dB), it is recommended to install it on the first floor (type TA). It is an indoor installation, but it is also suitable for outdoor use, always inside a chest (ref 4177).

Stands out for
EasyF connection system: ease of installation and savings in assembly
Made in Zamak, great armor
High reliability: automated manufacturing with last generation microcomponents
Features
Improvement of step losses
Good electrical behavior: impulsive noise reduction
Includes grounding screw
Bidirectional DC step between the entrance and the exit of step
?
EasyF connection system: simplicity and savings

The EasyF is an innovative concept of connecting the internal conductor of the coaxial cable (live), which is inserted directly into the device increasing the reliability of the connection. In addition, thanks to the absence of “F” connectors, it is possible to reduce the chassis and secure the connection of two cables with a single screw.

Real time saving: accelerating the installation is possible, since it is not necessary to make the connectorization of the coaxial cables. In addition, the threading process of the connectors in the device is avoided, which sometimes gets complicated when the space is not enough
Reliability of connection: the flange that holds the cables prevents the coax from coming loose
Economical savings: no additional connector (or “F” or “CEI”) is needed
Optimization of the space: the entrances and exits are always located on the same side of the device, avoiding to bend the coaxial cables and facilitating the work inside cabinets and registers
Very simple assembly in three steps: only it is required to screw and unscrew the covers to connect two cables:

1. Unscrew the lid of the device to access the connection

2. Insert the pre-stripped coaxial cables

3. Close the cover and screw in to secure the connection

Discover more about the reliability of the EasyF system

With EasyF, the connection of the coaxial cable in the device is made by an automated system of insertion of the live (internal conductor) by contact, without requiring welding.

Like the first day: the life time of the device increases when eliminating the possible deterioration of the welds with the passage of time
Reduction of the failure rate: generally produced by cold welding
Optimization of electromagnetic behavior: at high frequencies
Reinforcement of our commitment to the environment: the contamination caused by the welding process is eliminated and the electricity consumption in production is reduced
Specifications
Frequency range MHz 5-2400
5-862 950-2400
Number of departures 4
Plants 1
Passage losses dB 3.5 4.2
Bypass losses 13 12.5
Rejection between derivation >28 >21
DC step (max.) mA 300 (Exit ? Entry.)
