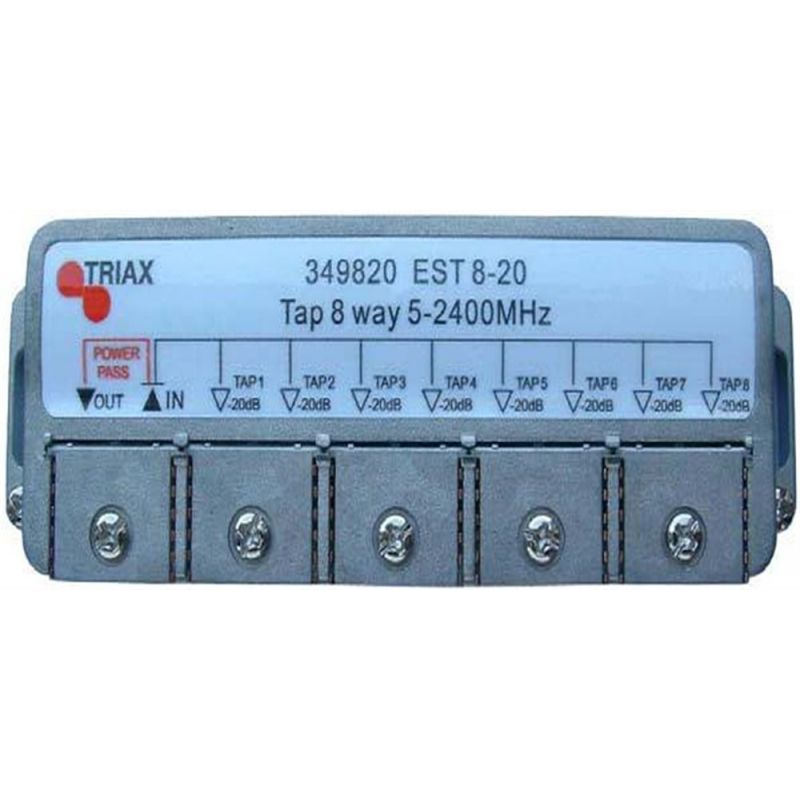

Derivator 8 outputs (Easy clema connection) 20db EST 8-20 Triax

Derivator 8 outputs (Easy clema connection) 20db EST 8-20 Triax

KSh1,824.00

Derivator 8 outputs (Easy clema connection) 20db EST 8-20

Specifications
Model ? EST 8-20
Code ? 349820
Frequency range MHz 5 – 2400
No. of outputs pcs 8
Lost in step (typical) 5 – 40 MHz dB dB 02
40 – 1000 MHz dB 2.5
1000 – 1750 MHz dB 3.5
1750 – 2150 MHz dB 42
2150 – 2400 MHz dB 05
Lost in shunt 5 – 40 MHz dB dB 20.0 (? 1.5)
40 – 1000 MHz dB 20.0 (? 1.5)
1000 – 1750 MHz dB 20.0 (? 2.0)
1750 – 2150 MHz dB 20.0 (? 2.5)
2150 – 2400 MHz dB 20.0 (? 3.0)
Decoupling dB 22
Missed return (Input / output) dB 14
Lost of return (derivation) dB 14
Protection of the shield dB ? 110.0
Current passage ? Input / Output
Impedance Ohm 75
Measurements (h x d x w) mm 124 x 40 x 20
