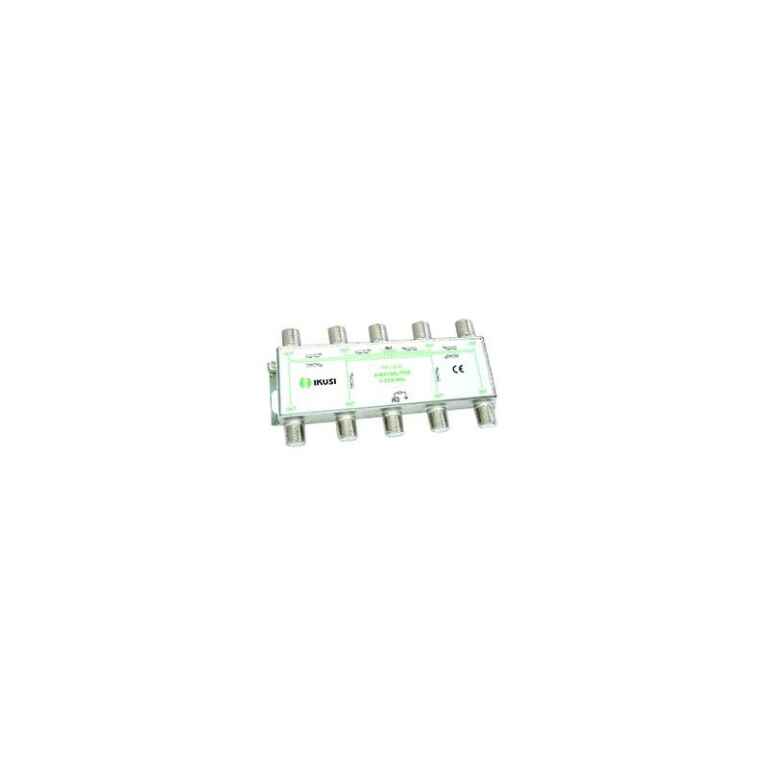

Ikusi PAU-908 User access point 8 outputs
KSh2,200.00
IKUSI PAU-908. User Access Points. Passive distribution elements.
Features
To select one of the two cables of the dispersion network and direct the signal to 2, 3, 4, 5, 6 or 8 exit doors.
Nickel-plated zinc casting box.
Forecast for grounding.
F connection female.
Technical specifications
REF. 3331 3354 3369 3370 3379 3380
No. of ways 2 3 4 5 6 8
Insertion loss 5-862 MHz dB ?5.0 ?8.0 ?9.5 ?12.5 ?13.0 ?13.5
950 -1550 MHz ?5.0 ?9.0 ?10 ?14.0 ?14,5 ?15.5
1551-2150 MHz ?7.0 ?11.0 ?11,5 ?17.0 ?17.5 ?18.0
2150-2400 Mhz ?6.7 ?11.2 ?13 ?17.5 ?18.0 ?19
Output isolation 5-862 MHz dB ?19 ?20 ?20 ?20 ?20 ?20
950-1550 MHz ?19 ?20 ?20 ?20 ?20 ?20
1551-2150 MHz ?19 ?20 ?20 ?20 ?20 ?20
2150-2400 Mhz ?18 ?18 ?18 ?18 ?18 ?18
?
