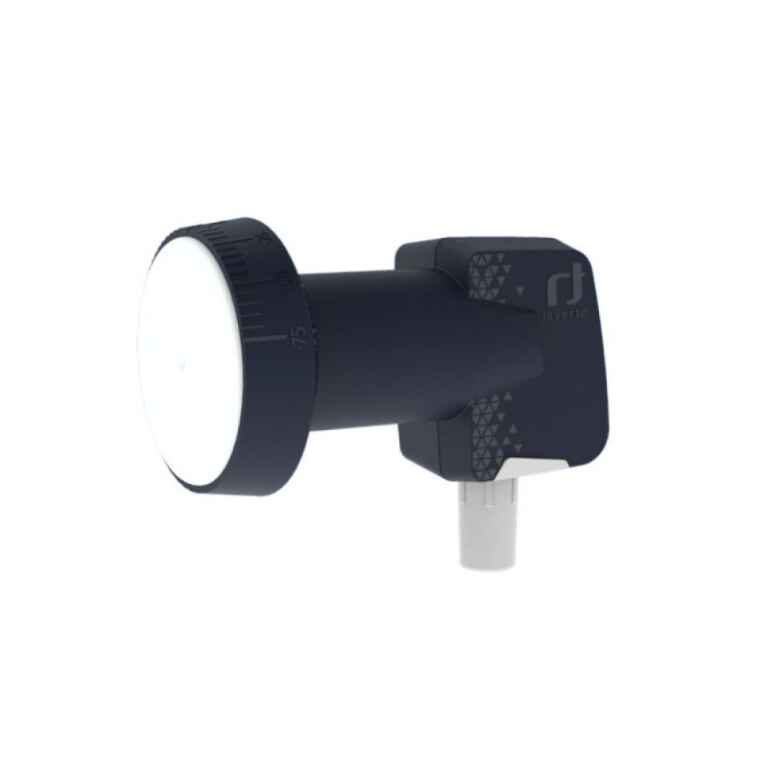

LNB Inverto Premium Black Single Universal 40mm PLL LNB
Specifically designed and selcted to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB premium provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception. It enables the reception of satellite TV and radio from a single satellite and its distribution to a single tuner Set-top box. The LNB supports HD and UHD transmissions, delivers one-of-a-kind RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for the demanding customer of DTH operators and satellite broadcast reception across the world.
Features
Low Phase Noise, DVB-S2 (HD and UHD) compliant
Very low Noise Figure
Low power consumption
High Cross Polarization Isolation
High Frequency stability
Specifications
Technical specifications
Input frequency range 10.7 GHz ~ 12.75 GHz
Output frequency range 950 MHz ~ 2150 MHz
Low band LO frequency 9.75 GHz
High band LO frequency 10.6 GHz
Noise figure 0.2 dB typ. (0.7 dB max.)
LO frequency accuracy @ 25? C ?500 kHz max.
LO temperature drift ?1.0 MHz max.
LO phase noise @ 10 kHz -80 dBc/Hz max.
Conversion gain 56 dB min.
Gain ripple (over 26 MHz bandwidth) ?0.6 dB
Gain variation (over full band) ?3 dB
Image rejection 40 dB min.
3th order intermodulation – ICP3 10 dBm min.
1 dB compression point (@ output) 0 dBm min.
Cross polarization isolation 22 dB min.
Control signal Ca (V) 11.0 V ~ 14.0 V
Control signal Cb (H) 16.0 V ~ 20.0 V
Control signal Cc (band switching) 22 kHz ?4 kHz , 0.4 V ~ 0.8V pp
Output VSWR 2.5 : 1
In band spurious level -60 dBm max.
Current consumption 80 mA max. @ 11 VDC ~ 20 VDC
Operating temperature -35 ?C ~ +60 ?C
Output impedance 75 ?
Output connector type F-type (female)
Dish F/D ratio 0.6
Weight 136 g
Related products
-
Read moreInverto?s high-performance Ultra LNBs were specifically designed to address the need for superior reception under the edges of the satellite footprint skirt, small dish sizes or long coax cables. Thanks to its novel feed horn design and superior front-end components, this LNB provides higher conversion gain yet with low noise figure and best phase noise performance. The combination of innovative feed horn design, higher spec components, excellent cross polarization isolation and advanced filter design enables improved handling of interfering and spurious signals. This LNB provides a leap in the overall reception performance compared with standard LNBs, enabling the reception of signals from one satellite, its distribution to a single tuner Set-top box and is ready for Ultra High Definition TV transmissions in 4K or 8K resolution. Designed to meet strict specifications and manufactured to the highest industry standards, this unique range of LNBs is an ideal solution for installations with challenging reception conditions.
Features
Novel feed horn design
Superior Phase Noise performance, DVB-S2X compliant supporting Ultra HD (4K and 8K) TV
Excellent Cross Polarization Isolation
Very Low Spurious Levels
Superior Noise Figure with high Conversion Gain
High 4G Immunity
Ultimate ReliabilitySpecifications
Technical specifications
Low band input frequency range 10.7 GHz ~ 11.7 GHz
Low band output frequency range 950 MHz ~ 1950 MHz
Low band LO frequency 9.75 GHz
High band input frequency range 11.7 GHz ~ 12.75 GHz
High band output frequency range 1100 ~ 2150 MHz
High band LO frequency 10.6 GHz
Noise figure 0.6 dB typ. (1 dB Max.)
LO temperature drift ? 2.0 MHz max.
LO initial accuracy ? 1.0 MHz max.
LO phase noise @ 1 kHz -70 dBc/Hz
LO phase noise @ 10 kHz -80 dBc/Hz
LO phase noise @ 100 kHz -90 dBc/Hz
LO phase noise @ 1 MHz -100 dBc/Hz
Conversion gain 60 ~ 70 dB
Gain ripple (over 26 MHz bandwidth) 1 dB max. (peak-to-peak)
Gain variation (over full band) 4 dB max. (peak-to-peak)
Image rejection 50 dB min.
3th order intermodulation – ICP3 +10 dBm min
1 dB compression point (@ output) 0 dBm min.
Cross polarization isolation 22 dB min.
Control signal Ca (V) 10.0 V ~ 14.0 V
Control signal Cb (H) 16.0 V ~ 20.0 V
Control signal Cc (band switching) 22 kHz ? 4 kHz, 0.4V ? 0.8V pp
Output VSWR 2.0 : 1 max.
In band spurious level -65 dBm max.
Current consumption 100 mA max. (10 VDC ~ 20 VDC)
Operating temperature -30 ?C ~ +60 ?C
Output impedance 75 ? (F-type)
Output connector type F-Type (female)
Weight 111.2 g -
Add to cartLnb Twin offset Televes of low noise figure 0.5 dB and high gain that allow the capture of signals in the KU band. 2 outputs: HA / VA / HB / VB. It allows to send signal to two satellite tuners, working these completely independently. Televes 4332
-
Add to cartRange of universal LNBs low noise figure and high gain that allow capturing signals in the KU band.
It has four satellite poalaridades (Ha-Hb Va – Vb) identified at each exit. To enable the operation of the LNB would be enough to feed one of its inputs. -
Read moreSpecifically designed and selected to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception. The LNB enables the reception of Satellite TV and radio from one satellite and its distribution via a Multiswitch to numerous Set-top boxes. The LNB supports HD and UHD transmissions, delivers one-of-a-kind RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for the demanding customer of DTH operators and satellite broadcast reception across the world.
Features
Low Phase Noise, DVB-S2 (HD and UHD) compliant
Very low Noise Figure
Low power consumption
High Cross Polarization Isolation
High Frequency stability
Specifications
Input frequency range 10.7 GHz ~ 12.75 GHz
Output frequency range 950 MHz ~ 2150 MHz
Low band LO frequency 9.75 GHz
High band LO frequency 10.6 GHz
Noise figure 0.2 dB typ. (0.7 dB max.)
LO frequency accuracy @ 25? C ?500 kHz max.
LO temperature drift ?1.0 MHz max.
LO phase noise @ 10 kHz -80 dBc/Hz max.
Conversion gain 55 dB min.
Gain ripple (over 26 MHz bandwidth) ?0.6 dB
Gain variation (over full band) ?3 dB
Image rejection 40 dB min.
3th order intermodulation – ICP3 10 dBm min.
1 dB compression point (@ output) 0 dBm min.
Cross polarization isolation 22 dB typ., 20 dB min.
Control signal Ca (V) 11.0 V ~ 14.0 V
Control signal Cb (H) 16.0 V ~ 20.0 V
Control signal Cc (band switching) 22 kHz ?4 kHz, 0.4 V ~ 0.8 V pp
Output VSWR 2.5 : 1
In band spurious level -60 dBm max.
Current consumption 240 mA max. @ 11 VDC ~ 20 VDC
Operating temperature -35 ?C ~ +60 ?C
Output impedance (LNB2) 75 ?
Output connector type F-type (female)
Dish F/D ratio 0.6
Weight 221 g -
Alcad UE-301 Quad lnb, universal
KSh6,412.00Add to cartAlcad UE-301 – Serie 912: Quad lnb, universal.
Universal quad LNB for offset parabolic antennas, for individual installations.
High stability in frequency and high gain. The very low noise level provides quality reception in areas of weak signal.
Downloads
Technical specification
Technical specification
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration UE-301 pdf 64.45 KB
