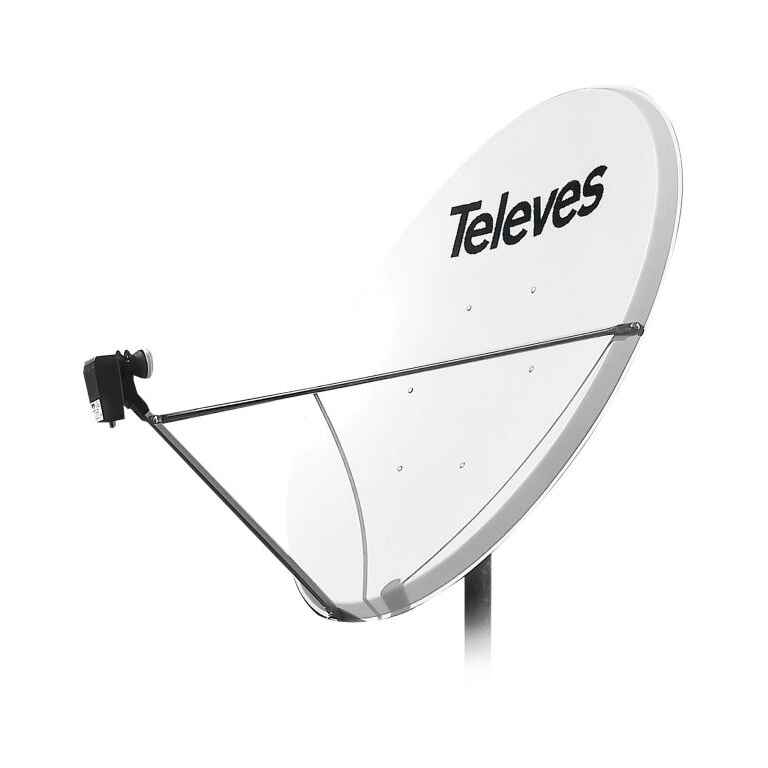

Satellite Dish Offset 1300 Aluminum G 42dBi White Televes
KSh90,684.00
Large aluminum offset dish antenna (141×130 cm) to receive satellite signals in areas of low satellite coverage. LNB support made of ABS plastic, black color, resistant to UV rays, for 40mm horn neck. Arm 30mm wide. Two 12mm stainless steel braces. Adjustable lifting angle between 30 ? and 80 ?. For 60mm masts. Televes 757401
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
Parabola of aluminum 1300. Areas of little satellite coverage
Large aluminum offset satellite dish (141×130 cm) to receive satellite signals in areas with little satellite coverage.
Supplied in white (RAL 9002)
Stands out for
Made of aluminum, with stainless screws to ensure maximum protection against corrosion
LNB support made of ABS plastic, black color, resistant to UV rays, for 40mm horn neck
Reflector and arm lacquered in the oven with polyester paint
30mm wide arm, which guarantees great stability
Features
Two 12mm stainless steel braces to avoid vibrations of the LNB arm
Robust fastening with hot-dip galvanized finish
Adjustable lifting angle between 30 ? and 80 ?
For 60mm masts
With Televes logo
Specifications
Gain (11GHz) (dBi) 42
Frequency Ghz 10.7 – 12.75
Beam width -3 dB 1.65
F-D ratio ? 0.6
Elevation ? 30 – 80
Wind load N 1392@130Km/h?
1914@150Km/h
Max. speed
of wind
which supports Km/h 160
