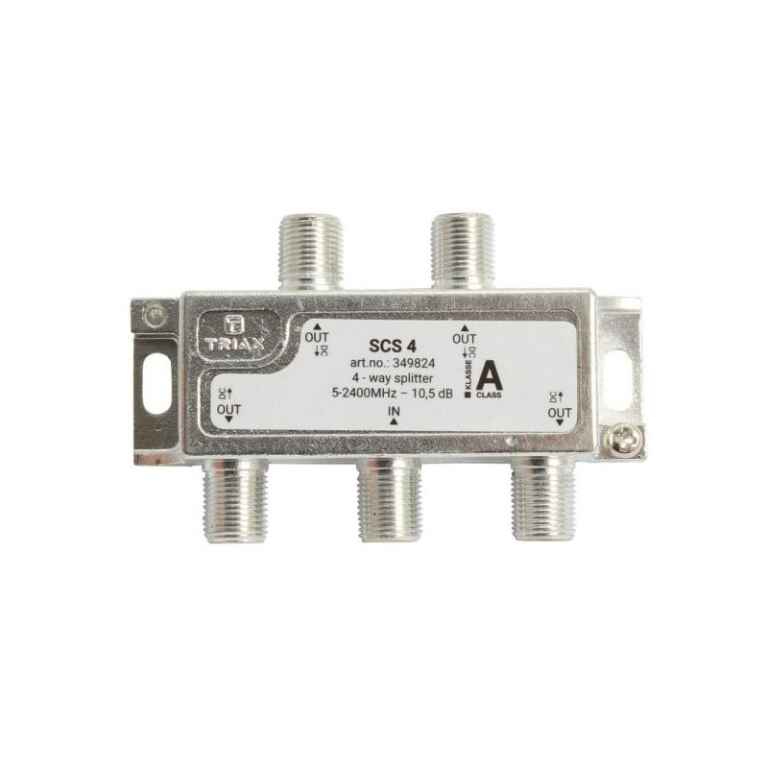

Triax SCS 4 4-output splitter, 7 to 9 dB attenuation
KSh1,070.00
SCS 4 – 4 way splitter
TRIAX coaxial splitter ideal for SAT-IF and MATV distribution networks.
Frequency range 5-2400 MHz
DC pass via diodes from all outputs
High shielding against ingress noise like radiated by LTE mobile
High quality die-cast housing tin (Sn) coated with solder shield bottom plate
Grounding clamp terminals
Formerly triax-349804
Specifications
ORDER INFORMATION
EAN Number 5702663498242
FREQUENCY RANGE
Frequency range 5…2400 MHz
OPERATIONAL
Application SAT-IF, MATV 2.4Ghz +DC(out->in)
Screening Efficiency EN50083-2 (Class A)
DC Passthrough Yes (max. 0.5A/24V)
Certification EN 50581:2012 (RoHS II)
Environment Indoor
Temperature – operating -30?+60 ?C
LOSS
Insertion loss (in-out) 5-40 Mhz 8.0 dB
Insertion loss (in-out) 40-1000 Mhz 8.5 dB
Insertion loss (in-out) 1000-2150 MHz 10.5 dB
Insertion loss (in-out) 2150-2400 Mhz 11.5 dB
ISOLATION
Isolation (tap-tap) 5-40 MHz 25 dB
Isolation (tap-tap) 40-1000 MHz 23 dB
Isolation (tap-tap) 1000-2150 MHz 22 dB
Isolation (tap-tap) 2150-2400 MHz 23 dB
RETURN LOSS
Return loss (in-out) 5-40 MHz 10.0 dB
Return loss (in-out) 40-1000 MHz 11.5 dB
Return loss (in-out) 1000-2150 MHz 12.0 dB
Return loss (in-out) 2150-2400 MHz 14.0 dB
CONNECTORS
Number of inputs 1
Number of outputs 4
Connector Type F-female (IEC 61 169-24)
MECHANICAL
Main material Zinc diecast/Sn plated
Packaging Polybag
Packing QTY 1
Product Height 47 mm
Product Width 74 mm
Product Depth 17 mm
Packaging Height 0.090 m
Packaging Width 0.055 m
Packaging Depth 0.020 m
Packaging Volume 0.000 m3
Net Weight 0.053 kg
Tara Weight 0.003 kg
Total Weight 0.056 kg
ELECTRICAL
Impedance 75 ?
SHIELDING
Shielding effeciency VHF/UHF >85 dB
