RFID THIN CARD, 125kHz Access Card Proximity

KSh400.00

Description
RFID THIN CARD, 125kHz Access Card Proximity

The 125kHz RFID Thin Access Card is a versatile and cost-effective solution for access control and identification applications. This proximity card operates on low-frequency RFID technology, typically at 125kHz, making it a reliable choice for a range of security and automation systems. It features a thin, lightweight design (typically around 0.8mm to 1.0mm thick), which makes it easy to carry and use in everyday applications.

With a unique 64-bit ID memory, the card uses a pre-programmed serial number for identification and authentication, ensuring a smooth, contactless user experience. The card’s typical read range is between 3 to 10 cm, depending on the reader and environment, and it does not require a battery, as it utilizes passive RFID technology for seamless operation.

Constructed from durable PVC or ABS plastic, the 125kHz RFID Thin Access Card is designed to withstand daily wear and tear, with a scratch-resistant surface that ensures longevity. It operates in a wide temperature range (-20°C to +70°C), making it suitable for various indoor and outdoor environments.

These cards are compatible with most 125kHz RFID proximity readers and can be easily integrated into access control, time and attendance, and security systems. Additionally, they can be customized with logos, text, and identification numbers, offering a simple and efficient solution for both personal and professional use.

Add to cart

Quick View

RG11 Coaxial copper Cable 305M

KSh25,000.00

Description
RG11 Coaxial copper Cable 305M

The RG11 Coaxial Copper Cable, available in a 305-meter length, is engineered for high-performance signal transmission in a variety of applications. This cable is ideal for long-distance runs in residential and commercial settings, supporting high-definition television (HDTV), satellite, and digital TV signals with reliability.

Constructed with a solid copper conductor, the RG11 cable ensures superior signal quality and durability. The cable features foam or solid polyethylene insulation, which helps to maintain signal integrity and reduce signal loss. Dual shielding—consisting of an aluminum foil shield and a braided copper shield—provides excellent protection against electromagnetic interference (EMI), ensuring minimal signal degradation over long distances.

The RG11 cable is designed with a 75-ohm impedance, making it compatible with standard TV and satellite applications. It supports frequencies up to 1 GHz or higher, and its low attenuation characteristics help maintain strong signal strength over extended runs.

The cable is encased in a durable PVC or PE (Polyethylene) jacket, providing weather resistance and protection in various installation environments. Depending on the model, the jacket may also be rated for riser or plenum spaces, enhancing its suitability for different installation scenarios.

Overall, the RG11 Coaxial Copper Cable is a robust choice for achieving high-quality signal transmission over long distances, making it a dependable solution for both professional and residential cable installations.

Add to cart

Quick View

RG6 200 Meters Coaxial Cable, Astel

KSh5,500.00

Description
Astel RG6 200 Meters Coaxial Cable Mtech

The RG6 200 Meters Coaxial Cable from Astel is a high-quality, long-length coaxial cable designed to deliver reliable and stable signal transmission for various applications. This cable is ideal for use in television distribution, satellite TV systems, and broadband internet connections, offering robust performance and durability.

Key Features:

High-Performance Transmission: The RG6 coaxial cable is engineered to support high-frequency signals, making it suitable for applications requiring stable and clear signal delivery. With an impedance of 75 ohms and a bandwidth suitable for up to 3 GHz, it provides minimal signal loss and interference over long distances.

Durable Construction: The cable features a high-quality copper or copper-clad steel conductor that ensures efficient signal transmission. The dielectric insulation is made of foam polyethylene (PE), which contributes to the cable’s overall performance.

Enhanced Shielding: To protect against electromagnetic interference (EMI) and signal degradation, the RG6 cable includes a primary shield of aluminum foil or aluminum/polyester foil and a secondary shield of tinned copper or aluminum braid. This multi-layer shielding helps maintain signal integrity and reduces noise.

Weather-Resistant Jacket: The cable is encased in a robust PVC or PE jacket that provides protection against environmental factors, making it suitable for both indoor and outdoor installations. The jacket is designed to withstand temperature variations from -20°C to +60°C and remains flexible even in harsh conditions.

Long Length: With a length of 200 meters, this coaxial cable is well-suited for extensive installations, reducing the need for multiple connectors and joints, which can potentially degrade signal quality.

Versatile Applications: The RG6 cable is versatile and can be used in a variety of settings, including residential, commercial, and industrial environments. It is ideal for connecting cable television systems, satellite dishes, and broadband modems.

Astel RG6 200 Meters Coaxial Cable is suitable for reception and distribution of all kinds of Digital and Analog Satellite Signals i.e. DVB-S/S2, DVB-T/T2, QPSK, QAM, COFDM etc. ASTEL RG-6 CCS Series is SD/HD/FHD READY .

ASTEL RG-6 CCS Series have been designed for high shielding efficiency and low attenuation. RG6 200 Meters Coaxial Cable are designed and manufactured to meet the increasing demands of Satellite (SMATV), Cable TV (CATV), and Antenna Reception (MATV) applications.

Astel RG6 200 Meters Coaxial Cable specifications
Model Product

RG-6 70AL

RG-6 90AL

CS697BV

Inner Conductor
CCS
CCS

CCS

Dielectric

Foam PE

1st Shield

Bonded AP Foil

2nd Shield

AL-MG Braiding

Braid Coverage

70% Coverage

95% Coverage

97% Coverage

3rd Shielding

NA

4th Shielding

NA

Jacket

PVC

ROHS Compliance

NA

Construction

Center Conductor Diameter

1.02 mm

Foam PE

4.80 mm

4.57 mm

1st Shield

4.95 mm

4.73 mm

2nd Shield

5.30 mm

5.32 mm

3rd Shield

NA

4th Shielding

NA

Jacket Material

PVC

Jacket

6.85 mm

6.91 mm

Jelly (For Corrosion Protection)

NO

Electric Specifications

Nominal DCR @ 20 deg C

Inner Conductor

117 ohms/KM

102 ohms/KM

Outer Conductor

62 ohms/KM

27 ohms/KM

26 ohms/KM

Nominal Capacitance

53.0 pf

Impedance

75±3 ohms

Return Loss

**18 dB

**20 dB

**22 dB

Propagation Velocity Ratio

82%

Insulation Resistance

**2000M**

Packing

100Y CTN Size QTY-6 pcs/CTN

28x28x58 cms
28x28x58 cms
28x28x58 cms

Add to cart

Quick View

RG6 COAXIAL CABLE 300MTR, ASTEL CABLE

KSh8,000.00

Description
ASTEL CABLE COAXIAL RG 6 CABLE 300MTR Mtech Networks

The RG6 Coaxial Cable 300MTR by Astel is a high-performance cable designed for reliable signal transmission in television and data applications. With a length of 300 meters, this cable is ideal for both residential and commercial installations where extended runs are needed.

The cable features a solid bare copper or copper-clad steel center conductor, which ensures excellent signal conductivity and minimal loss. It is insulated with foam polyethylene (PE), providing effective dielectric properties and contributing to the cable’s overall performance.

For superior shielding, the RG6 cable includes dual layers: a 100% foil shield and a high-density braid shield with 60% coverage or more. This dual shielding protects against electromagnetic interference (EMI) and signal degradation, ensuring clear and stable signal transmission.

The outer jacket is made from UV-resistant and weatherproof PVC or PE, making it suitable for both indoor and outdoor use. It is designed to withstand environmental factors, including exposure to sunlight and varying weather conditions.

With a 75-ohm impedance and support for frequencies up to 2 GHz, the RG6 cable is ideal for applications such as digital and analog television, satellite TV, cable TV, and broadband data services. Its attenuation rate is typically around 6.5 dB per 100 meters at 1 GHz, which helps in maintaining signal integrity over long distances.

This cable operates effectively within a temperature range of -20°C to +60°C, and can be stored in conditions ranging from -40°C to +70°C. Its flexibility allows for installation in various settings, and it meets industry standards for RG6 cables, including UL and RoHS compliance.

Overall, the RG6 Coaxial Cable 300MTR by Astel provides a robust and dependable solution for high-quality signal transmission, making it a valuable choice for extensive cabling needs.

Add to cart

Quick View

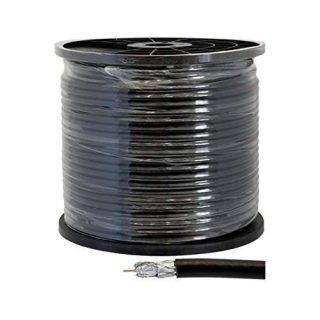

RG6 Coaxial Copper Cable 305M

KSh7,500.00

Description
RG6 Coaxial Copper Cable 305M

The RG6 Coaxial Copper Cable, available in a 305-meter length, is engineered for high-performance signal transmission in a variety of applications, including television, satellite, and internet connections. This cable is designed to provide reliable and efficient connectivity over long distances, making it suitable for both residential and commercial installations.

Constructed with a solid copper conductor, the RG6 cable ensures excellent signal quality and minimal signal loss. The conductor is insulated with foam polyethylene (PE), which helps to maintain signal integrity and reduce attenuation. The cable features dual shielding: an aluminum foil shield and a braided copper shield. This combination effectively protects against electromagnetic interference (EMI) and ensures consistent signal strength.

Encased in a durable PVC (Polyvinyl Chloride) or PE (Polyethylene) jacket, the RG6 cable is built to withstand various environmental conditions, offering resistance to weathering and physical damage. It supports frequencies up to 3 GHz or higher, providing a broad bandwidth for high-definition television and high-speed internet applications.

Designed to operate within a temperature range of -20°C to 60°C (-4°F to 140°F), this cable is versatile for various installation environments. It is available with different fire ratings depending on the jacket material, including riser-rated and plenum-rated options for different installation scenarios.

Overall, the RG6 Coaxial Copper Cable delivers high-quality, reliable performance for long-distance signal transmission, making it an excellent choice for enhancing connectivity in various media and communication systems.

Add to cart

Quick View

RG6 Coaxial TV Cable 300MTR

KSh6,500.00

Description
COAXIAL RG 6 CABLE 300MTR
Detailed Specifications:
Cable Type: Coaxial cable
Model: RG6
Length: 300 meters
Conductor Material:
Copper or copper-clad steel
Conductor Size:
Typically 18 AWG (American Wire Gauge)
Insulation Material:
Foam polyethylene (PE) dielectric for excellent signal insulation
Shielding:
Primary Shield: Aluminum foil or aluminum/polyester foil
Secondary Shield: 60% to 95% tinned copper braid or aluminum braid for enhanced protection against electromagnetic interference (EMI)
Jacket Material:
PVC (Polyvinyl Chloride) or PE (Polyethylene) for flexibility and durability
Impedance:
75 ohms (Ω)
Bandwidth:
Supports frequencies up to 3 GHz
Attenuation:
Typically 5-6 dB per 100 meters at 1 GHz
Capacitance:
Approximately 53 pF/meter
Velocity of Propagation:
Typically around 85%
Temperature Range:
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +70°C
Bend Radius:
Minimum bend radius is typically 10 times the cable diameter during installation
Color:
Typically black or white
Compliance:
Meets or exceeds industry standards such as ANSI/SCTE 74 for coaxial cables
RoHS compliant (Restriction of Hazardous Substances)
Applications:
Suitable for television signal distribution (cable TV, satellite TV)
Broadband internet connections
Digital video and audio signal transmission
Features:
High Signal Integrity: The RG6 cable is designed to deliver clear and reliable TV signals with minimal signal loss and interference. It is ideal for transmitting digital video, audio, and internet signals over long distances.
Durable Construction: The cable’s robust design, featuring multiple layers of shielding and a durable jacket, ensures longevity and performance in various environments.
Versatility: Suitable for a wide range of applications, including cable TV, satellite installations, and broadband internet connections.
Weather-Resistant: The PVC or PE jacket provides protection against environmental factors, making it suitable for both indoor and outdoor use.
Easy Installation: The cable’s flexibility and standard size allow for easy routing and installation in different setups.
