Category: Fiber Optic Cable
Fiber Optic Cable
Showing 1–80 of 238 results
-
Add to cart1 X 16 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors
The 1 x 16 PVC 0.9mm Fiber Jacket SC/PC Rack Mount Splitter is an efficient optical splitter designed for distributing a single input signal to 16 output fibers. Ideal for use in high-density environments, this splitter features a compact 19-inch rack-mountable design, ensuring space optimization in network setups.
Equipped with SC/PC connectors, it provides reliable signal transmission with minimal insertion loss and reduced back reflection. The splitter supports a broad wavelength range of 1260 nm to 1650 nm, offering flexibility for various network applications. With a typical insertion loss of **14.5 dB and a high return loss of **50 dB, it ensures consistent signal quality and performance.
The device utilizes 0.9mm PVC-jacketed fibers, providing durability and flexibility for easy installation and maintenance. It is compliant with industry standards such as Telcordia GR-1209, GR-1221, and RoHS, guaranteeing high reliability and safety.
Designed for ease of use, it includes built-in cable management and clear port labeling, making it a practical solution for FTTH, PON, and CATV networks. The splitter offers robust performance and long-term reliability, making it an essential component for efficient optical signal distribution.
**
-
Add to cart1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors**
1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors from the leading dealer in Nairobi Kenya, buy online 1 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors and have it delivered at your doorstep.
**
Geehes PLC splitters feature low insertion loss, good channel-to-channel uniformity and low PDL over the 1260 to 1650 nm wavelength range. For maximum network robustness and minimum maintenance requirements, these splitters are designed to operate over a wide temperature range suitable for outside plant installation.
Service operators can extend service to customers taking advantage of passive optical networks requiring anywhere from 1 x 2 to 1 x 64 splits. Features:
**Single fiber, SC/LC/ST/FC-based connector
**In-line connection available
**Operating temperature: -40** to 85**C
**Cable Diameter Range: 1.5mm, 2.0mm, 3.0mm,2.0*3.0mmApplication:
**FTTx systems
**PON networks
**CATV links
**Optical signal distribution
**Broadband, CATV, telecom, data centers, LAN, WAN, medical, military and wireless
**Compliance** Specification: **
FIber Optical**PLC Splitter**
Parameter 1**4 1**8 1**16 1**32 1**64 2**4 2**8 2**16 2**32
Operating Wavelength(nm) 1260~1650
Port Wavelength Range (nm) 1310 **20,1490 **10 and 1550 **20
Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.5 0.8 1 1.2 1.8 1.2 1.5 1.8 2
PDL @ 1310/1550 nm (dB) **0.3
Return Loss@ 1310/1551 nm (dB) **-55
Input Power (mW) 250max
Operating Temperature (**) -40~+85**
Storage Temperature (**) -40~+85**
Fiber Type Corning G657A1 -
Add to cart1 X 64 PVC 0.9mm fiber jacket SC/APC Rack Splitter connectors**
The 1 x 64 PVC 0.9mm Fiber Jacket SC/APC Rack Mount Splitter is a high-capacity optical splitter designed for efficient signal distribution in fiber optic networks. This splitter features one input fiber and 64 output fibers, making it ideal for applications requiring extensive signal distribution, such as large-scale FTTH, PON, and CATV networks.
Housed in a compact, 19-inch rack-mountable enclosure, it is equipped with SC/APC connectors, which provide reduced back reflection and improved performance in high-density environments. The splitter uses singlemode fibers with a 0.9mm PVC jacket, ensuring both flexibility and durability.
With a typical insertion loss of **21.5 dB, high return loss of **60 dB, and excellent uniformity, the splitter ensures reliable and consistent performance across a wide wavelength range of 1260 nm to 1650 nm. Designed for easy installation and maintenance, it includes built-in cable management and clear port labeling. Compliant with industry standards such as Telcordia GR-1209, GR-1221, and RoHS, this splitter offers high stability and longevity for demanding network applications.
Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260**1650
Channel Number ** 1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.1/4.4 7.4/7.9 10.5/11.0 13.8/14.1 17.1/17.4 20.4/21.0
Insertion Loss without Connector (Max) dB 3.8/4.1 7.1/7.6 10.2/10.7 13.5/13.8 16.8/17.1 20.1/20.7
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB **45(PC)**50(UPC)**60(APC)
Directivity dB **55** Dimension (mm) **
Splitter 1X2 1X4 1X8 1X16 1X32 1X64
Cassette size 60**7**4 60**7**4 60**7**4 60**12**4 80x20x6 100x40x6
Splitter 2X2 2X4 2X8 2X16 2X32 2X64
Cassette size 60**7**4 60**7**4 60**7**4 60**12**4 80x20x6 100x40x6
Products: Fiber Optic PLC Splitter 1**64 Mini Module 900**m SC APC Singlemode Package Style: Mini Module
Connector Type: SC/APC Fiber Type: Singlemode
Return Loss: **60dB Insertion Loss: 13.5/13.8
Operating/Storage Temperature: -40~85**C Directivity: **55dB
High Light:
rack mount plc splitter,
plc splitter module
-
Add to cart1 X 8 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors**
1 X 8 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors from the leading fiber dealer in Nairobi kenya, buy online 1 X 8 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors and have it delivered.
PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
**
Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It**s mainly used for various connection and distribution boxes or network cabinets.
**
Product Specification
**
Package Style Mini Module Configuration Type 1**8
Fiber Type Singlemode G.657A1 Connector Type SC/APC
Input/Output Fiber Diameter 900**m Input/Output Fiber Length 1.5m
Insertion Loss **10.6dB Return Loss **50dB
Loss Uniformity **0.8dB Directivity **55dB
Polarization Dependent Loss **0.2dB Temperature Dependent Loss **0.5dB
Wavelength Dependent Loss **0.3dB Operating Bandwidth 1260~1650nm
Split Ratio 50/50 Steel Tube Dimensions (HxWxD) 0.16**x2.36**x0.28** (4x60x7mm)
Operating Temperature -20~70**C Storage Temperature -40~85**C -
1/2 Galvanised Large D Shackle – Kenya
KSh750.00Add to cart1/2 Galvanised Large D Shackle**
The 1/2** Galvanised Large D Shackle is a robust and reliable fastening device designed for a wide range of heavy-duty applications. Constructed from high-quality galvanized steel, this shackle is treated with a hot-dipped galvanised finish, ensuring exceptional corrosion resistance and durability even in harsh environments.
With a size of 1/2 inch (12.7 mm), the large D shape of the shackle facilitates efficient load distribution, making it ideal for securing and lifting heavy loads. The design typically features a screw pin or bolt-type pin, ensuring a secure connection and easy attachment to various rigging equipment, such as ropes, chains, and hooks.
The shackle**s dimensions, generally around 2-3 inches in width and 4-6 inches in height, allow for versatility in applications, whether in marine, construction, or industrial settings. It is engineered to meet relevant industry standards for strength and safety, providing peace of mind when handling significant loads.
The 1/2** Galvanised Large D Shackle is essential for those seeking a dependable and sturdy solution for towing, lifting, or securing applications, making it a vital tool in any rigging or safety equipment arsenal.
Material Alloy Steel
Size 1/2** ** 2.1/2**
Brand Multiple Brands
Usage/Application Industrial, Erection, Construction, Lifting, etc.
Loading Capacity 1 Ton ** 55 Tons
Color Galvanized with colored pin
Type Screw Pin, Nut Bolt
Surface Finishing Galvanized
Finish Galvanized
Grade Grade 80 -
Add to cart12 Core Multi Mode Fiber Optic Cable**
12 Core Multi-Mode Fiber Optic Cable duct grade unitube cable range has been designed to be lightweight and compact.
The 4-12 fibre product variants are constructed around a 2.90mm gel filled loose tube, whereas the 16-24 fibre variants use a 4.00mm loose tube.
12 Core Multi-Mode Fiber Optic Cable** is designed to accommodate environments where the installation of the fibre optic cable might be strenuous. 12 Core Multi-Mode Fiber Optic Cable are positioned in a loose tube manufactured with a modulus plastic.
12 Core Multi-Mode Fiber Optic Cable tubes are filled with a water-resistant filling compound and has a fibre re-enforcement (FRP) located in the centre of the cable as a non-metallic strength member. 12 Core Multi-Mode Fiber Optic Cable Protected by a Polyethylene sheath, Heavy Duty Duct cable is the ultimate in reliability for riser shafts and or extensions to other buildings.
Multi Mode Fiber Optic Cable Applications:** Internal cable for installation in trunking, under floor or ceiling spaces**
** Short run external links between buildings**
** Fibre backbones in riser and horizontal configurations
12 Core Multi Mode Fiber Optic Cable specification
Compact water blocked design ** 12 fibres ** Level 1 rodent protection ** Universal sheath ** External grade sheath cables also available (UDE)
QUICKTAG 53-TB12-BK
MANUFACTURER MCL
FIBRE COUNT 12
BUILD TYPE Tight Buffered
PROTECTION Flame Retardant
MODE Multimode 50** OM3
ENVIRONMENT TYPE Universal
Loose-tube: 4-24 core Cable
**Fibre Cores 4 8 12 16 24
**Weight kg/km 25 34 41 47 62
**Outer Diameter mm 5 5.9 6.5 7.2 8.3
**Tensile Strength (during installation) N 640 920 1100 1430 1430
**Bend Radius mm 80 95 100 113 128
**Crush Resistance N 2000
**Operating Temperature Range **C 15 ** +60
12-Core Indoor Multimode Fiber Optic Cable
Optic Fibre Cables
Optic Fibre Cables Price
Buy Optic Fibre Cables
Multimode 12-Core** Fiber Optic Cable**
-
Add to cart12 Core Single-mode Air Blown Duct Micro Fiber Optic Cable, G652D Mtech
The 12 Core Single Mode Air Blown Duct Micro Fiber Optic Cable is a cutting-edge solution designed for high-speed telecommunications and data transmission. With its compact and lightweight design, this cable is ideal for applications requiring minimal space and maximum efficiency, such as Fiber to the Home (FTTH), data centers, and high-density network environments. The cable comprises 12 single-mode fibers, allowing for efficient data transmission over long distances while maintaining signal integrity and quality. Engineered for air-blown installation systems, it enables quick and easy deployment through existing duct networks without the need for extensive construction or disruption.
This fiber optic cable offers excellent performance with low attenuation rates, typically ** 0.35 dB/km at 1310 nm and ** 0.20 dB/km at 1550 nm, ensuring high-quality signal transmission over extended distances. It is constructed with low smoke zero halogen (LSZH) material, making it resistant to fire and emitting minimal smoke and toxic fumes, which enhances safety in emergencies. Designed to operate effectively in a wide temperature range, from -20**C to +70**C, and with storage conditions ranging from -40**C to +70**C, the cable is suitable for diverse environments. Additionally, it features an integrated moisture barrier that protects against water ingress, ensuring reliability and durability even in humid or wet conditions.
In summary, the 12 Core Single Mode Air Blown Duct Micro Fiber Optic Cable is a versatile and reliable solution for modern networking needs. It provides high-speed data transmission and easy installation for various applications, making it an essential choice for telecommunication professionals seeking efficiency and performance.
**
** -
Add to cart12 Core Singlemode Un-Armoured Fibre Optic Cable**
The 12 Core Singlemode Un-Armoured Fibre Optic Cable is engineered for high-performance data transmission across long distances, making it an ideal choice for telecommunications, data centers, and backbone networks. This cable features 12 singlemode fibers with a core diameter of 9 **m and a cladding diameter of 125 **m, ensuring optimal light transmission for both 1310 nm and 1550 nm wavelengths.
The un-armoured design allows for greater flexibility and lighter weight, making installation easier in various environments. The outer diameter typically measures around 3.0 mm and is available with either a PVC or LSZH (Low Smoke Zero Halogen) sheath, offering a balance between durability and fire safety.
With a maximum attenuation of ** 0.35 dB/km at 1310 nm and ** 0.20 dB/km at 1550 nm, this cable maintains high signal integrity even over extensive distances. Its minimum bend radius of 10 x the outer diameter during installation and 20 x the outer diameter in use ensures that the cable can withstand tight bends without compromising performance.
Operating efficiently in temperatures ranging from -20**C to +70**C, this cable is designed for resilience and reliability in various conditions. The fibers are color-coded in accordance with industry standards, with yellow indicating singlemode fibers, facilitating easy identification during installation.
Overall, the 12 Core Singlemode Un-Armoured Fibre Optic Cable combines advanced technology and practical design, making it an excellent choice for organizations looking to enhance their network infrastructure with reliable, high-speed connectivity.
**
-
Add to cart12 Core Underground Armoured Singlemode Fibre Optic Cable , G652D**
The 12 Core Underground Armoured Singlemode Fibre Optic Cable is specifically engineered for robust, high-capacity communication in challenging environments. Designed for underground installations, this cable features a durable armoured construction that offers exceptional protection against physical damage, moisture, and environmental hazards, making it ideal for direct burial and outdoor applications.
With 12 singlemode fibers, this cable supports long-distance data transmission, typically achieving distances of up to 40 km or more, depending on network conditions. It operates effectively at standard wavelengths of 1310 nm and 1550 nm, ensuring minimal signal loss and high-speed performance.
The outer jacket is crafted from low smoke zero halogen (LSZH) or PVC material, providing additional safety and reduced toxicity in case of fire. The armouring, made from steel or aluminum tape, adds a layer of mechanical strength, allowing the cable to withstand harsh conditions and potential impacts.
Designed with a minimum bending radius of 20 times its outer diameter, this cable maintains flexibility during installation and ensures reliable performance in various setups. It operates within a temperature range of -40**C to +70**C, ensuring functionality in diverse climates.
The 12 Core Underground Armoured Singlemode Fibre Optic Cable is compliant with international standards (such as IEC and TIA/EIA), reflecting its quality and reliability. This cable is an essential component for telecommunications networks, data centers, and other applications requiring secure, high-speed connectivity in underground settings, providing a future-proof solution for modern communication needs.
**
** -
Add to cart12 Port 1U LC/UPC Duplex MM Adapter Rack mount ODF**
**
The 12 Port 1U LC/UPC Duplex Multimode Adapter Rack Mount Optical Distribution Frame (ODF) is an efficient and robust solution for managing high-density fiber optic connections in network installations. Designed for standard 19-inch racks, this 1U unit offers 12 LC duplex ports, providing seamless integration into existing network infrastructure.
Constructed from durable cold-rolled steel with a sleek powder-coated finish, the ODF ensures long-lasting performance and protection. The front panel features 12 LC duplex adapters, each with an Ultra Physical Contact (UPC) finish, guaranteeing low insertion loss and high return loss, making it ideal for high-performance multimode fiber networks.
Compatible with OM1, OM2, OM3, OM4, and OM5 fiber types, this ODF supports both 50/125 **m and 62.5/125 **m multimode fibers. The integrated rear cable management system ensures organized and secure routing of fibers, minimizing stress and potential damage.
Installation is straightforward, with front access simplifying maintenance and configuration changes. The ODF includes a rear cable management tray or brackets, mounting screws, cable ties, and dust caps to facilitate a neat and efficient setup.
Compliant with industry standards such as TIA/EIA, IEC, and RoHS, and adhering to UL 94V-0 flammability ratings, this ODF meets all necessary safety and environmental regulations. Its compact design allows for effective space utilization while optional lockable doors enhance security.
Whether for data centers, telecommunications closets, or enterprise networks, the 12 Port 1U LC/UPC Duplex MM Adapter Rack Mount ODF provides a reliable, high-density solution for optical connection management, ensuring excellent performance and ease of use in various environments.
**
-
Add to cart12 Port 1U LC/UPC Duplex SM Adapter Rack mount ODF**
**
The 12 Port 1U LC/UPC Duplex Single-Mode Adapter Rack Mount Optical Distribution Frame (ODF) is a compact and efficient solution for managing fiber optic connections in telecommunications, data centers, enterprise networks, and local area networks (LANs). This ODF is specifically designed to accommodate 12 duplex LC/UPC ports, providing a high-density solution for single-mode fiber applications.
The ODF features LC connectors with UPC (Ultra Physical Contact) polish, ensuring minimal insertion loss and excellent return loss. With a typical insertion loss of ** 0.2 dB and return loss of ** 50 dB, this device offers superior signal integrity and performance for single-mode fiber networks operating at wavelengths of 1310 nm and 1550 nm. It is compatible with G.652 and G.657 single-mode fiber types, making it suitable for a wide range of optical network infrastructures.
Constructed from durable, corrosion-resistant materials, the ODF includes a sturdy metal or high-strength plastic frame. The high-precision ceramic sleeves within the adapters ensure accurate fiber alignment and secure connections, while the overall design is rated for over 1000 mating cycles, offering long-lasting reliability.
The 1U rack-mountable design allows the ODF to fit seamlessly into standard 19-inch racks or cabinets, occupying minimal space while maximizing fiber management efficiency. The front panel is clearly labeled for easy port identification, and integrated cable management features ensure organized routing, reducing cable clutter and simplifying maintenance.
Designed to withstand various environmental conditions, the ODF supports an operating temperature range from -20**C to 70**C and can handle up to 95% relative humidity. It complies with industry standards such as TIA/EIA-568 and IEC, and meets RoHS and UL safety certifications, ensuring it is both safe and reliable for critical network applications.
The 12 Port 1U LC/UPC Duplex Single-Mode Adapter Rack Mount ODF is ideal for network environments that require efficient, high-density fiber management. Its compact design, robust construction, and superior performance make it an excellent choice for telecommunications, data centers, and enterprise networks, providing a dependable platform for modern fiber network infrastructures. Whether used for new installations or upgrades, this ODF delivers exceptional performance and ease of use, meeting the demands of high-speed, high-reliability optical networks.
**
-
Add to cart12 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF**
12 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF from the leading fiber dealer in Nairobi kenya, buy online 12 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF and have it delivered at your doorstep.
12 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF is made of metal in 19** standard structure. There are 2pcs of stainless steel rails at the sides of the box. 12 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF can be loaded with FC,SC,ST,LC adapters and pigtails.
The fiber patch panel is where the end of the optical cable is connected, and then connected to the optical switch through an optical jumper. fiber patch panel is usually installed in a 19-inch rack and can accommodate a larger number of fiber optic cable ends.It can be applied in branch connection of optical cable termination.
Features:
Rack mounting 19** standard size, light weight
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
24C, 36C, 48C, 96C,144C optional, with or without fiber optic pigtails and adapters
Easy for management and operation
Sprayed surface treatment process
Customizble color and LOGOApplications:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN -
Add to cart12 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF**
12 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF from the leading fiber dealer in Nairobi Kenya, buy online 12 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF and have it delivered.
fiber patch panel can applied in branch connection of optical cable termination;19**standard structure,sliding design,rack mounted;Suitable for FC,SC,ST,LC Adapters.
**GPZ/SP-CL fiber Optic Terminal Box is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network.**
12 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF** is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.
** Features:**
Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
The box has a pothook, which is convenient to install and dismantle
The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray
The box is of unique structure, reasonable layout, and has adequate room for operation
Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly
The indoor type is of excellent seal performance, which could prevent water from entering effectively
Can be installed with LC adapter
Up to 12 cores splice capacity
Sliding design** Packing Details:
Type Size(mm) W*D*H Max Capacity Outer carton dimension Outer carton weight
GPZ/SP-CL-1U 430*300*1U 48 485*420*350/5pcs 27.5/5pcs
GPZ/SP-CL-2U 430*300*2U 96 500*355*550/4pcs 26.3/4pcs
GPZ/SP-CL-4U 430*300*4U 192 500*350*540/1pcs 18.9/1pc
GPZ/SP-CLA-1U 430*250*1U 48 485*305*425/4pcs 20/4pcs
GPZ/SP-CLB 450*320*445 96 485*420*350/4pcs 20/4pcs -
Add to cart144 cores Pedestal mounted fiber distribution cabinet SC/APC connectors**
The 144-Core Pedestal Mounted Fiber Distribution Cabinet is a robust and secure solution designed for outdoor fiber optic distribution. It features 144 SC/APC connectors, providing high-density fiber management for telecom networks and FTTH deployments. Constructed from corrosion-resistant materials, the cabinet offers IP55-rated protection against environmental elements. It includes a comprehensive cable management system, multiple entry points, and a multi-point locking mechanism for enhanced security. This cabinet is ideal for managing and distributing large-scale fiber connections in demanding outdoor environments.
Specifications
Specifications 144 core
Photoelectric performance Insertion loss ** 0.2dB; additional loss ** 0.2B
Working wavelength 850nm1310nm1550nm
Insertion and durability life > 1000 times
Application Telecom / Mobile / China Unicom / Radio and TV -
Add to cart1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter from the leading fiber dealer in Nairobi Kenya, buy 1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter and have it delivered.
PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. 1X16 Bare PLC Steel Tube 250µm Single Mode Fiber is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation.
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
Name of the test
Condition
Duration
Temperature- Humidity aging
85°C and 85% RH
7 days
Vibration
10 – 55Hz, 1.52mm double amplitude, in three axes
1 hour
Component Impact
Test Impact of 500g (mass ** 0.125kg), 1ms , half sine pulse
2 impacts
Temperature Cycling Test
-40 – 70°C, Ramp rate: 1°C /min, Dwell time > 15min
10 cycles
Temperature- Humidity cycling
-40 – 85°C , between 10°C and 23°C – 85% RH, at 85°C – 20%RH, between °C and 85°C – maintain a linear change in RH, below 10°C – uncontrolled RH
14 days
Water Immersion
43 ± 2°C , PH 5.5 ± 0.5
7 days
Fiber Side Pull test
0.23 kg load, 90° angle , 2 directions
5 seconds
Fiber Side Pull test
0.45 Kg load for Single Input Fiber, 1.5 Kg load for 8 Fiber Ribbon Outputs
-
Add to cart
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter from the leading fiber dealer in Nairobi Kenya, buy 1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter and have it delivered.
PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. 1X16 Bare PLC Steel Tube 250µm Single Mode Fiber is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation.
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
Name of the test
Condition
Duration
Temperature- Humidity aging
85°C and 85% RH
7 days
Vibration
10 – 55Hz, 1.52mm double amplitude, in three axes
1 hour
Component Impact
Test Impact of 500g (mass ** 0.125kg), 1ms , half sine pulse
2 impacts
Temperature Cycling Test
-40 – 70°C, Ramp rate: 1°C /min, Dwell time > 15min
10 cycles
Temperature- Humidity cycling
-40 – 85°C , between 10°C and 23°C – 85% RH, at 85°C – 20%RH, between °C and 85°C – maintain a linear change in RH, below 10°C – uncontrolled RH
14 days
Water Immersion
43 ± 2°C , PH 5.5 ± 0.5
7 days
Fiber Side Pull test
0.23 kg load, 90° angle , 2 directions
5 seconds
Fiber Side Pull test
0.45 Kg load for Single Input Fiber, 1.5 Kg load for 8 Fiber Ribbon Outputs
-
Add to cart
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter from the leading fiber dealer in Nairobi Kenya, buy 1X16 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter and have it delivered.
PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. 1X16 Bare PLC Steel Tube 250µm Single Mode Fiber is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation.
1X16 Bare PLC Steel Tube 250µm Single Mode Fiber is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
Name of the test
Condition
Duration
Temperature- Humidity aging
85°C and 85% RH
7 days
Vibration
10 – 55Hz, 1.52mm double amplitude, in three axes
1 hour
Component Impact
Test Impact of 500g (mass ** 0.125kg), 1ms , half sine pulse
2 impacts
Temperature Cycling Test
-40 – 70°C, Ramp rate: 1°C /min, Dwell time > 15min
10 cycles
Temperature- Humidity cycling
-40 – 85°C , between 10°C and 23°C – 85% RH, at 85°C – 20%RH, between °C and 85°C – maintain a linear change in RH, below 10°C – uncontrolled RH
14 days
Water Immersion
43 ± 2°C , PH 5.5 ± 0.5
7 days
Fiber Side Pull test
0.23 kg load, 90° angle , 2 directions
5 seconds
Fiber Side Pull test
0.45 Kg load for Single Input Fiber, 1.5 Kg load for 8 Fiber Ribbon Outputs
-
Add to cart1X2 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1×2 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a compact and highly efficient optical splitter designed for distributing a single input signal to two output fibers. Ideal for applications in fiber optic networks where space is a premium, this splitter features a bare PLC (Planar Lightwave Circuit) design housed within a durable steel tube, providing robust protection and mechanical strength.
Operating over a wavelength range of 1260 nm to 1650 nm, the splitter supports singlemode fiber with a typical insertion loss of **3.8 dB and a high return loss of **50 dB, ensuring minimal signal degradation and reflection. The device offers uniform signal distribution with a typical uniformity of **0.8 dB, and it is optimized for high performance with a polarization dependent loss (PDL) of **0.2 dB.
The 250µm tight-buffered fibers within the steel tube provide flexibility and protection, making it suitable for various network environments. Designed to withstand temperatures ranging from -40°C to +85°C, this splitter is ideal for both indoor and outdoor installations.
With features such as clear port labeling and easy accessibility for splicing and maintenance, the 1×2 Bare PLC Steel Tube Splitter ensures reliable and consistent performance. It meets industry standards including Telcordia GR-1209, GR-1221, and RoHS, making it a dependable choice for high-speed and high-density fiber optic applications.
-
Add to cart
1X2 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1×2 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a compact and highly efficient optical splitter designed for distributing a single input signal to two output fibers. Ideal for applications in fiber optic networks where space is a premium, this splitter features a bare PLC (Planar Lightwave Circuit) design housed within a durable steel tube, providing robust protection and mechanical strength.
Operating over a wavelength range of 1260 nm to 1650 nm, the splitter supports singlemode fiber with a typical insertion loss of **3.8 dB and a high return loss of **50 dB, ensuring minimal signal degradation and reflection. The device offers uniform signal distribution with a typical uniformity of **0.8 dB, and it is optimized for high performance with a polarization dependent loss (PDL) of **0.2 dB.
The 250µm tight-buffered fibers within the steel tube provide flexibility and protection, making it suitable for various network environments. Designed to withstand temperatures ranging from -40°C to +85°C, this splitter is ideal for both indoor and outdoor installations.
With features such as clear port labeling and easy accessibility for splicing and maintenance, the 1×2 Bare PLC Steel Tube Splitter ensures reliable and consistent performance. It meets industry standards including Telcordia GR-1209, GR-1221, and RoHS, making it a dependable choice for high-speed and high-density fiber optic applications.
-
Add to cart
1X2 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1×2 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a compact and highly efficient optical splitter designed for distributing a single input signal to two output fibers. Ideal for applications in fiber optic networks where space is a premium, this splitter features a bare PLC (Planar Lightwave Circuit) design housed within a durable steel tube, providing robust protection and mechanical strength.
Operating over a wavelength range of 1260 nm to 1650 nm, the splitter supports singlemode fiber with a typical insertion loss of **3.8 dB and a high return loss of **50 dB, ensuring minimal signal degradation and reflection. The device offers uniform signal distribution with a typical uniformity of **0.8 dB, and it is optimized for high performance with a polarization dependent loss (PDL) of **0.2 dB.
The 250µm tight-buffered fibers within the steel tube provide flexibility and protection, making it suitable for various network environments. Designed to withstand temperatures ranging from -40°C to +85°C, this splitter is ideal for both indoor and outdoor installations.
With features such as clear port labeling and easy accessibility for splicing and maintenance, the 1×2 Bare PLC Steel Tube Splitter ensures reliable and consistent performance. It meets industry standards including Telcordia GR-1209, GR-1221, and RoHS, making it a dependable choice for high-speed and high-density fiber optic applications.
-
Add to cart1X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1×32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a robust and efficient optical splitter designed for high-density fiber optic networks. This device distributes a single input signal to 32 output fibers, making it ideal for applications requiring extensive signal distribution, such as FTTH (Fiber to the Home), PON (Passive Optical Network), and CATV (Cable Television) networks.
Encased in a durable steel tube, the splitter features a bare Planar Lightwave Circuit (PLC) design that ensures reliable and high-performance signal distribution. It operates across a broad wavelength range of 1260 nm to 1650 nm, accommodating both 1310 nm and 1550 nm signals. With a typical insertion loss of **15.0 dB and a high return loss of **50 dB, it minimizes signal degradation and reflections, ensuring optimal performance.
The device is designed with 250µm tight-buffered singlemode fibers, offering both flexibility and protection. Its compact steel tube construction provides robust mechanical protection while maintaining a small footprint for easy installation in splice trays or enclosures.
Built to withstand harsh environmental conditions, the splitter operates reliably within a temperature range of -40°C to +85°C and can handle humidity levels up to 95%. The clear port labeling and accessibility features facilitate easy installation and maintenance.
Compliant with industry standards such as Telcordia GR-1209, GR-1221, and RoHS, the 1×32 Bare PLC Steel Tube Splitter ensures high reliability and safety, making it a dependable choice for demanding optical network applications.
-
Add to cart
1X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1×32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a robust and efficient optical splitter designed for high-density fiber optic networks. This device distributes a single input signal to 32 output fibers, making it ideal for applications requiring extensive signal distribution, such as FTTH (Fiber to the Home), PON (Passive Optical Network), and CATV (Cable Television) networks.
Encased in a durable steel tube, the splitter features a bare Planar Lightwave Circuit (PLC) design that ensures reliable and high-performance signal distribution. It operates across a broad wavelength range of 1260 nm to 1650 nm, accommodating both 1310 nm and 1550 nm signals. With a typical insertion loss of **15.0 dB and a high return loss of **50 dB, it minimizes signal degradation and reflections, ensuring optimal performance.
The device is designed with 250µm tight-buffered singlemode fibers, offering both flexibility and protection. Its compact steel tube construction provides robust mechanical protection while maintaining a small footprint for easy installation in splice trays or enclosures.
Built to withstand harsh environmental conditions, the splitter operates reliably within a temperature range of -40°C to +85°C and can handle humidity levels up to 95%. The clear port labeling and accessibility features facilitate easy installation and maintenance.
Compliant with industry standards such as Telcordia GR-1209, GR-1221, and RoHS, the 1×32 Bare PLC Steel Tube Splitter ensures high reliability and safety, making it a dependable choice for demanding optical network applications.
-
Add to cart
1X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1×32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a robust and efficient optical splitter designed for high-density fiber optic networks. This device distributes a single input signal to 32 output fibers, making it ideal for applications requiring extensive signal distribution, such as FTTH (Fiber to the Home), PON (Passive Optical Network), and CATV (Cable Television) networks.
Encased in a durable steel tube, the splitter features a bare Planar Lightwave Circuit (PLC) design that ensures reliable and high-performance signal distribution. It operates across a broad wavelength range of 1260 nm to 1650 nm, accommodating both 1310 nm and 1550 nm signals. With a typical insertion loss of **15.0 dB and a high return loss of **50 dB, it minimizes signal degradation and reflections, ensuring optimal performance.
The device is designed with 250µm tight-buffered singlemode fibers, offering both flexibility and protection. Its compact steel tube construction provides robust mechanical protection while maintaining a small footprint for easy installation in splice trays or enclosures.
Built to withstand harsh environmental conditions, the splitter operates reliably within a temperature range of -40°C to +85°C and can handle humidity levels up to 95%. The clear port labeling and accessibility features facilitate easy installation and maintenance.
Compliant with industry standards such as Telcordia GR-1209, GR-1221, and RoHS, the 1×32 Bare PLC Steel Tube Splitter ensures high reliability and safety, making it a dependable choice for demanding optical network applications.
-
Add to cart1X4 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1×4 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a high-performance optical splitter designed to efficiently distribute a single input signal to four output fibers. Its bare PLC (Planar Lightwave Circuit) design is housed within a durable steel tube, providing robust protection and mechanical strength.
This splitter operates across a wavelength range of 1260 nm to 1650 nm, making it suitable for both 1310 nm and 1550 nm applications. It features a typical insertion loss of **7.5 dB and a high return loss of **50 dB, ensuring minimal signal degradation and reflection. With a uniformity of **1.2 dB and a polarization dependent loss (PDL) of **0.2 dB, the device delivers consistent and reliable signal distribution.
The splitter uses 250µm tight-buffered singlemode fibers, offering flexibility and protection. It is designed to withstand extreme temperatures from -40°C to +85°C, making it suitable for a wide range of environmental conditions.
The compact steel tube design allows for easy installation in splice trays or enclosures, and it includes features for clear port labeling and maintenance. Compliant with industry standards such as Telcordia GR-1209, GR-1221, and RoHS, the 1×4 Bare PLC Steel Tube Splitter is a dependable and efficient choice for high-speed and high-density fiber optic applications, including FTTH, PON, and CATV networks.
-
Add to cart
1X4 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1×4 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a high-performance optical splitter designed to efficiently distribute a single input signal to four output fibers. Its bare PLC (Planar Lightwave Circuit) design is housed within a durable steel tube, providing robust protection and mechanical strength.
This splitter operates across a wavelength range of 1260 nm to 1650 nm, making it suitable for both 1310 nm and 1550 nm applications. It features a typical insertion loss of **7.5 dB and a high return loss of **50 dB, ensuring minimal signal degradation and reflection. With a uniformity of **1.2 dB and a polarization dependent loss (PDL) of **0.2 dB, the device delivers consistent and reliable signal distribution.
The splitter uses 250µm tight-buffered singlemode fibers, offering flexibility and protection. It is designed to withstand extreme temperatures from -40°C to +85°C, making it suitable for a wide range of environmental conditions.
The compact steel tube design allows for easy installation in splice trays or enclosures, and it includes features for clear port labeling and maintenance. Compliant with industry standards such as Telcordia GR-1209, GR-1221, and RoHS, the 1×4 Bare PLC Steel Tube Splitter is a dependable and efficient choice for high-speed and high-density fiber optic applications, including FTTH, PON, and CATV networks.
-
Add to cart
1X4 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1×4 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a high-performance optical splitter designed to efficiently distribute a single input signal to four output fibers. Its bare PLC (Planar Lightwave Circuit) design is housed within a durable steel tube, providing robust protection and mechanical strength.
This splitter operates across a wavelength range of 1260 nm to 1650 nm, making it suitable for both 1310 nm and 1550 nm applications. It features a typical insertion loss of **7.5 dB and a high return loss of **50 dB, ensuring minimal signal degradation and reflection. With a uniformity of **1.2 dB and a polarization dependent loss (PDL) of **0.2 dB, the device delivers consistent and reliable signal distribution.
The splitter uses 250µm tight-buffered singlemode fibers, offering flexibility and protection. It is designed to withstand extreme temperatures from -40°C to +85°C, making it suitable for a wide range of environmental conditions.
The compact steel tube design allows for easy installation in splice trays or enclosures, and it includes features for clear port labeling and maintenance. Compliant with industry standards such as Telcordia GR-1209, GR-1221, and RoHS, the 1×4 Bare PLC Steel Tube Splitter is a dependable and efficient choice for high-speed and high-density fiber optic applications, including FTTH, PON, and CATV networks.
-
Add to cart1X64 blockless 900µm fiber LC/PC PLC Fiber splitter connectors
The 1×64 Blockless 900µm Fiber LC/PC PLC Fiber Splitter is a high-performance optical splitter designed for distributing a single input signal to 64 output fibers. Featuring a compact, blockless design, this splitter is ideal for space-constrained installations and provides efficient signal distribution in fiber optic networks.
It uses LC/PC connectors with a physical contact polish to ensure minimal insertion loss and back reflection. The splitter supports a wide wavelength range of 1260 nm to 1650 nm and offers a typical insertion loss of **20.5 dB, with high return loss of **50 dB and uniformity of **2.0 dB.
The device is equipped with 900µm tight-buffered fibers, providing enhanced flexibility and durability. Designed to meet industry standards such as Telcordia GR-1209, GR-1221, and RoHS, it ensures reliable and consistent performance across various network applications including FTTH, PON, and CATV. The splitter is easy to install and maintain, making it a practical solution for high-density fiber optic deployments.
Product Name: Fiber Optic PLC Splitter 1×16 Blockless With LC APC 9 / 125**m Connector Configuration Type: 1×16
Package Style: Mini Module Connector Type: LC/APC
Fiber Type: Singlemode Return Loss: **60dB
Operating/Storage Temperature: -40~85°C Directivity: **55dB
High Light:
rack mount plc splitter,
plc splitter module
-
Add to cart
1X64 blockless 900µm fiber LC/PC PLC Fiber splitter connectors
The 1×64 Blockless 900µm Fiber LC/PC PLC Fiber Splitter is a high-performance optical splitter designed for distributing a single input signal to 64 output fibers. Featuring a compact, blockless design, this splitter is ideal for space-constrained installations and provides efficient signal distribution in fiber optic networks.
It uses LC/PC connectors with a physical contact polish to ensure minimal insertion loss and back reflection. The splitter supports a wide wavelength range of 1260 nm to 1650 nm and offers a typical insertion loss of **20.5 dB, with high return loss of **50 dB and uniformity of **2.0 dB.
The device is equipped with 900µm tight-buffered fibers, providing enhanced flexibility and durability. Designed to meet industry standards such as Telcordia GR-1209, GR-1221, and RoHS, it ensures reliable and consistent performance across various network applications including FTTH, PON, and CATV. The splitter is easy to install and maintain, making it a practical solution for high-density fiber optic deployments.
Product Name: Fiber Optic PLC Splitter 1×16 Blockless With LC APC 9 / 125**m Connector Configuration Type: 1×16
Package Style: Mini Module Connector Type: LC/APC
Fiber Type: Singlemode Return Loss: **60dB
Operating/Storage Temperature: -40~85°C Directivity: **55dB
High Light:
rack mount plc splitter,
plc splitter module
-
Add to cart
1X64 blockless 900µm fiber LC/PC PLC Fiber splitter connectors
The 1×64 Blockless 900µm Fiber LC/PC PLC Fiber Splitter is a high-performance optical splitter designed for distributing a single input signal to 64 output fibers. Featuring a compact, blockless design, this splitter is ideal for space-constrained installations and provides efficient signal distribution in fiber optic networks.
It uses LC/PC connectors with a physical contact polish to ensure minimal insertion loss and back reflection. The splitter supports a wide wavelength range of 1260 nm to 1650 nm and offers a typical insertion loss of **20.5 dB, with high return loss of **50 dB and uniformity of **2.0 dB.
The device is equipped with 900µm tight-buffered fibers, providing enhanced flexibility and durability. Designed to meet industry standards such as Telcordia GR-1209, GR-1221, and RoHS, it ensures reliable and consistent performance across various network applications including FTTH, PON, and CATV. The splitter is easy to install and maintain, making it a practical solution for high-density fiber optic deployments.
Product Name: Fiber Optic PLC Splitter 1×16 Blockless With LC APC 9 / 125**m Connector Configuration Type: 1×16
Package Style: Mini Module Connector Type: LC/APC
Fiber Type: Singlemode Return Loss: **60dB
Operating/Storage Temperature: -40~85°C Directivity: **55dB
High Light:
rack mount plc splitter,
plc splitter module
-
Add to cart1X8 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1X8 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a high-performance optical device designed for precise splitting and distribution of singlemode optical signals across multiple pathways. Utilizing advanced Planar Lightwave Circuit (PLC) technology, this splitter features a 1×8 configuration, allowing a single input to be evenly divided into eight outputs, making it ideal for various fiber optic network applications.
Encased in a compact and durable bare steel tube, this splitter is built to withstand environmental and mechanical stresses, offering robust protection for the internal fibers. The use of a stainless steel strength member ensures durability and stability, while the bare fiber ends provide flexibility for easy integration through fusion or mechanical splicing.
Operating over a broad wavelength range of 1260 nm to 1650 nm, the splitter covers multiple bands (O, E, S, C, and L), ensuring compatibility with a wide range of optical systems. It exhibits excellent optical performance with typical insertion loss values of ** 10.5 dB and uniformity of ** 0.8 dB, guaranteeing consistent signal distribution across all output ports. The high return loss of ** 55 dB minimizes back reflections, and a low polarization dependent loss (PDL) of ** 0.2 dB ensures stable performance across different polarization states.
The 1X8 Bare PLC Steel Tube Fiber Splitter is designed to operate efficiently in diverse environmental conditions, with an operating temperature range from -40°C to +85°C and humidity tolerance up to 95%. Compliant with industry standards such as Telcordia GR-1209 and GR-1221, as well as RoHS environmental regulations, this splitter offers reliable and environmentally safe performance.
Ideal for use in telecommunications, data centers, FTTH (Fiber to the Home), passive optical networks (PON), and CATV systems, this fiber splitter provides a cost-effective solution for signal management and distribution. Its compact and lightweight design facilitates easy installation and integration, making it a versatile component for expanding and optimizing fiber optic networks. With options for customization, including various fiber lengths and connector configurations, this splitter can be tailored to meet specific network requirements.
-
Add to cart
1X8 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1X8 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a high-performance optical device designed for precise splitting and distribution of singlemode optical signals across multiple pathways. Utilizing advanced Planar Lightwave Circuit (PLC) technology, this splitter features a 1×8 configuration, allowing a single input to be evenly divided into eight outputs, making it ideal for various fiber optic network applications.
Encased in a compact and durable bare steel tube, this splitter is built to withstand environmental and mechanical stresses, offering robust protection for the internal fibers. The use of a stainless steel strength member ensures durability and stability, while the bare fiber ends provide flexibility for easy integration through fusion or mechanical splicing.
Operating over a broad wavelength range of 1260 nm to 1650 nm, the splitter covers multiple bands (O, E, S, C, and L), ensuring compatibility with a wide range of optical systems. It exhibits excellent optical performance with typical insertion loss values of ** 10.5 dB and uniformity of ** 0.8 dB, guaranteeing consistent signal distribution across all output ports. The high return loss of ** 55 dB minimizes back reflections, and a low polarization dependent loss (PDL) of ** 0.2 dB ensures stable performance across different polarization states.
The 1X8 Bare PLC Steel Tube Fiber Splitter is designed to operate efficiently in diverse environmental conditions, with an operating temperature range from -40°C to +85°C and humidity tolerance up to 95%. Compliant with industry standards such as Telcordia GR-1209 and GR-1221, as well as RoHS environmental regulations, this splitter offers reliable and environmentally safe performance.
Ideal for use in telecommunications, data centers, FTTH (Fiber to the Home), passive optical networks (PON), and CATV systems, this fiber splitter provides a cost-effective solution for signal management and distribution. Its compact and lightweight design facilitates easy installation and integration, making it a versatile component for expanding and optimizing fiber optic networks. With options for customization, including various fiber lengths and connector configurations, this splitter can be tailored to meet specific network requirements.
-
Add to cart
1X8 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 1X8 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a high-performance optical device designed for precise splitting and distribution of singlemode optical signals across multiple pathways. Utilizing advanced Planar Lightwave Circuit (PLC) technology, this splitter features a 1×8 configuration, allowing a single input to be evenly divided into eight outputs, making it ideal for various fiber optic network applications.
Encased in a compact and durable bare steel tube, this splitter is built to withstand environmental and mechanical stresses, offering robust protection for the internal fibers. The use of a stainless steel strength member ensures durability and stability, while the bare fiber ends provide flexibility for easy integration through fusion or mechanical splicing.
Operating over a broad wavelength range of 1260 nm to 1650 nm, the splitter covers multiple bands (O, E, S, C, and L), ensuring compatibility with a wide range of optical systems. It exhibits excellent optical performance with typical insertion loss values of ** 10.5 dB and uniformity of ** 0.8 dB, guaranteeing consistent signal distribution across all output ports. The high return loss of ** 55 dB minimizes back reflections, and a low polarization dependent loss (PDL) of ** 0.2 dB ensures stable performance across different polarization states.
The 1X8 Bare PLC Steel Tube Fiber Splitter is designed to operate efficiently in diverse environmental conditions, with an operating temperature range from -40°C to +85°C and humidity tolerance up to 95%. Compliant with industry standards such as Telcordia GR-1209 and GR-1221, as well as RoHS environmental regulations, this splitter offers reliable and environmentally safe performance.
Ideal for use in telecommunications, data centers, FTTH (Fiber to the Home), passive optical networks (PON), and CATV systems, this fiber splitter provides a cost-effective solution for signal management and distribution. Its compact and lightweight design facilitates easy installation and integration, making it a versatile component for expanding and optimizing fiber optic networks. With options for customization, including various fiber lengths and connector configurations, this splitter can be tailored to meet specific network requirements.
-
Add to cart2 Core FO Fibre Access Terminal Box (ATB) SC/UPS Adapter
The 2 Core Fiber Optic Access Terminal Box (ATB) is a compact and reliable solution designed for managing and terminating fiber optic connections in small network environments. This terminal box is perfect for applications such as Fiber to the Home (FTTH), small office networks, and telecommunications setups where space and efficiency are key.
This terminal box can accommodate up to 2 fiber cores and is equipped with a single SC/UPC simplex adapter. The SC/UPC adapter ensures high-quality optical performance with minimal signal loss, featuring a maximum insertion loss of ** 0.2 dB and a return loss of ** 50 dB, which guarantees optimal network performance and signal integrity.
Constructed from durable materials such as cold-rolled steel, ABS plastic, or polycarbonate, the ATB features a powder-coated or UV-resistant finish for added protection against environmental factors. Its compact and lightweight design includes integrated cable management features to keep fiber routing organized and secure. The terminal box supports various cable types, such as loose tube and tight-buffered cables, with rear or side cable entry ports equipped with strain relief for easy installation and maintenance.
Designed to perform reliably in a range of environmental conditions, the terminal box operates within a temperature range of -20°C to +60°C and can withstand humidity levels up to 95%. It complies with industry standards, including Telcordia GR-326, GR-449, and IEC 61754, ensuring that it meets global regulations for high-quality fiber optic components.
Installation is straightforward, with options for wall mounting or desktop placement. The terminal box comes with mounting brackets or adhesive pads for secure installation and features a front or top access design with a secure latching mechanism for easy access to internal components. Integrated grounding points provide additional safety, and passive ventilation slots help prevent overheating in environments where temperature control is essential.
Overall, the 2 Core Fiber Optic Access Terminal Box (ATB) is an ideal choice for small-scale fiber optic network installations, offering durable construction, excellent optical performance, and ease of use. It provides a dependable solution for efficiently managing fiber connections in FTTH, telecommunications, and small enterprise networks.
-
Add to cart
2 Core FO Fibre Access Terminal Box (ATB) SC/UPS Adapter
The 2 Core Fiber Optic Access Terminal Box (ATB) is a compact and reliable solution designed for managing and terminating fiber optic connections in small network environments. This terminal box is perfect for applications such as Fiber to the Home (FTTH), small office networks, and telecommunications setups where space and efficiency are key.
This terminal box can accommodate up to 2 fiber cores and is equipped with a single SC/UPC simplex adapter. The SC/UPC adapter ensures high-quality optical performance with minimal signal loss, featuring a maximum insertion loss of ** 0.2 dB and a return loss of ** 50 dB, which guarantees optimal network performance and signal integrity.
Constructed from durable materials such as cold-rolled steel, ABS plastic, or polycarbonate, the ATB features a powder-coated or UV-resistant finish for added protection against environmental factors. Its compact and lightweight design includes integrated cable management features to keep fiber routing organized and secure. The terminal box supports various cable types, such as loose tube and tight-buffered cables, with rear or side cable entry ports equipped with strain relief for easy installation and maintenance.
Designed to perform reliably in a range of environmental conditions, the terminal box operates within a temperature range of -20°C to +60°C and can withstand humidity levels up to 95%. It complies with industry standards, including Telcordia GR-326, GR-449, and IEC 61754, ensuring that it meets global regulations for high-quality fiber optic components.
Installation is straightforward, with options for wall mounting or desktop placement. The terminal box comes with mounting brackets or adhesive pads for secure installation and features a front or top access design with a secure latching mechanism for easy access to internal components. Integrated grounding points provide additional safety, and passive ventilation slots help prevent overheating in environments where temperature control is essential.
Overall, the 2 Core Fiber Optic Access Terminal Box (ATB) is an ideal choice for small-scale fiber optic network installations, offering durable construction, excellent optical performance, and ease of use. It provides a dependable solution for efficiently managing fiber connections in FTTH, telecommunications, and small enterprise networks.
-
Add to cart
2 Core FO Fibre Access Terminal Box (ATB) SC/UPS Adapter
The 2 Core Fiber Optic Access Terminal Box (ATB) is a compact and reliable solution designed for managing and terminating fiber optic connections in small network environments. This terminal box is perfect for applications such as Fiber to the Home (FTTH), small office networks, and telecommunications setups where space and efficiency are key.
This terminal box can accommodate up to 2 fiber cores and is equipped with a single SC/UPC simplex adapter. The SC/UPC adapter ensures high-quality optical performance with minimal signal loss, featuring a maximum insertion loss of ** 0.2 dB and a return loss of ** 50 dB, which guarantees optimal network performance and signal integrity.
Constructed from durable materials such as cold-rolled steel, ABS plastic, or polycarbonate, the ATB features a powder-coated or UV-resistant finish for added protection against environmental factors. Its compact and lightweight design includes integrated cable management features to keep fiber routing organized and secure. The terminal box supports various cable types, such as loose tube and tight-buffered cables, with rear or side cable entry ports equipped with strain relief for easy installation and maintenance.
Designed to perform reliably in a range of environmental conditions, the terminal box operates within a temperature range of -20°C to +60°C and can withstand humidity levels up to 95%. It complies with industry standards, including Telcordia GR-326, GR-449, and IEC 61754, ensuring that it meets global regulations for high-quality fiber optic components.
Installation is straightforward, with options for wall mounting or desktop placement. The terminal box comes with mounting brackets or adhesive pads for secure installation and features a front or top access design with a secure latching mechanism for easy access to internal components. Integrated grounding points provide additional safety, and passive ventilation slots help prevent overheating in environments where temperature control is essential.
Overall, the 2 Core Fiber Optic Access Terminal Box (ATB) is an ideal choice for small-scale fiber optic network installations, offering durable construction, excellent optical performance, and ease of use. It provides a dependable solution for efficiently managing fiber connections in FTTH, telecommunications, and small enterprise networks.
-
Add to cart2 Core SingleMode Indoor FTTH Drop Cable
The 2 Core SingleMode Indoor Fiber Optic FTTH Drop Cable is designed to deliver high-speed, reliable internet and data connectivity for Fiber to the Home (FTTH) applications. This cable features a compact and lightweight design, making it ideal for indoor installations in residential and commercial environments.
Crafted with two single-mode fiber cores, the cable ensures minimal signal loss, with maximum attenuation levels of ** 0.40 dB/km at 1310 nm and ** 0.25 dB/km at 1550 nm. The tight-buffered construction, reinforced with aramid yarn or fiberglass strength members, enhances durability and flexibility, ensuring the cable can withstand bending and manipulation during installation.
The outer jacket, made from LSZH (Low Smoke Zero Halogen) or PVC material, provides protection against environmental factors while maintaining safety standards in case of fire. The cable can operate effectively in a temperature range of -20°C to +60°C, making it suitable for various indoor conditions.
With an outer diameter of approximately 2.0 mm to 3.0 mm, the cable is easy to manage and install. Its dynamic bending radius is ** 20 times the outer diameter, while the static bending radius is ** 10 times, ensuring that the cable maintains performance even in tight spaces.
Color-coded fibers (typically Blue and Yellow) simplify installation and identification, while the cable’s water resistance (usually rated IP67) ensures reliable performance in damp environments. Overall, this 2 Core SingleMode Indoor Fiber Optic FTTH Drop Cable is an excellent choice for connecting fiber networks directly to end-users, providing exceptional speed and reliability for modern telecommunications.
-
Add to cart
2 Core SingleMode Indoor FTTH Drop Cable
The 2 Core SingleMode Indoor Fiber Optic FTTH Drop Cable is designed to deliver high-speed, reliable internet and data connectivity for Fiber to the Home (FTTH) applications. This cable features a compact and lightweight design, making it ideal for indoor installations in residential and commercial environments.
Crafted with two single-mode fiber cores, the cable ensures minimal signal loss, with maximum attenuation levels of ** 0.40 dB/km at 1310 nm and ** 0.25 dB/km at 1550 nm. The tight-buffered construction, reinforced with aramid yarn or fiberglass strength members, enhances durability and flexibility, ensuring the cable can withstand bending and manipulation during installation.
The outer jacket, made from LSZH (Low Smoke Zero Halogen) or PVC material, provides protection against environmental factors while maintaining safety standards in case of fire. The cable can operate effectively in a temperature range of -20°C to +60°C, making it suitable for various indoor conditions.
With an outer diameter of approximately 2.0 mm to 3.0 mm, the cable is easy to manage and install. Its dynamic bending radius is ** 20 times the outer diameter, while the static bending radius is ** 10 times, ensuring that the cable maintains performance even in tight spaces.
Color-coded fibers (typically Blue and Yellow) simplify installation and identification, while the cable’s water resistance (usually rated IP67) ensures reliable performance in damp environments. Overall, this 2 Core SingleMode Indoor Fiber Optic FTTH Drop Cable is an excellent choice for connecting fiber networks directly to end-users, providing exceptional speed and reliability for modern telecommunications.
-
Add to cart
2 Core SingleMode Indoor FTTH Drop Cable
The 2 Core SingleMode Indoor Fiber Optic FTTH Drop Cable is designed to deliver high-speed, reliable internet and data connectivity for Fiber to the Home (FTTH) applications. This cable features a compact and lightweight design, making it ideal for indoor installations in residential and commercial environments.
Crafted with two single-mode fiber cores, the cable ensures minimal signal loss, with maximum attenuation levels of ** 0.40 dB/km at 1310 nm and ** 0.25 dB/km at 1550 nm. The tight-buffered construction, reinforced with aramid yarn or fiberglass strength members, enhances durability and flexibility, ensuring the cable can withstand bending and manipulation during installation.
The outer jacket, made from LSZH (Low Smoke Zero Halogen) or PVC material, provides protection against environmental factors while maintaining safety standards in case of fire. The cable can operate effectively in a temperature range of -20°C to +60°C, making it suitable for various indoor conditions.
With an outer diameter of approximately 2.0 mm to 3.0 mm, the cable is easy to manage and install. Its dynamic bending radius is ** 20 times the outer diameter, while the static bending radius is ** 10 times, ensuring that the cable maintains performance even in tight spaces.
Color-coded fibers (typically Blue and Yellow) simplify installation and identification, while the cable’s water resistance (usually rated IP67) ensures reliable performance in damp environments. Overall, this 2 Core SingleMode Indoor Fiber Optic FTTH Drop Cable is an excellent choice for connecting fiber networks directly to end-users, providing exceptional speed and reliability for modern telecommunications.
-
Add to cart2 Core SingleMode Outdoor FTTH Drop Cable
The 2 Core SingleMode Outdoor FTTH Drop Cable (1KM) is specifically designed for high-performance telecommunications and data networking applications, particularly in Fiber-to-the-Home (FTTH) installations. This cable features two singlemode fibers that provide efficient, long-distance data transmission, making it ideal for connecting homes and businesses to fiber optic networks.
Constructed with a robust design, the cable typically includes a loose tube or tight-buffered configuration, offering excellent protection against environmental factors. The outer jacket is made from UV-resistant materials, such as low smoke zero halogen (LSZH) or polyethylene (PE), ensuring durability and resistance to outdoor conditions. It is reinforced with aramid yarn, adding strength and preventing damage during installation or use.
With a length of 1 kilometer (1000 meters), this cable is engineered to facilitate extensive reach while maintaining optimal signal integrity. It operates effectively across a wide temperature range, from -40°C to +70°C, making it suitable for various climates. The design accommodates a minimum bending radius of 10 times the outer diameter, allowing for flexible installation in tight spaces.
Optimized for wavelengths of 1310 nm and 1550 nm, the 2 Core SingleMode Outdoor FTTH Drop Cable ensures low attenuation and high data transmission rates, supporting modern high-speed internet and communication services. Its versatility in connector options (such as SC or LC) enhances compatibility with different network equipment.
-
Add to cart
2 Core SingleMode Outdoor FTTH Drop Cable
The 2 Core SingleMode Outdoor FTTH Drop Cable (1KM) is specifically designed for high-performance telecommunications and data networking applications, particularly in Fiber-to-the-Home (FTTH) installations. This cable features two singlemode fibers that provide efficient, long-distance data transmission, making it ideal for connecting homes and businesses to fiber optic networks.
Constructed with a robust design, the cable typically includes a loose tube or tight-buffered configuration, offering excellent protection against environmental factors. The outer jacket is made from UV-resistant materials, such as low smoke zero halogen (LSZH) or polyethylene (PE), ensuring durability and resistance to outdoor conditions. It is reinforced with aramid yarn, adding strength and preventing damage during installation or use.
With a length of 1 kilometer (1000 meters), this cable is engineered to facilitate extensive reach while maintaining optimal signal integrity. It operates effectively across a wide temperature range, from -40°C to +70°C, making it suitable for various climates. The design accommodates a minimum bending radius of 10 times the outer diameter, allowing for flexible installation in tight spaces.
Optimized for wavelengths of 1310 nm and 1550 nm, the 2 Core SingleMode Outdoor FTTH Drop Cable ensures low attenuation and high data transmission rates, supporting modern high-speed internet and communication services. Its versatility in connector options (such as SC or LC) enhances compatibility with different network equipment.
-
Add to cart
2 Core SingleMode Outdoor FTTH Drop Cable
The 2 Core SingleMode Outdoor FTTH Drop Cable (1KM) is specifically designed for high-performance telecommunications and data networking applications, particularly in Fiber-to-the-Home (FTTH) installations. This cable features two singlemode fibers that provide efficient, long-distance data transmission, making it ideal for connecting homes and businesses to fiber optic networks.
Constructed with a robust design, the cable typically includes a loose tube or tight-buffered configuration, offering excellent protection against environmental factors. The outer jacket is made from UV-resistant materials, such as low smoke zero halogen (LSZH) or polyethylene (PE), ensuring durability and resistance to outdoor conditions. It is reinforced with aramid yarn, adding strength and preventing damage during installation or use.
With a length of 1 kilometer (1000 meters), this cable is engineered to facilitate extensive reach while maintaining optimal signal integrity. It operates effectively across a wide temperature range, from -40°C to +70°C, making it suitable for various climates. The design accommodates a minimum bending radius of 10 times the outer diameter, allowing for flexible installation in tight spaces.
Optimized for wavelengths of 1310 nm and 1550 nm, the 2 Core SingleMode Outdoor FTTH Drop Cable ensures low attenuation and high data transmission rates, supporting modern high-speed internet and communication services. Its versatility in connector options (such as SC or LC) enhances compatibility with different network equipment.
-
Add to cart2 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors
The 2 x 32 PVC 0.9mm Fiber Jacket SC/PC Rack Mount Splitter is a high-performance optical distribution device designed for efficient signal splitting in fiber optic networks. This splitter accommodates two input fibers and distributes optical signals evenly across 32 output fibers, making it ideal for applications such as FTTH, PON, and CATV networks.
Housed in a compact 19-inch rack-mountable enclosure, this splitter features SC/PC connectors with a physical contact polish to minimize insertion loss and back reflections, ensuring reliable signal performance. The splitter is constructed with singlemode fibers that comply with ITU-T G.657A and G.652D standards and includes a durable PVC 0.9mm fiber jacket for added protection and flexibility.
With a typical insertion loss of **16.5 dB, high return loss of **50 dB, and excellent uniformity, the splitter offers consistent performance across a wide wavelength range of 1260 nm to 1650 nm. Designed for versatility, it is suitable for installation in various environmental conditions, operating within temperatures from -40°C to +85°C, and is compliant with industry standards, including Telcordia GR-1209, GR-1221, and RoHS.
The device also features integrated cable management and clear labeling for easy installation and maintenance, making it a practical and reliable choice for modern high-density fiber optic networks.
Specifications:
Parameter Value
Product Type 1×2/2×2 1×4/2×4 1×8/2×8 1×16/2×16 1×32/2×32 1×64/2×64 1×128/2×128
Wavelength(nm) 1260~1650
I.L(dB) Typ. 3.6/4.2 7.1/7.2 10.4/10.6 13.6/13.8 17.2/17.5 20.1/20.5 25.0/25.2
Max. 4.3/4.5 7.4/7.6 10.7/11.0 14.0/14.8 18.0/18.0 21.5/21.5 25.8/25.8
Uniformity(Max.)(dB) 0.5/0.8 0.8/1.0 1.0/1.2 1.4/1.5 1.6/1.8 2.0/2.5 2.6/3.0
PDL(Max.)(dB) 0.2/0.2 0.3/0.3 0.3/0.3 0.3/0.3 0.3/03 0.5/0.5 0.8/1.0
TDL(Max.)(dB) 0.5
R.L(dB) **55(APC)/**55(UPC)
Directivity(dB) **55
Operating & Storage Temperature -40~+85
-
Add to cart
2 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors
The 2 x 32 PVC 0.9mm Fiber Jacket SC/PC Rack Mount Splitter is a high-performance optical distribution device designed for efficient signal splitting in fiber optic networks. This splitter accommodates two input fibers and distributes optical signals evenly across 32 output fibers, making it ideal for applications such as FTTH, PON, and CATV networks.
Housed in a compact 19-inch rack-mountable enclosure, this splitter features SC/PC connectors with a physical contact polish to minimize insertion loss and back reflections, ensuring reliable signal performance. The splitter is constructed with singlemode fibers that comply with ITU-T G.657A and G.652D standards and includes a durable PVC 0.9mm fiber jacket for added protection and flexibility.
With a typical insertion loss of **16.5 dB, high return loss of **50 dB, and excellent uniformity, the splitter offers consistent performance across a wide wavelength range of 1260 nm to 1650 nm. Designed for versatility, it is suitable for installation in various environmental conditions, operating within temperatures from -40°C to +85°C, and is compliant with industry standards, including Telcordia GR-1209, GR-1221, and RoHS.
The device also features integrated cable management and clear labeling for easy installation and maintenance, making it a practical and reliable choice for modern high-density fiber optic networks.
Specifications:
Parameter Value
Product Type 1×2/2×2 1×4/2×4 1×8/2×8 1×16/2×16 1×32/2×32 1×64/2×64 1×128/2×128
Wavelength(nm) 1260~1650
I.L(dB) Typ. 3.6/4.2 7.1/7.2 10.4/10.6 13.6/13.8 17.2/17.5 20.1/20.5 25.0/25.2
Max. 4.3/4.5 7.4/7.6 10.7/11.0 14.0/14.8 18.0/18.0 21.5/21.5 25.8/25.8
Uniformity(Max.)(dB) 0.5/0.8 0.8/1.0 1.0/1.2 1.4/1.5 1.6/1.8 2.0/2.5 2.6/3.0
PDL(Max.)(dB) 0.2/0.2 0.3/0.3 0.3/0.3 0.3/0.3 0.3/03 0.5/0.5 0.8/1.0
TDL(Max.)(dB) 0.5
R.L(dB) **55(APC)/**55(UPC)
Directivity(dB) **55
Operating & Storage Temperature -40~+85
-
Add to cart
2 X 32 PVC 0.9mm fiber jacket SC/PC Rack Splitter connectors
The 2 x 32 PVC 0.9mm Fiber Jacket SC/PC Rack Mount Splitter is a high-performance optical distribution device designed for efficient signal splitting in fiber optic networks. This splitter accommodates two input fibers and distributes optical signals evenly across 32 output fibers, making it ideal for applications such as FTTH, PON, and CATV networks.
Housed in a compact 19-inch rack-mountable enclosure, this splitter features SC/PC connectors with a physical contact polish to minimize insertion loss and back reflections, ensuring reliable signal performance. The splitter is constructed with singlemode fibers that comply with ITU-T G.657A and G.652D standards and includes a durable PVC 0.9mm fiber jacket for added protection and flexibility.
With a typical insertion loss of **16.5 dB, high return loss of **50 dB, and excellent uniformity, the splitter offers consistent performance across a wide wavelength range of 1260 nm to 1650 nm. Designed for versatility, it is suitable for installation in various environmental conditions, operating within temperatures from -40°C to +85°C, and is compliant with industry standards, including Telcordia GR-1209, GR-1221, and RoHS.
The device also features integrated cable management and clear labeling for easy installation and maintenance, making it a practical and reliable choice for modern high-density fiber optic networks.
Specifications:
Parameter Value
Product Type 1×2/2×2 1×4/2×4 1×8/2×8 1×16/2×16 1×32/2×32 1×64/2×64 1×128/2×128
Wavelength(nm) 1260~1650
I.L(dB) Typ. 3.6/4.2 7.1/7.2 10.4/10.6 13.6/13.8 17.2/17.5 20.1/20.5 25.0/25.2
Max. 4.3/4.5 7.4/7.6 10.7/11.0 14.0/14.8 18.0/18.0 21.5/21.5 25.8/25.8
Uniformity(Max.)(dB) 0.5/0.8 0.8/1.0 1.0/1.2 1.4/1.5 1.6/1.8 2.0/2.5 2.6/3.0
PDL(Max.)(dB) 0.2/0.2 0.3/0.3 0.3/0.3 0.3/0.3 0.3/03 0.5/0.5 0.8/1.0
TDL(Max.)(dB) 0.5
R.L(dB) **55(APC)/**55(UPC)
Directivity(dB) **55
Operating & Storage Temperature -40~+85
-
Add to cart20km Transceiver 1000 Base-LX SPF Mini GBC Module
The 20km Transceiver 1000Base-LX SFP Mini GBIC Module is a high-performance optical transceiver designed for long-distance Gigabit Ethernet connectivity. It supports data rates up to 1 Gbps and operates over singlemode fiber with a maximum reach of 20 kilometers.
Featuring a 1310 nm wavelength, this module is equipped with LC duplex connectors and provides reliable, high-speed data transmission with a link budget of 11 dB and a typical receiver sensitivity of -20 dBm. It operates within a temperature range of 0°C to +70°C and is compliant with IEEE 802.3z standards.
The module is hot-swappable, allowing for easy replacement without powering down, and includes built-in digital diagnostic monitoring (DDM) for real-time performance tracking. It adheres to safety and environmental standards, including RoHS compliance, making it a versatile and dependable solution for high-speed networking applications.
Technical Details
MANUFACTURER H!Fiber.com
PART NUMBER ASF13-24-10-D-Net(2pcs)
ITEM WEIGHT 2.22 ounces
PACKAGE DIMENSIONS 6.69 x 4.92 x 0.75 inches
ITEM MODEL NUMBER ASF13-24-10-D-Net(2pcs)
IS DISCONTINUED BY MANUFACTURER No
SIZE 1000Base-LX: 10km
COLOR For Netgear
ITEM PACKAGE QUANTITY 1
BATTERIES INCLUDED** No
BATTERIES REQUIRED** No
Compatible for Netgear AGM732F and other open equipments with 1G SFP port. 2-Pack
1000Base-LX Gigabit Ethernet, 1.25 Gbps, 1310nm wavelength ,10km reach, Singlemode,Dual LC connector.
Hot-Pluggable SFP Transceiver Module, PLUG and PLAY, with Advanced DDM Function to monitor real-time parameter and state on fiber links.
100% Each transceiver is individually done performance test and compatibility test in our Test center before packing.
Enjoy 30-day free-returned and 3-year warranty service -
Add to cart
20km Transceiver 1000 Base-LX SPF Mini GBC Module
The 20km Transceiver 1000Base-LX SFP Mini GBIC Module is a high-performance optical transceiver designed for long-distance Gigabit Ethernet connectivity. It supports data rates up to 1 Gbps and operates over singlemode fiber with a maximum reach of 20 kilometers.
Featuring a 1310 nm wavelength, this module is equipped with LC duplex connectors and provides reliable, high-speed data transmission with a link budget of 11 dB and a typical receiver sensitivity of -20 dBm. It operates within a temperature range of 0°C to +70°C and is compliant with IEEE 802.3z standards.
The module is hot-swappable, allowing for easy replacement without powering down, and includes built-in digital diagnostic monitoring (DDM) for real-time performance tracking. It adheres to safety and environmental standards, including RoHS compliance, making it a versatile and dependable solution for high-speed networking applications.
Technical Details
MANUFACTURER H!Fiber.com
PART NUMBER ASF13-24-10-D-Net(2pcs)
ITEM WEIGHT 2.22 ounces
PACKAGE DIMENSIONS 6.69 x 4.92 x 0.75 inches
ITEM MODEL NUMBER ASF13-24-10-D-Net(2pcs)
IS DISCONTINUED BY MANUFACTURER No
SIZE 1000Base-LX: 10km
COLOR For Netgear
ITEM PACKAGE QUANTITY 1
BATTERIES INCLUDED** No
BATTERIES REQUIRED** No
Compatible for Netgear AGM732F and other open equipments with 1G SFP port. 2-Pack
1000Base-LX Gigabit Ethernet, 1.25 Gbps, 1310nm wavelength ,10km reach, Singlemode,Dual LC connector.
Hot-Pluggable SFP Transceiver Module, PLUG and PLAY, with Advanced DDM Function to monitor real-time parameter and state on fiber links.
100% Each transceiver is individually done performance test and compatibility test in our Test center before packing.
Enjoy 30-day free-returned and 3-year warranty service -
Add to cart
20km Transceiver 1000 Base-LX SPF Mini GBC Module
The 20km Transceiver 1000Base-LX SFP Mini GBIC Module is a high-performance optical transceiver designed for long-distance Gigabit Ethernet connectivity. It supports data rates up to 1 Gbps and operates over singlemode fiber with a maximum reach of 20 kilometers.
Featuring a 1310 nm wavelength, this module is equipped with LC duplex connectors and provides reliable, high-speed data transmission with a link budget of 11 dB and a typical receiver sensitivity of -20 dBm. It operates within a temperature range of 0°C to +70°C and is compliant with IEEE 802.3z standards.
The module is hot-swappable, allowing for easy replacement without powering down, and includes built-in digital diagnostic monitoring (DDM) for real-time performance tracking. It adheres to safety and environmental standards, including RoHS compliance, making it a versatile and dependable solution for high-speed networking applications.
Technical Details
MANUFACTURER H!Fiber.com
PART NUMBER ASF13-24-10-D-Net(2pcs)
ITEM WEIGHT 2.22 ounces
PACKAGE DIMENSIONS 6.69 x 4.92 x 0.75 inches
ITEM MODEL NUMBER ASF13-24-10-D-Net(2pcs)
IS DISCONTINUED BY MANUFACTURER No
SIZE 1000Base-LX: 10km
COLOR For Netgear
ITEM PACKAGE QUANTITY 1
BATTERIES INCLUDED** No
BATTERIES REQUIRED** No
Compatible for Netgear AGM732F and other open equipments with 1G SFP port. 2-Pack
1000Base-LX Gigabit Ethernet, 1.25 Gbps, 1310nm wavelength ,10km reach, Singlemode,Dual LC connector.
Hot-Pluggable SFP Transceiver Module, PLUG and PLAY, with Advanced DDM Function to monitor real-time parameter and state on fiber links.
100% Each transceiver is individually done performance test and compatibility test in our Test center before packing.
Enjoy 30-day free-returned and 3-year warranty service -
Add to cart24 Core ATB Fiber Optic Access Terminal Box 24Pcs SC/UPC Simplex Adapter
The 24 Core ATB Fiber Optic Access Terminal Box is a compact and robust solution designed for efficient management and distribution of fiber optic connections in a variety of network environments. With a capacity to accommodate 24 fiber cores, this terminal box is ideal for use in telecommunications central offices, data centers, Fiber to the Home (FTTH) installations, and enterprise networks.
Equipped with 24 SC/UPC simplex adapters, the terminal box provides an organized and reliable interface for terminating and patching fiber optic cables. Each adapter is designed to deliver high optical performance, ensuring a maximum insertion loss of ** 0.2 dB per connection and a return loss of ** 50 dB, which minimizes signal degradation and reflection. The terminal box is compatible with both singlemode and multimode fibers, supporting wavelengths from 1260 nm to 1650 nm for singlemode and 850 nm and 1300 nm for multimode fibers.
Constructed from durable materials such as cold-rolled steel or ABS plastic, the terminal box features a powder-coated or UV-resistant finish to protect against environmental elements. Its compact design includes integrated cable management features that help keep fiber routing organized and secure. The box offers flexible installation options with rear or side cable entry ports, accommodating different cable types and configurations, such as loose tube or tight-buffered cables.
Designed to withstand harsh environmental conditions, the ATB operates effectively within a temperature range of -20°C to +60°C and supports humidity levels up to 95%. It adheres to industry standards including Telcordia GR-326, GR-449, and IEC 61754, ensuring high-quality performance and compliance with global regulations.
Additional features include a secure front access door with a key-locking mechanism for added security, integrated grounding points for electrical safety, and options for wall-mounting or pole-mounting installation. The terminal box also includes passive ventilation slots to prevent overheating and supports customization options for connector configurations and finishes.
Overall, the 24 Core ATB Fiber Optic Access Terminal Box offers a reliable, high-performance solution for managing fiber optic connections. Its durable construction, versatile features, and compliance with industry standards make it an excellent choice for optimizing network performance in various applications.
-
Add to cart
24 Core ATB Fiber Optic Access Terminal Box 24Pcs SC/UPC Simplex Adapter
The 24 Core ATB Fiber Optic Access Terminal Box is a compact and robust solution designed for efficient management and distribution of fiber optic connections in a variety of network environments. With a capacity to accommodate 24 fiber cores, this terminal box is ideal for use in telecommunications central offices, data centers, Fiber to the Home (FTTH) installations, and enterprise networks.
Equipped with 24 SC/UPC simplex adapters, the terminal box provides an organized and reliable interface for terminating and patching fiber optic cables. Each adapter is designed to deliver high optical performance, ensuring a maximum insertion loss of ** 0.2 dB per connection and a return loss of ** 50 dB, which minimizes signal degradation and reflection. The terminal box is compatible with both singlemode and multimode fibers, supporting wavelengths from 1260 nm to 1650 nm for singlemode and 850 nm and 1300 nm for multimode fibers.
Constructed from durable materials such as cold-rolled steel or ABS plastic, the terminal box features a powder-coated or UV-resistant finish to protect against environmental elements. Its compact design includes integrated cable management features that help keep fiber routing organized and secure. The box offers flexible installation options with rear or side cable entry ports, accommodating different cable types and configurations, such as loose tube or tight-buffered cables.
Designed to withstand harsh environmental conditions, the ATB operates effectively within a temperature range of -20°C to +60°C and supports humidity levels up to 95%. It adheres to industry standards including Telcordia GR-326, GR-449, and IEC 61754, ensuring high-quality performance and compliance with global regulations.
Additional features include a secure front access door with a key-locking mechanism for added security, integrated grounding points for electrical safety, and options for wall-mounting or pole-mounting installation. The terminal box also includes passive ventilation slots to prevent overheating and supports customization options for connector configurations and finishes.
Overall, the 24 Core ATB Fiber Optic Access Terminal Box offers a reliable, high-performance solution for managing fiber optic connections. Its durable construction, versatile features, and compliance with industry standards make it an excellent choice for optimizing network performance in various applications.
-
Add to cart
24 Core ATB Fiber Optic Access Terminal Box 24Pcs SC/UPC Simplex Adapter
The 24 Core ATB Fiber Optic Access Terminal Box is a compact and robust solution designed for efficient management and distribution of fiber optic connections in a variety of network environments. With a capacity to accommodate 24 fiber cores, this terminal box is ideal for use in telecommunications central offices, data centers, Fiber to the Home (FTTH) installations, and enterprise networks.
Equipped with 24 SC/UPC simplex adapters, the terminal box provides an organized and reliable interface for terminating and patching fiber optic cables. Each adapter is designed to deliver high optical performance, ensuring a maximum insertion loss of ** 0.2 dB per connection and a return loss of ** 50 dB, which minimizes signal degradation and reflection. The terminal box is compatible with both singlemode and multimode fibers, supporting wavelengths from 1260 nm to 1650 nm for singlemode and 850 nm and 1300 nm for multimode fibers.
Constructed from durable materials such as cold-rolled steel or ABS plastic, the terminal box features a powder-coated or UV-resistant finish to protect against environmental elements. Its compact design includes integrated cable management features that help keep fiber routing organized and secure. The box offers flexible installation options with rear or side cable entry ports, accommodating different cable types and configurations, such as loose tube or tight-buffered cables.
Designed to withstand harsh environmental conditions, the ATB operates effectively within a temperature range of -20°C to +60°C and supports humidity levels up to 95%. It adheres to industry standards including Telcordia GR-326, GR-449, and IEC 61754, ensuring high-quality performance and compliance with global regulations.
Additional features include a secure front access door with a key-locking mechanism for added security, integrated grounding points for electrical safety, and options for wall-mounting or pole-mounting installation. The terminal box also includes passive ventilation slots to prevent overheating and supports customization options for connector configurations and finishes.
Overall, the 24 Core ATB Fiber Optic Access Terminal Box offers a reliable, high-performance solution for managing fiber optic connections. Its durable construction, versatile features, and compliance with industry standards make it an excellent choice for optimizing network performance in various applications.
-
Add to cart24 Core LC/UPC ODF with 12pcs duplex LC/UPC pre-connectorized ODF
The 24 Core LC/UPC Optical Distribution Frame (ODF) with 12 pre-connectorized duplex LC/UPC adapters is a high-performance solution designed for efficient fiber optic management in telecommunications, data centers, and local area networks (LANs). This ODF provides a robust and organized platform for connecting and routing up to 24 single-mode fiber cores, making it ideal for high-density fiber installations.
The unit comes equipped with 12 pre-installed duplex LC/UPC adapters, facilitating easy and rapid connectivity. Each duplex adapter supports two channels, allowing for efficient management of both transmit and receive fibers in a single connection point. The LC connectors with UPC (Ultra Physical Contact) polish ensure minimal signal loss and high-quality performance, with typical insertion loss of ** 0.3 dB per adapter and a return loss of ** 50 dB.
Constructed with durable materials, the ODF features a metal or plastic housing and high-precision ceramic or plastic sleeves to ensure precise alignment and reliable connections. It is designed to fit into standard 19-inch racks or cabinets, and occupies just 1U of rack space, maximizing space efficiency while providing easy access for fiber management.
The ODF operates effectively within a temperature range of -20°C to 70°C and can handle up to 95% relative humidity, making it suitable for various environmental conditions. It is compliant with industry standards such as TIA/EIA-568 and IEC, and adheres to RoHS and UL safety certifications, ensuring reliability and safety in its operation.
This ODF is an excellent choice for network environments that require high-density fiber management and efficient patching capabilities. It streamlines the process of connecting and organizing fiber optic cables, providing a dependable solution for modern fiber network infrastructure.
-
Add to cart

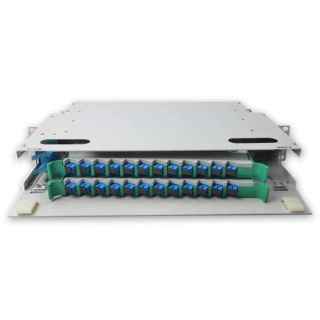

24 Core LC/UPC ODF with 12pcs duplex LC/UPC pre-connectorized ODF
The 24 Core LC/UPC Optical Distribution Frame (ODF) with 12 pre-connectorized duplex LC/UPC adapters is a high-performance solution designed for efficient fiber optic management in telecommunications, data centers, and local area networks (LANs). This ODF provides a robust and organized platform for connecting and routing up to 24 single-mode fiber cores, making it ideal for high-density fiber installations.
The unit comes equipped with 12 pre-installed duplex LC/UPC adapters, facilitating easy and rapid connectivity. Each duplex adapter supports two channels, allowing for efficient management of both transmit and receive fibers in a single connection point. The LC connectors with UPC (Ultra Physical Contact) polish ensure minimal signal loss and high-quality performance, with typical insertion loss of ** 0.3 dB per adapter and a return loss of ** 50 dB.
Constructed with durable materials, the ODF features a metal or plastic housing and high-precision ceramic or plastic sleeves to ensure precise alignment and reliable connections. It is designed to fit into standard 19-inch racks or cabinets, and occupies just 1U of rack space, maximizing space efficiency while providing easy access for fiber management.
The ODF operates effectively within a temperature range of -20°C to 70°C and can handle up to 95% relative humidity, making it suitable for various environmental conditions. It is compliant with industry standards such as TIA/EIA-568 and IEC, and adheres to RoHS and UL safety certifications, ensuring reliability and safety in its operation.
This ODF is an excellent choice for network environments that require high-density fiber management and efficient patching capabilities. It streamlines the process of connecting and organizing fiber optic cables, providing a dependable solution for modern fiber network infrastructure.
-
Add to cart
24 Core LC/UPC ODF with 12pcs duplex LC/UPC pre-connectorized ODF
The 24 Core LC/UPC Optical Distribution Frame (ODF) with 12 pre-connectorized duplex LC/UPC adapters is a high-performance solution designed for efficient fiber optic management in telecommunications, data centers, and local area networks (LANs). This ODF provides a robust and organized platform for connecting and routing up to 24 single-mode fiber cores, making it ideal for high-density fiber installations.
The unit comes equipped with 12 pre-installed duplex LC/UPC adapters, facilitating easy and rapid connectivity. Each duplex adapter supports two channels, allowing for efficient management of both transmit and receive fibers in a single connection point. The LC connectors with UPC (Ultra Physical Contact) polish ensure minimal signal loss and high-quality performance, with typical insertion loss of ** 0.3 dB per adapter and a return loss of ** 50 dB.
Constructed with durable materials, the ODF features a metal or plastic housing and high-precision ceramic or plastic sleeves to ensure precise alignment and reliable connections. It is designed to fit into standard 19-inch racks or cabinets, and occupies just 1U of rack space, maximizing space efficiency while providing easy access for fiber management.
The ODF operates effectively within a temperature range of -20°C to 70°C and can handle up to 95% relative humidity, making it suitable for various environmental conditions. It is compliant with industry standards such as TIA/EIA-568 and IEC, and adheres to RoHS and UL safety certifications, ensuring reliability and safety in its operation.
This ODF is an excellent choice for network environments that require high-density fiber management and efficient patching capabilities. It streamlines the process of connecting and organizing fiber optic cables, providing a dependable solution for modern fiber network infrastructure.
-
Add to cart24 Core Multimode Fiber Optic Cable Mtech
The 24-Core Multimode Fiber Optic Cable is a high-capacity cable designed for robust data transmission in networking and telecommunications applications. This cable features 24 multimode fibers, each with a core diameter of either 50 µm or 62.5 µm and a cladding diameter of 125 µm, providing substantial bandwidth and performance for a variety of networking needs.
The cable supports high-speed data transmission with wavelengths primarily at 850 nm and, in some cases, 1300 nm. It is typically rated as OM3 or OM4 multimode fiber, where OM3 supports up to 2 Gbps at 850 nm over 300 meters, and OM4 extends this to 400 meters, making it suitable for high-bandwidth applications.
The outer jacket of the cable is usually made from durable PVC or LSZH (Low Smoke Zero Halogen) material, providing resistance to environmental factors and flame retardance. The cable may come with additional features such as aramid yarn or fiberglass for strength and protection, ensuring durability and longevity in various installation environments.
The fiber construction can be either loose tube or tight-buffered. Loose tube construction involves fibers housed in loose tubes filled with gel or water-blocking material, which offers extra protection. Tight-buffered construction features fibers that are directly coated with a buffer layer, making it more suitable for direct termination applications.
For enhanced protection, some variants of the cable are armored with a steel layer, adding an extra level of durability to safeguard against physical damage. The cable’s temperature range typically spans from -20°C to 70°C (-4°F to 158°F) for operation and from -40°C to 85°C (-40°F to 185°F) for storage, making it adaptable to various environmental conditions.
The 24-Core Multimode Fiber Optic Cable is engineered to support high-performance data networks, data centers, and enterprise infrastructures, providing reliable and efficient connectivity with high bandwidth and capacity. Its construction ensures resilience and flexibility, making it a valuable component for modern high-speed network deployments.
-
Add to cart
24 Core Multimode Fiber Optic Cable Mtech
The 24-Core Multimode Fiber Optic Cable is a high-capacity cable designed for robust data transmission in networking and telecommunications applications. This cable features 24 multimode fibers, each with a core diameter of either 50 µm or 62.5 µm and a cladding diameter of 125 µm, providing substantial bandwidth and performance for a variety of networking needs.
The cable supports high-speed data transmission with wavelengths primarily at 850 nm and, in some cases, 1300 nm. It is typically rated as OM3 or OM4 multimode fiber, where OM3 supports up to 2 Gbps at 850 nm over 300 meters, and OM4 extends this to 400 meters, making it suitable for high-bandwidth applications.
The outer jacket of the cable is usually made from durable PVC or LSZH (Low Smoke Zero Halogen) material, providing resistance to environmental factors and flame retardance. The cable may come with additional features such as aramid yarn or fiberglass for strength and protection, ensuring durability and longevity in various installation environments.
The fiber construction can be either loose tube or tight-buffered. Loose tube construction involves fibers housed in loose tubes filled with gel or water-blocking material, which offers extra protection. Tight-buffered construction features fibers that are directly coated with a buffer layer, making it more suitable for direct termination applications.
For enhanced protection, some variants of the cable are armored with a steel layer, adding an extra level of durability to safeguard against physical damage. The cable’s temperature range typically spans from -20°C to 70°C (-4°F to 158°F) for operation and from -40°C to 85°C (-40°F to 185°F) for storage, making it adaptable to various environmental conditions.
The 24-Core Multimode Fiber Optic Cable is engineered to support high-performance data networks, data centers, and enterprise infrastructures, providing reliable and efficient connectivity with high bandwidth and capacity. Its construction ensures resilience and flexibility, making it a valuable component for modern high-speed network deployments.
-
Add to cart
24 Core Multimode Fiber Optic Cable Mtech
The 24-Core Multimode Fiber Optic Cable is a high-capacity cable designed for robust data transmission in networking and telecommunications applications. This cable features 24 multimode fibers, each with a core diameter of either 50 µm or 62.5 µm and a cladding diameter of 125 µm, providing substantial bandwidth and performance for a variety of networking needs.
The cable supports high-speed data transmission with wavelengths primarily at 850 nm and, in some cases, 1300 nm. It is typically rated as OM3 or OM4 multimode fiber, where OM3 supports up to 2 Gbps at 850 nm over 300 meters, and OM4 extends this to 400 meters, making it suitable for high-bandwidth applications.
The outer jacket of the cable is usually made from durable PVC or LSZH (Low Smoke Zero Halogen) material, providing resistance to environmental factors and flame retardance. The cable may come with additional features such as aramid yarn or fiberglass for strength and protection, ensuring durability and longevity in various installation environments.
The fiber construction can be either loose tube or tight-buffered. Loose tube construction involves fibers housed in loose tubes filled with gel or water-blocking material, which offers extra protection. Tight-buffered construction features fibers that are directly coated with a buffer layer, making it more suitable for direct termination applications.
For enhanced protection, some variants of the cable are armored with a steel layer, adding an extra level of durability to safeguard against physical damage. The cable’s temperature range typically spans from -20°C to 70°C (-4°F to 158°F) for operation and from -40°C to 85°C (-40°F to 185°F) for storage, making it adaptable to various environmental conditions.
The 24-Core Multimode Fiber Optic Cable is engineered to support high-performance data networks, data centers, and enterprise infrastructures, providing reliable and efficient connectivity with high bandwidth and capacity. Its construction ensures resilience and flexibility, making it a valuable component for modern high-speed network deployments.
-
Add to cart24 core single mode fiber optic cable
The 24 Core Singlemode Fiber Optic Cable is a high-performance communication medium designed for efficient long-distance data transmission in various networking applications. With 24 cores of 9-micron singlemode fiber, this cable is optimized for minimal signal loss and superior performance, making it ideal for telecommunication networks, data centers, and high-speed broadband installations.
Constructed with OS2 fiber type, this cable is specifically designed to operate effectively at wavelengths of 1310 nm and 1550 nm, ensuring optimal performance over extended distances. Its low attenuation rates of ** 0.35 dB/km at 1310 nm and ** 0.20 dB/km at 1550 nm enable reliable high-speed data transfer, even over long runs.
The cable features a robust Low Smoke Zero Halogen (LSZH) jacket, enhancing safety by reducing harmful emissions in the event of a fire. With an outer diameter typically ranging from 8.5mm to 12mm, it is easy to install in various environments, including aerial, underground, or duct installations. Additionally, the cable is reinforced with aramid yarn or glass fibers, providing excellent tensile strength and durability.
Engineered for versatility, the cable operates efficiently within a temperature range of -20°C to +70°C and can withstand extreme storage conditions of -40°C to +85°C. Designed to meet industry standards, including TIA/EIA-568-C.3 and IEC 60793-2-50, this cable ensures reliable performance and compliance with regulatory requirements.
The 24 Core Singlemode Fiber Optic Cable is an excellent choice for organizations looking to enhance their communication infrastructure, providing a robust, high-speed solution for all their data transmission needs.
-
Add to cart
24 core single mode fiber optic cable
The 24 Core Singlemode Fiber Optic Cable is a high-performance communication medium designed for efficient long-distance data transmission in various networking applications. With 24 cores of 9-micron singlemode fiber, this cable is optimized for minimal signal loss and superior performance, making it ideal for telecommunication networks, data centers, and high-speed broadband installations.
Constructed with OS2 fiber type, this cable is specifically designed to operate effectively at wavelengths of 1310 nm and 1550 nm, ensuring optimal performance over extended distances. Its low attenuation rates of ** 0.35 dB/km at 1310 nm and ** 0.20 dB/km at 1550 nm enable reliable high-speed data transfer, even over long runs.
The cable features a robust Low Smoke Zero Halogen (LSZH) jacket, enhancing safety by reducing harmful emissions in the event of a fire. With an outer diameter typically ranging from 8.5mm to 12mm, it is easy to install in various environments, including aerial, underground, or duct installations. Additionally, the cable is reinforced with aramid yarn or glass fibers, providing excellent tensile strength and durability.
Engineered for versatility, the cable operates efficiently within a temperature range of -20°C to +70°C and can withstand extreme storage conditions of -40°C to +85°C. Designed to meet industry standards, including TIA/EIA-568-C.3 and IEC 60793-2-50, this cable ensures reliable performance and compliance with regulatory requirements.
The 24 Core Singlemode Fiber Optic Cable is an excellent choice for organizations looking to enhance their communication infrastructure, providing a robust, high-speed solution for all their data transmission needs.
-

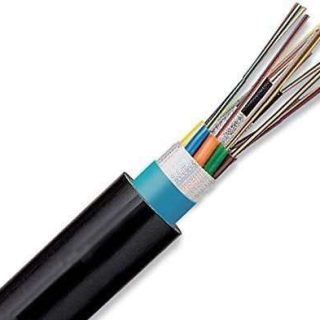

Add to cart24 Core Singlemode Un-Armoured Fibre Optic Cable
The 24 Core Singlemode Un-Armoured Fibre Optic Cable is a high-performance solution designed for robust telecommunications and data networking applications. With 24 singlemode fibers, this cable enables efficient data transmission over long distances, making it ideal for use in telecommunications networks, data centers, and local area networks (LAN).
Featuring a loose tube construction, the cable accommodates thermal expansion and contraction, ensuring the integrity of the fibers within. Its un-armoured design makes it lightweight and flexible, allowing for easy installation in various environments, including indoor applications and some outdoor settings. The outer jacket is typically made from low smoke zero halogen (LSZH) or polyethylene (PE), providing excellent protection against environmental factors while ensuring compliance with safety standards.
Operating effectively within a temperature range of -40°C to +70°C, the 24 Core Singlemode Un-Armoured Fibre Optic Cable is optimized for wavelengths of 1310 nm and 1550 nm, delivering low attenuation and high bandwidth capabilities. This makes it suitable for high-speed internet and communication services. The cable can accommodate a variety of connector types, such as SC, LC, or ST, enhancing its compatibility with different networking equipment.
Designed to meet international standards, this cable ensures reliable performance in demanding applications. Its combination of high fiber count, flexible design, and robust construction makes it an excellent choice for organizations looking to implement or expand their fiber optic infrastructure.
-
Add to cart
24 Core Singlemode Un-Armoured Fibre Optic Cable
The 24 Core Singlemode Un-Armoured Fibre Optic Cable is a high-performance solution designed for robust telecommunications and data networking applications. With 24 singlemode fibers, this cable enables efficient data transmission over long distances, making it ideal for use in telecommunications networks, data centers, and local area networks (LAN).
Featuring a loose tube construction, the cable accommodates thermal expansion and contraction, ensuring the integrity of the fibers within. Its un-armoured design makes it lightweight and flexible, allowing for easy installation in various environments, including indoor applications and some outdoor settings. The outer jacket is typically made from low smoke zero halogen (LSZH) or polyethylene (PE), providing excellent protection against environmental factors while ensuring compliance with safety standards.
Operating effectively within a temperature range of -40°C to +70°C, the 24 Core Singlemode Un-Armoured Fibre Optic Cable is optimized for wavelengths of 1310 nm and 1550 nm, delivering low attenuation and high bandwidth capabilities. This makes it suitable for high-speed internet and communication services. The cable can accommodate a variety of connector types, such as SC, LC, or ST, enhancing its compatibility with different networking equipment.
Designed to meet international standards, this cable ensures reliable performance in demanding applications. Its combination of high fiber count, flexible design, and robust construction makes it an excellent choice for organizations looking to implement or expand their fiber optic infrastructure.
-
Add to cart24 Core Underground Armoured Singlemode Fibre Optic Cable, G652D
The 24 Core Underground Armoured Singlemode Fibre Optic Cable is engineered for high-performance data transmission in challenging underground environments. Featuring 24 singlemode fibers with a core diameter of 9 µm and a cladding diameter of 125 µm, this cable is designed to provide excellent optical performance with minimal signal loss.
The armouring consists of durable steel wire or aluminum, offering superior protection against physical damage and environmental stress. Its outer sheath is typically made from Low Smoke Zero Halogen (LSZH) or PVC materials, ensuring safety and compliance with industry standards.
With maximum attenuation rates of ** 0.35 dB/km at 1310 nm and ** 0.20 dB/km at 1550 nm, the cable guarantees efficient signal transmission over long distances. It can operate effectively in a wide temperature range, from -40°C to +70°C, and withstand storage conditions from -40°C to +85°C.
This cable is also built to resist tensile and crush forces, making it robust enough for direct burial installations. With an IP68 rating, it offers excellent water resistance, ensuring reliable performance even in submerged conditions. Suitable for a variety of applications, including telecommunications, data center interconnections, and FTTH deployments, the 24 Core Underground Armoured Singlemode Fibre Optic Cable is an ideal choice for networks that demand durability and high performance.
-
Add to cart
24 Core Underground Armoured Singlemode Fibre Optic Cable, G652D
The 24 Core Underground Armoured Singlemode Fibre Optic Cable is engineered for high-performance data transmission in challenging underground environments. Featuring 24 singlemode fibers with a core diameter of 9 µm and a cladding diameter of 125 µm, this cable is designed to provide excellent optical performance with minimal signal loss.
The armouring consists of durable steel wire or aluminum, offering superior protection against physical damage and environmental stress. Its outer sheath is typically made from Low Smoke Zero Halogen (LSZH) or PVC materials, ensuring safety and compliance with industry standards.
With maximum attenuation rates of ** 0.35 dB/km at 1310 nm and ** 0.20 dB/km at 1550 nm, the cable guarantees efficient signal transmission over long distances. It can operate effectively in a wide temperature range, from -40°C to +70°C, and withstand storage conditions from -40°C to +85°C.
This cable is also built to resist tensile and crush forces, making it robust enough for direct burial installations. With an IP68 rating, it offers excellent water resistance, ensuring reliable performance even in submerged conditions. Suitable for a variety of applications, including telecommunications, data center interconnections, and FTTH deployments, the 24 Core Underground Armoured Singlemode Fibre Optic Cable is an ideal choice for networks that demand durability and high performance.
-
Add to cart24 Port 1U LC/UPC Duplex MM Adapter Rack mount ODF
24 Port 1U LC/UPC Duplex MM Adapter Rack mount ODF from the leading fiber dealer in Nairobi Kenya, buy online 24 Port 1U LC/UPC Duplex MM Adapter Rack mount ODF and have it delivered at your doorstep.Fiber Optical patch panel is a 19-inch standard type with 2 steel rails at the side of the panel. It is can be equipped with 2 fiber splice trays for 1U type . The maximum fiber core is up to 48cores. 24 Port 1U LC/UPC Duplex MM Adapter Rack mount ODF perform fiber splicing, distribution, termination, patching, storage and management in one unit
Features:
Rack mounting 19” standard size, light weight
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
24C, 36C, 48C, 96C optional, with or without fiber optic pigtails and adapters
Easy for management and operation
Sprayed surface treatment process
Customizble color and LOGOApplications:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV -
Add to cart

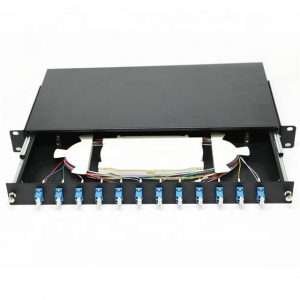

24 Port 1U LC/UPC Duplex MM Adapter Rack mount ODF
24 Port 1U LC/UPC Duplex MM Adapter Rack mount ODF from the leading fiber dealer in Nairobi Kenya, buy online 24 Port 1U LC/UPC Duplex MM Adapter Rack mount ODF and have it delivered at your doorstep.Fiber Optical patch panel is a 19-inch standard type with 2 steel rails at the side of the panel. It is can be equipped with 2 fiber splice trays for 1U type . The maximum fiber core is up to 48cores. 24 Port 1U LC/UPC Duplex MM Adapter Rack mount ODF perform fiber splicing, distribution, termination, patching, storage and management in one unit
Features:
Rack mounting 19” standard size, light weight
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
24C, 36C, 48C, 96C optional, with or without fiber optic pigtails and adapters
Easy for management and operation
Sprayed surface treatment process
Customizble color and LOGOApplications:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV -
Add to cart24 Port 1U LC/UPC Duplex SM Adapter Rack mount ODF
24 Port 1U LC/UPC Duplex SM Adapter Rack mount ODF from the leading fiber dealer in Nairobi kenya, buy online 24 Port 1U LC/UPC Duplex SM Adapter Rack mount ODF and have it delivered.24 ports fiber patch panel is the bridge of fiber patch cables, serving as standard 1U 19** rack, ODF and cabinets, to create a complete system for connectivity. It can be applied in LANs housing, optical communication, FTTD, and data center cabling
Product Specification
No.of Adapter/Port 24 Fiber Count 48 Fibers
Adapter Type LC Duplex (Blue) Fiber Mode OS2 9/125µm
Material of Plate 1.5mm SPCC (Black Coating) Dimensions (HxW) 1.73”x19” (44×482.6mm)
Insertion Loss **0.2dB (0.1dB Typ.) Return Loss **50dB
RoHS Compliancy Status Compliant Application Standard EIA 19” Rack Rails -
Add to cart
24 Port 1U LC/UPC Duplex SM Adapter Rack mount ODF
24 Port 1U LC/UPC Duplex SM Adapter Rack mount ODF from the leading fiber dealer in Nairobi kenya, buy online 24 Port 1U LC/UPC Duplex SM Adapter Rack mount ODF and have it delivered.24 ports fiber patch panel is the bridge of fiber patch cables, serving as standard 1U 19** rack, ODF and cabinets, to create a complete system for connectivity. It can be applied in LANs housing, optical communication, FTTD, and data center cabling
Product Specification
No.of Adapter/Port 24 Fiber Count 48 Fibers
Adapter Type LC Duplex (Blue) Fiber Mode OS2 9/125µm
Material of Plate 1.5mm SPCC (Black Coating) Dimensions (HxW) 1.73”x19” (44×482.6mm)
Insertion Loss **0.2dB (0.1dB Typ.) Return Loss **50dB
RoHS Compliancy Status Compliant Application Standard EIA 19” Rack Rails -
Add to cart24 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF 24 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF
24 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF from the leading fiber dealer in Nairobi Kenya, buy online 24 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF and have it delivered.
19** standard structure 24 Fibers Rack Mounted Fiber Optic Terminal Box with SC fiber adapters
24 Port SC Fiber Patch Panel LC Duplex 19** 1U Rack Mount Rotation Type is a kind of dust proof designed Optical Distribution Frame (ODF), The SC or LC fiber adapters are installed inside the front panel, You can rotate the front panel and make cablings, Fortunately, The space is still big enough.
Specification
Suitable Adapters SC/APC SC/UPC
Material Cold Rolled Steel Plate
Weight 5900g
Available Cable Outdoor or Indoor Cable
Outlet 32 Port
Installation way Rack Mount
Dimensions 430mmx250mmx1U
Applications Rack Mountable Cabinet in Data Center
Compatible Riser Cable Types Yes
Connector Capacity 16pcs SC or 32pcs LC connectors
Connector Type SC
Drop Cable Connection Yes
Includes Splitters No
Indoor Outdoor Both Indoor / Outdoor Cable
Location Cabinet Usually
Location of Use Data Center
Lock Compatible Screws
Number of Terminal Drops 4 Cables
Number of Trays 1 Splice Tray
Product Type ODF/Fiber Patch Panel
Solution for Rack Mount Cabling
Splice Capacity 16 fibers
Splitter Capability Yes
Trademark Teleweaver or Customized
Lead Time 5 days for 100pcs, 10 days for 800pcs
MOQ 20pcs
-
Add to cart
24 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF 24 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF
24 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF from the leading fiber dealer in Nairobi Kenya, buy online 24 Port 1U SC/UPC Duplex MM Adapter Rack mount ODF and have it delivered.
19** standard structure 24 Fibers Rack Mounted Fiber Optic Terminal Box with SC fiber adapters
24 Port SC Fiber Patch Panel LC Duplex 19** 1U Rack Mount Rotation Type is a kind of dust proof designed Optical Distribution Frame (ODF), The SC or LC fiber adapters are installed inside the front panel, You can rotate the front panel and make cablings, Fortunately, The space is still big enough.
Specification
Suitable Adapters SC/APC SC/UPC
Material Cold Rolled Steel Plate
Weight 5900g
Available Cable Outdoor or Indoor Cable
Outlet 32 Port
Installation way Rack Mount
Dimensions 430mmx250mmx1U
Applications Rack Mountable Cabinet in Data Center
Compatible Riser Cable Types Yes
Connector Capacity 16pcs SC or 32pcs LC connectors
Connector Type SC
Drop Cable Connection Yes
Includes Splitters No
Indoor Outdoor Both Indoor / Outdoor Cable
Location Cabinet Usually
Location of Use Data Center
Lock Compatible Screws
Number of Terminal Drops 4 Cables
Number of Trays 1 Splice Tray
Product Type ODF/Fiber Patch Panel
Solution for Rack Mount Cabling
Splice Capacity 16 fibers
Splitter Capability Yes
Trademark Teleweaver or Customized
Lead Time 5 days for 100pcs, 10 days for 800pcs
MOQ 20pcs
-
Add to cart24 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF
24 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF from the leading fiber dealer in Nairobi Kenya, buy online 24 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF and have it delivered at your doorstep.
Specifications
Type Dimension (mm) Max capacity (core) Carton size(mm) Qty/ carton (pc) G.W (kg)
GPRF-1U-SC24 430*300*1U 24 485*420*350 5 25
GPRF-1U-FC24 430*300*1U 24
GPRF-1U-2SC12 430*300*1U 24
GPRF-1U-2SC24 430*300*1U 48Note: The body is made of cold rolled steel sheet FC,ST,SC,LC adapter available Technical parameters
parameters value
Dimension(length * width * height) 430*300*44.5mm
Weight 4kgs
Fiber radius of curvature **40mm
The additional loss fiber without additional loss in the holding tray
The fiber length in the tray 1.6m
The fiber maximum capacity SC/FC 48 cores, LC up to 96 cores
The applicable temperature range -40****+60**
The lateral pressure 500N
Anti-shock: 750NPacking list: * terminal box body: 1 sets * mounting ears: 1 sets * adapter mounting screws:96pcs * welding mark: 4 sets * optical fiber protection tube: 2 ~ 48pcs * cable tie: 4 ~ 16pcs
-
Add to cart

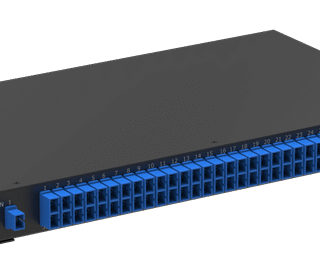

24 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF
24 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF from the leading fiber dealer in Nairobi Kenya, buy online 24 Port 1U SC/UPC Duplex SM Adapter Rack mount ODF and have it delivered at your doorstep.
Specifications
Type Dimension (mm) Max capacity (core) Carton size(mm) Qty/ carton (pc) G.W (kg)
GPRF-1U-SC24 430*300*1U 24 485*420*350 5 25
GPRF-1U-FC24 430*300*1U 24
GPRF-1U-2SC12 430*300*1U 24
GPRF-1U-2SC24 430*300*1U 48Note: The body is made of cold rolled steel sheet FC,ST,SC,LC adapter available Technical parameters
parameters value
Dimension(length * width * height) 430*300*44.5mm
Weight 4kgs
Fiber radius of curvature **40mm
The additional loss fiber without additional loss in the holding tray
The fiber length in the tray 1.6m
The fiber maximum capacity SC/FC 48 cores, LC up to 96 cores
The applicable temperature range -40****+60**
The lateral pressure 500N
Anti-shock: 750NPacking list: * terminal box body: 1 sets * mounting ears: 1 sets * adapter mounting screws:96pcs * welding mark: 4 sets * optical fiber protection tube: 2 ~ 48pcs * cable tie: 4 ~ 16pcs
-
Add to cart24 Port Loaded ODF – Optical Distribution Frame
The 24 Port Loaded Optical Distribution Frame (ODF) is a robust and versatile solution for managing and organizing fiber optic connections in telecommunications and data networks. Designed to accommodate 24 ports, this ODF is compatible with a variety of connector types, including LC, SC, ST, and FC, and is equipped with high-quality duplex adapters to ensure optimal performance and connectivity.
Constructed from durable materials such as cold-rolled steel or aluminum alloy, the frame is coated with a powder finish for enhanced corrosion resistance and durability. It features a sleek design, available in standard telecom gray or black, making it suitable for professional network environments.
The ODF is designed with modularity in mind, allowing for easy port management and scalability. Its slide-out tray design provides convenient access to fibers for installation and maintenance, while integrated cable management features such as rings, guides, and rear cable entry ports ensure organized and secure fiber routing. The inclusion of bend radius protection further safeguards the fibers from damage.
With a standard 1U height, the 24 Port Loaded ODF is compatible with 19-inch rack systems, offering seamless integration into existing infrastructure. It also supports wall-mount and floor-standing configurations, providing flexibility for various deployment scenarios. Front and rear access doors facilitate easy handling, and lockable doors with secure latching mechanisms enhance security.
Optical performance is a key focus of this ODF, with features such as low insertion loss (** 0.2 dB per connection) and high return loss (** 45 dB for PC, ** 50 dB for UPC, and ** 60 dB for APC polish) ensuring reliable signal integrity. The ODF is compatible with both singlemode and multimode fibers, covering a wide wavelength range to accommodate diverse network requirements.
The frame is designed to withstand challenging environmental conditions, operating efficiently in temperatures ranging from -40°C to +75°C and accommodating humidity levels of up to 95%. It complies with industry standards, including Telcordia GR-326, GR-449, RoHS, and IEC 61754, guaranteeing high-quality performance and safety.
Ideal for applications in telecommunications, data centers, Fiber to the Home (FTTH), cable television (CATV), and enterprise networks, the 24 Port Loaded Optical Distribution Frame provides a reliable and efficient solution for fiber optic connectivity and management. Its customizable features, including various connector and adapter configurations, make it adaptable to meet specific network needs, while its robust design ensures long-lasting performance and ease of use.
Model ODF-B
Size(mm) 480×310×43
Max.core capacity 48 LC, 24 SC, 24 ST or 24 FC
Cable port 4
Max diameter of cable (mm) **28
Core capacity tray 12, 24
Weight(kg) 4.8 -
Add to cart
24 Port Loaded ODF – Optical Distribution Frame
The 24 Port Loaded Optical Distribution Frame (ODF) is a robust and versatile solution for managing and organizing fiber optic connections in telecommunications and data networks. Designed to accommodate 24 ports, this ODF is compatible with a variety of connector types, including LC, SC, ST, and FC, and is equipped with high-quality duplex adapters to ensure optimal performance and connectivity.
Constructed from durable materials such as cold-rolled steel or aluminum alloy, the frame is coated with a powder finish for enhanced corrosion resistance and durability. It features a sleek design, available in standard telecom gray or black, making it suitable for professional network environments.
The ODF is designed with modularity in mind, allowing for easy port management and scalability. Its slide-out tray design provides convenient access to fibers for installation and maintenance, while integrated cable management features such as rings, guides, and rear cable entry ports ensure organized and secure fiber routing. The inclusion of bend radius protection further safeguards the fibers from damage.
With a standard 1U height, the 24 Port Loaded ODF is compatible with 19-inch rack systems, offering seamless integration into existing infrastructure. It also supports wall-mount and floor-standing configurations, providing flexibility for various deployment scenarios. Front and rear access doors facilitate easy handling, and lockable doors with secure latching mechanisms enhance security.
Optical performance is a key focus of this ODF, with features such as low insertion loss (** 0.2 dB per connection) and high return loss (** 45 dB for PC, ** 50 dB for UPC, and ** 60 dB for APC polish) ensuring reliable signal integrity. The ODF is compatible with both singlemode and multimode fibers, covering a wide wavelength range to accommodate diverse network requirements.
The frame is designed to withstand challenging environmental conditions, operating efficiently in temperatures ranging from -40°C to +75°C and accommodating humidity levels of up to 95%. It complies with industry standards, including Telcordia GR-326, GR-449, RoHS, and IEC 61754, guaranteeing high-quality performance and safety.
Ideal for applications in telecommunications, data centers, Fiber to the Home (FTTH), cable television (CATV), and enterprise networks, the 24 Port Loaded Optical Distribution Frame provides a reliable and efficient solution for fiber optic connectivity and management. Its customizable features, including various connector and adapter configurations, make it adaptable to meet specific network needs, while its robust design ensures long-lasting performance and ease of use.
Model ODF-B
Size(mm) 480×310×43
Max.core capacity 48 LC, 24 SC, 24 ST or 24 FC
Cable port 4
Max diameter of cable (mm) **28
Core capacity tray 12, 24
Weight(kg) 4.8 -
Add to cart288 cores Pedestal mounted fiber distribution cabinet SC/APC connectors
288 cores Pedestal mounted fiber distribution cabinet SC/APC connectors from the leading fiber optic dealer in Nairobi Kenya, buy online 288 cores Pedestal mounted fiber distribution cabinet SC/APC connectors and have it delivered.
Fiber Distribution Hub (FDH) Cabinet provides a reliable, lightweight and cost-effective solution for connecting feeder cables and distribution cables through rack mounted fiber optic splitters in the outside plant of FTTH network.Fiber Distribution Hub (FDH) Cabinet is deployed as Local Convergence Point (LCP) in a centralized splitting PON system and a testing point in the outside plant of FTTH network. Fiber Distribution Hub (FDH) Cabinet is made of outer cabinet wall with stainless steel and inner cabinet wall with aluminum alloy.Between the outer and inner cabinet, there’s a heat insulation (thickness of 18mm), which is made of high temperature resistant, low heat transmit foam material to prevent heat, burn and shake. In the places where the top/bottom/door board and Fiber Distribution Hub (FDH) Cabinet meet, the high-temperature resistant foam sealing putty is used to prevent dust, water and moist.
General Specifications
Product Number DCWPS2100BB000BB00
EAN Code 4056418168869
Mounting Type Wall-Mountable
Product Type FTTx Cabinets
Application Carrier Networks , CATV Environments
Design – Adapter
Adapter Type SC APC
Design
Number of Distribution Cables 288
Cabinet Fiber Capacity 288
Polish APC
Distribution Cable Type Loose Tube Pigtails
Feeder or Pass Through Cable Type Loose Tube Pigtails
Splitter module category No splitter
Number of Fibers in Input Cable 24
Number of Pass Through Fibers 12
Housing Type FTTx Cabinets -
Add to cart

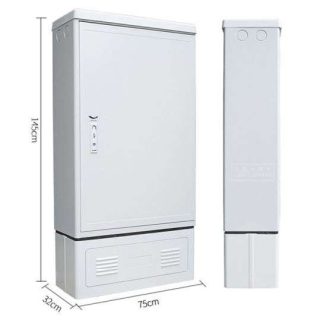

288 cores Pedestal mounted fiber distribution cabinet SC/APC connectors
288 cores Pedestal mounted fiber distribution cabinet SC/APC connectors from the leading fiber optic dealer in Nairobi Kenya, buy online 288 cores Pedestal mounted fiber distribution cabinet SC/APC connectors and have it delivered.
Fiber Distribution Hub (FDH) Cabinet provides a reliable, lightweight and cost-effective solution for connecting feeder cables and distribution cables through rack mounted fiber optic splitters in the outside plant of FTTH network.Fiber Distribution Hub (FDH) Cabinet is deployed as Local Convergence Point (LCP) in a centralized splitting PON system and a testing point in the outside plant of FTTH network. Fiber Distribution Hub (FDH) Cabinet is made of outer cabinet wall with stainless steel and inner cabinet wall with aluminum alloy.Between the outer and inner cabinet, there’s a heat insulation (thickness of 18mm), which is made of high temperature resistant, low heat transmit foam material to prevent heat, burn and shake. In the places where the top/bottom/door board and Fiber Distribution Hub (FDH) Cabinet meet, the high-temperature resistant foam sealing putty is used to prevent dust, water and moist.
General Specifications
Product Number DCWPS2100BB000BB00
EAN Code 4056418168869
Mounting Type Wall-Mountable
Product Type FTTx Cabinets
Application Carrier Networks , CATV Environments
Design – Adapter
Adapter Type SC APC
Design
Number of Distribution Cables 288
Cabinet Fiber Capacity 288
Polish APC
Distribution Cable Type Loose Tube Pigtails
Feeder or Pass Through Cable Type Loose Tube Pigtails
Splitter module category No splitter
Number of Fibers in Input Cable 24
Number of Pass Through Fibers 12
Housing Type FTTx Cabinets -
Add to cart2X2 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 2X2 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a compact and efficient optical device designed for precise signal distribution in fiber optic networks. With a 2×2 configuration, this splitter divides a single input into two outputs, making it ideal for applications requiring signal splitting and routing in singlemode fiber systems.
Encased in a durable bare steel tube, the splitter offers robust protection for the internal fibers while maintaining a lightweight and space-saving design. The steel tube construction, combined with a stainless steel strength member, ensures mechanical stability and longevity, even in demanding environments.
Utilizing advanced Planar Lightwave Circuit (PLC) technology, the splitter operates effectively across a wide wavelength range of 1260 nm to 1650 nm, covering O, E, S, C, and L bands. This ensures compatibility with various optical systems and network requirements. The device delivers excellent optical performance with a typical insertion loss of ** 4.5 dB and a maximum of ** 5.0 dB, along with high return loss (** 55 dB) to minimize back reflections. The uniformity of ** 0.5 dB ensures consistent signal distribution across both outputs, while a low polarization dependent loss (PDL) of ** 0.2 dB maintains stable performance across different polarization states.
The 2X2 Bare PLC Steel Tube Fiber Splitter is designed to operate reliably within a temperature range of -40°C to +85°C and can withstand humidity levels up to 95%, making it suitable for a variety of environmental conditions. It is easy to install with fusion or mechanical splicing, and the bare fiber ends offer flexibility for integration into existing systems.
Compliant with industry standards such as Telcordia GR-1209 and GR-1221, and RoHS regulations, this splitter provides a reliable and environmentally friendly solution for fiber optic signal management. It is ideal for use in telecommunications, data centers, Fiber to the Home (FTTH) installations, passive optical networks (PON), and cable television (CATV) systems.
Overall, the 2X2 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter combines high performance, durability, and versatility, making it an excellent choice for efficient fiber optic signal distribution and network expansion.
-
Add to cart
2X2 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
The 2X2 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter is a compact and efficient optical device designed for precise signal distribution in fiber optic networks. With a 2×2 configuration, this splitter divides a single input into two outputs, making it ideal for applications requiring signal splitting and routing in singlemode fiber systems.
Encased in a durable bare steel tube, the splitter offers robust protection for the internal fibers while maintaining a lightweight and space-saving design. The steel tube construction, combined with a stainless steel strength member, ensures mechanical stability and longevity, even in demanding environments.
Utilizing advanced Planar Lightwave Circuit (PLC) technology, the splitter operates effectively across a wide wavelength range of 1260 nm to 1650 nm, covering O, E, S, C, and L bands. This ensures compatibility with various optical systems and network requirements. The device delivers excellent optical performance with a typical insertion loss of ** 4.5 dB and a maximum of ** 5.0 dB, along with high return loss (** 55 dB) to minimize back reflections. The uniformity of ** 0.5 dB ensures consistent signal distribution across both outputs, while a low polarization dependent loss (PDL) of ** 0.2 dB maintains stable performance across different polarization states.
The 2X2 Bare PLC Steel Tube Fiber Splitter is designed to operate reliably within a temperature range of -40°C to +85°C and can withstand humidity levels up to 95%, making it suitable for a variety of environmental conditions. It is easy to install with fusion or mechanical splicing, and the bare fiber ends offer flexibility for integration into existing systems.
Compliant with industry standards such as Telcordia GR-1209 and GR-1221, and RoHS regulations, this splitter provides a reliable and environmentally friendly solution for fiber optic signal management. It is ideal for use in telecommunications, data centers, Fiber to the Home (FTTH) installations, passive optical networks (PON), and cable television (CATV) systems.
Overall, the 2X2 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter combines high performance, durability, and versatility, making it an excellent choice for efficient fiber optic signal distribution and network expansion.
-

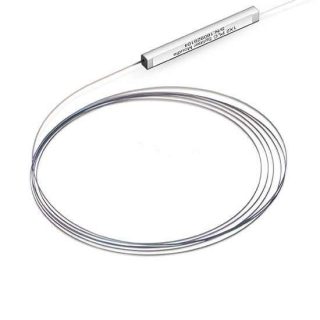

Add to cart2X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
2X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter from the leading fiber dealer in Nairobi Kenya, buy online 2X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter and have it delivered at your doorstep.
Bare fiber plc splitter 2×32 PLC Fiber Optic Splitter Steel Tube Fiber optic splitters play an increasingly significant role in many of today’s optical network topologies. 2X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter provides capabilities that help users maximize the functionality of optical network circuits from FTTH systems to traditional optical networks.
2X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter And usually they are placed in the central office or in one of the distribution points (outdoor or indoor)
Steel Tube PLC Splitter, Plc Splitter Steel Tube suppliers/factory, wholesale high-quality products of Tube Type Fiber Optic Splitter R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
Product Specification
Package Style Steel Tube, Bare Fiber Configuration Type 2×32
Fiber Grade Singlemode G.657A1 Connector Type None
Fiber Type Ribbon Fiber Temperature Operating -20~70°C Storage -40~85°C
Fiber Diameter 250**m Input/Output Fiber Length 1.5m
Insertion Loss **4.0dB Return Loss **50dB
Loss Uniformity **0.4dB Directivity **55dB
Polarization Dependent Loss **0.2dB Temperature Dependent Loss **0.5dB
Wavelength Dependent Loss **0.3dB Operating Bandwidth 1260~1650nm
Split Ratio 50/50 Steel Tube Dimensions (HxWxD) 0.16**x1.57**x0.16** (4x40x4mm) -
Add to cart
2X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter
2X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter from the leading fiber dealer in Nairobi Kenya, buy online 2X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter and have it delivered at your doorstep.
Bare fiber plc splitter 2×32 PLC Fiber Optic Splitter Steel Tube Fiber optic splitters play an increasingly significant role in many of today’s optical network topologies. 2X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter provides capabilities that help users maximize the functionality of optical network circuits from FTTH systems to traditional optical networks.
2X32 Bare PLC Steel Tube 250µm Single Mode Fiber Splitter And usually they are placed in the central office or in one of the distribution points (outdoor or indoor)
Steel Tube PLC Splitter, Plc Splitter Steel Tube suppliers/factory, wholesale high-quality products of Tube Type Fiber Optic Splitter R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
Product Specification
Package Style Steel Tube, Bare Fiber Configuration Type 2×32
Fiber Grade Singlemode G.657A1 Connector Type None
Fiber Type Ribbon Fiber Temperature Operating -20~70°C Storage -40~85°C
Fiber Diameter 250**m Input/Output Fiber Length 1.5m
Insertion Loss **4.0dB Return Loss **50dB
Loss Uniformity **0.4dB Directivity **55dB
Polarization Dependent Loss **0.2dB Temperature Dependent Loss **0.5dB
Wavelength Dependent Loss **0.3dB Operating Bandwidth 1260~1650nm
Split Ratio 50/50 Steel Tube Dimensions (HxWxD) 0.16**x1.57**x0.16** (4x40x4mm) -
3M Fibrlok Splice Kit with fiber cleaver – Kenya
KSh117,000.00Add to cart3M Fibrlok Splice Kit with fiber cleaver
The 3M Fibrlok Splice Kit with Fiber Cleaver is an essential tool for fiber optic technicians, designed for efficient and reliable splicing of multimode and single-mode fibers. This kit employs advanced mechanical splice technology, ensuring a secure and low-loss connection between fibers. It comes with everything needed to perform up to 24 splices, making it suitable for both small-scale and larger installations.
Included in the kit is a high-precision fiber cleaver, which allows for optimal fiber preparation. This cleaver features an adjustable blade, accommodating various fiber diameters and ensuring a consistent cleaving angle for enhanced splice quality. The quick splice assembly process can be completed in less than five minutes, streamlining workflows and saving valuable time on the job.
The kit also includes essential cable preparation tools, such as stripping tools, providing users with a comprehensive solution for fiber handling. Designed to withstand a wide range of environmental conditions, the Fibrlok splice kit is durable and reliable, with an operational temperature range of -40°C to 70°C and a storage temperature range of -40°C to 85°C.
Transporting the kit is convenient thanks to the rugged carrying case, which protects the components while ensuring easy mobility. The kit adheres to industry safety standards, making it a trusted choice for professionals working in telecommunications, data centers, and network installations. Overall, the 3M Fibrlok Splice Kit with Fiber Cleaver combines precision, efficiency, and portability, making it an invaluable tool for fiber optic installations.
-
3M Fibrlok Splice Kit with fiber cleaver – Kenya
KSh117,000.00Add to cart3M Fibrlok Splice Kit with fiber cleaver
The 3M Fibrlok Splice Kit with Fiber Cleaver is an essential tool for fiber optic technicians, designed for efficient and reliable splicing of multimode and single-mode fibers. This kit employs advanced mechanical splice technology, ensuring a secure and low-loss connection between fibers. It comes with everything needed to perform up to 24 splices, making it suitable for both small-scale and larger installations.
Included in the kit is a high-precision fiber cleaver, which allows for optimal fiber preparation. This cleaver features an adjustable blade, accommodating various fiber diameters and ensuring a consistent cleaving angle for enhanced splice quality. The quick splice assembly process can be completed in less than five minutes, streamlining workflows and saving valuable time on the job.
The kit also includes essential cable preparation tools, such as stripping tools, providing users with a comprehensive solution for fiber handling. Designed to withstand a wide range of environmental conditions, the Fibrlok splice kit is durable and reliable, with an operational temperature range of -40°C to 70°C and a storage temperature range of -40°C to 85°C.
Transporting the kit is convenient thanks to the rugged carrying case, which protects the components while ensuring easy mobility. The kit adheres to industry safety standards, making it a trusted choice for professionals working in telecommunications, data centers, and network installations. Overall, the 3M Fibrlok Splice Kit with Fiber Cleaver combines precision, efficiency, and portability, making it an invaluable tool for fiber optic installations.
Popular Products
-
IsatPhone Link 50 Units - 30 Days
Validity
-
Thuraya IP Prepay 30GB Refill PIN
-
IsatDOCK Transport Active Antenna
(Magnetic) (ISD715)
-
GSP-1700 Marine Kit: Includes
GSP-1700S-EU, GIK-1700-MR, GIK-32-EXTEND, GPH-1700, GDC-1700-CBL,
GDC-1700CD-EU
-
RST620HB - Fixed Sat Bundle Satellite
Phone - Hands-Free Bundle Pack
Products
-
IsatPhone Link 50 Units - 30 Days
Validity
-
Thuraya IP Prepay 30GB Refill PIN
-
IsatDOCK Transport Active Antenna
(Magnetic) (ISD715)
-
GSP-1700 Marine Kit: Includes
GSP-1700S-EU, GIK-1700-MR, GIK-32-EXTEND, GPH-1700, GDC-1700-CBL,
GDC-1700CD-EU
-
RST620HB - Fixed Sat Bundle Satellite
Phone - Hands-Free Bundle Pack
