Showing all 7 results

•

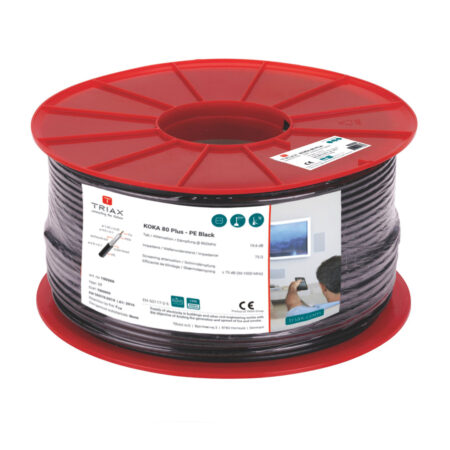

  Triax Koka RG6-PVC Black 305m Reel, CCS Coax Cable – Satellite Cable

  Product description:

  RG 6 – PVC black?- 305m reel

  ??ONLY available for Middle East and Africa

  TRIAX RG 6 PVC type is a premium cable for in-house installations. The wide frequency range allows the cable to carry signals for both television, radio, satellite receivers etc., whether the signal comes from satellite, terrestrial antenna or cable-tv.

  This cable is designed with a center conductor of Copper Clad Steel (CCS) which offers high mechanical strength. Due to the gas injected foam, which is far superior to the chemical foam, the copper cladding carries the signals without great losses. A good quality conductor and appropriate gas injected dielectric grants velocity ratio higher than 80%.

  For outdoor installation we highly recommend the coax cables with PE jacket, as this material simply is more resistant to weather conditions.

  Specifications
  ORDER INFORMATION?
  EAN Number 5702661500367?
  CONSTRUCTION?
  Inner conductor – material CCS?
  Inner conductor – dimension 1.02 ? 0.01 mm?
  Dielectric – material Foam PE?
  Dielectric – dimension 4.57 ? 0.05 mm?
  1. Shield foil ? material Alu/PET bonded?
  1. Shield foil – overlap 20 %?
  2. Shield braid – material Alu?
  2. Shield braid – coverage 60 ? 3 %?
  Jacket – material PVC?
  Jacket ? dimension 6.86 ? 0.15 mm?
  SHIELDING?
  Screening attenuation @ 30-1000 MHz > 75 dB?
  Screening attenuation @ 1000-2000 MHz > 65 dB?
  Screening attenuation @ 2000-3000 MHz > 55 dB?
  CHARACTERISTICS

  Read more

  Quick View
•

  Triax-Multiswitch -13×16 (one terrestrial and 12 for three satellites, each with its four polarities)

  Triax Multiswitch?:

  Cascadeable TMS 13 Multiswitch (3 SAT + 1 TER)

  Passive TER path
  F-type female connector for external 18VDC PSU, for powering LNB
  Multiswitch satellite functions powered from satellite receiver(s)
  Colour coded connectors throughout the range
  Specifications
  ORDER INFORMATION
  EAN Number 5702663074323
  CHARACTERISTICS

  Max. output level SAT @ -35 dB IMD3 100 dB?V
  Switch commands 13/18 V, 0/22 kHz, DiSEqC 2.0
  FREQUENCY
  Frequency range TER 5…862 MHz
  Frequency range SAT 950…2150 MHz
  LOSS
  Through loss – Trunk TER 4 dB
  Through loss – Trunk SAT 5 dB
  Tap loss TER 29 dB
  Tap loss SAT 3 dB
  ISOLATION
  Isolation SAT to TER 30 dB
  Isolation TER to SAT 20 dB
  RETURN LOSS
  Return loss SAT inputs 12 dB
  Return loss SAT outputs 8 dB
  Return loss TER inputs 12 dB
  Return loss TER outputs 8 dB
  ELECTRICAL
  Impedance 75 ?
  OPERATIONAL
  DC Operating voltage 18 VDC
  Max. current to each output (supplied by set top box) 50 mA
  Max. current to each H/V LNB 2000 mA
  Control LEDs Green LED (Power)
  Temperature – operating 0…55 ?C
  CONNECTORS
  Number of inputs 13
  Number of trunk inputs 12 SAT, 1 TER
  Number of trunk outputs 12 SAT, 1 TER
  Subscriber outputs 16
  Colorcoding @IF/TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow, Clear=TER
  MECHANICAL
  Main material Steel housing
  Product Height 45 mm
  Product Depth 294 mm
  Product Width 210 mm
  Packing QTY 1
  Packaging Height 0,058 m
  Packaging Width 0,315 m
  Packaging Depth 0,218 m
  Packaging Volume 0,004 m3
  Net Weight 1,240 kg
  Tara Weight 0,200 kg
  Total Weight 1,440 kg

  Read more

  Quick View
•

  Triax-Multiswitch -13×24 (one terrestrial and 12 for three satellites, each with its four polarities)

  Triax Multiswitch :

  Cascade-able TMS 13 Multiswitch (3 SAT + 1 TER)
  Passive TER path
  F-type female connector for external 18VDC PSU, for powering LNB
  Multiswitch satellite functions powered from satellite receiver(s)
  Color coded connectors throughout the range

  Read more

  Quick View
•

  TRIAX-Universal Octo LNB, 8 Outputs

  TRIAX Universal LNB’s
  High Gain
  Great quality, low footprint
  Cutting edge RF technology
  Excellent Cross polar isolation
  Excellent low noise / low phase noise
  High output / low power consumption
  Weatherproof & qualified for harsh environments
  Complete range of Single, Twin, Quad, Quattro, and High Gain types
  FREQUENCY
  Input frequency low band : 10.7…11,7 GHz
  Input frequency high band : 11.7…12.75 GHz
  Output frequency low band? :950…2150 MHz
  L.O. frequency low band? :9.75 GHz
  L.O. frequency high band :10.6 GHz
  GAIN
  Gain flatness (across 26 MHz segm) 5 dB
  Conversion gain (typ.) 55…65 dB
  Noise figure max. typ 0.3 dB

  Read more

  Quick View
•

  TRIAX-Universal Quad LNB-High Gain Great Quality

  TRIAX Universal LNB’s
  High Gain
  Great quality, low footprint
  Cutting edge RF technology
  Excellent Cross polar isolation
  Excellent low noise / low phase noise
  High output / low power consumption
  Weatherproof & qualified for harsh environments
  Complete range of Single, Twin, Quad, Quattro, and High Gain types

  Read more

  Quick View
•

  TRIAX-Universal QUATTRO LNB

  TRIAX Universal LNB’s
  High Gain
  Great quality, low footprint
  Cutting edge RF technology
  Excellent Cross polar isolation
  Excellent low noise / low phase noise
  High output / low power consumption
  Weatherproof & qualified for harsh environments
  Complete range of Single, Twin, Quad, Quattro, and High Gain types

  Read more

  Quick View
•

  TRIAX-Universal Twin LNB

  TRIAX Universal LNB’s
  High Gain
  Great quality, low footprint
  Cutting edge RF technology
  Excellent Cross polar isolation
  Excellent low noise / low phase noise
  High output / low power consumption
  Weatherproof & qualified for harsh environments
  Complete range of Single, Twin, Quad, Quattro, and High Gain types

  Read more
