Televes H30 evolution 593504 field meter for measuring DVB-S/S2, DVB-T/T2 and DVB-C signals.

What functions does the Televes H30 evolution field meters offer?
Multiscreen and remote control
Controllable from any Android or iOS device or a PC
The H30Evolution multiscreen system allows you to display the meter?s screen on your smartphone or tablet to wirelessly control the equipment or just for the sake of working with a larger screen.
The installer may wirelessly access the equipment at any time from anywhere in the installation (depending on the local network connection range), with the convenience of always using his/her own device.
Simply install the H30Evolution App on your device and connect it to the WiFi network generated by the meter (AP mode).
Multi Standard
Fully configurable equipment to meet your needs
H30Evolution is fully prepared to meet the specific needs of each individual user. It is a multi-standard equipment, ready to take measurements on the satellite band, but also on the terrestrial band channels. In order to meet the changing needs of individual users, the equipment allows them to easily add new options, with no need to send the meter back to the factory.
Accuracy and Speed
Real-time digital processing
Designed to instantly obtain all the information about the signal in real time, it is a true milestone in field work. H30Evolution provides the required accuracy and speed to detect minor transient radiation, or spurious signals that could affect the system during signal reception.
Pass/Fail Indicators
Easy decision-making
Reduce installation mistakes with the on-screen Pass/Fail indicators, a graphical tool that helps and speeds up the interpretation of measurement results. Different thresholds are available depending on the network area to be analysed: headend, multi-band amplifiers, bridging connection, connection records, user home, etc. Besides the pre-set values, you will be able to customize your own threshold values.
System Scan
Monitored installation
Scan each existing analogue and digital channel in real time to determine the overall system frequency response. This function leverages the location-based thresholds to clearly show whether the signal levels meet the cable systems? specifications with green, yellow and red bars. This feature provides an easy-to-understand, real-time view of the system, including the BER and MER values of the selected channel.
Spectrum Analyser
From 5MHz to “full span?
H30Evolution spectrum analyser provides a value range of 5, 10, 20, 50, 100, 200, 500 MHz and Full, as well as a reference level auto-adjust feature. Real-time processing speeds ensure the capture of any signal incidents. You will be surprised by the accuracy and the level of detail provided by this ultra-portable pocket spectrum analyser. The ultimate tool for identifying and localising noise, interference, radiation, and any other signals that may be affecting the quality of the television signal distribution service.
Guided satellite pointing
LNB self-configuration
This functionality speeds up the dish pointing work. The meter has a typical satellite and a stable transponder according to the regional zone previouly set, and it is self-configurated for the LNB connection. In addition, a sound indicator can be activated in order to audibly guide the user in the satellite dish pointing.
The reference satellite can be manually changed and start a new pointing.
Constellation Diagram
Fine-tune your digitals
Constellation analysis is essential for determining the quality of digital signals. Constellation diagrams help detecting noise, jitter, interference and signal saturation, and all the variables that could impact signal quality, eventually leading to service suspension. By visually inspecting the size and shape of the dots in the constellation matrix, the technician will be able to easily identify the nature of the problem
Echo
Optimal signal reception
In terms of terrestial signal reception, controlling the absence of any echoes that could jeopardize reception is crucial. H30Evolution displays the echoes of the received signal, allowing the installer to minimize them for optimal signal reception.
What technical specifications does the Televes H30 evolution field meter have?
H30EVOLUTION
Mechanical Specifications
Screen 2.8? TFT 400 x 240 full color
Weight 510 g.
Dimensions 175x100x52 mm / 6,9×3,9×2 (HxWxD)
AC Adaptor Input: 100-240V~ 50-60Hz Output: 12VDC, 2A
Battery Li-ion (7,2VDC, 2300mAh)
Baterry range >4hours without LNB powering
Interfaces Bluetooth, Wi-Fi 2.4GHz (5GHz upgrade 593250), Ethernet 1Gb
USB 2.0 for Data log download and software upgrades
Storage capacity 400 MB (internal) for measurements
Resilience It withstands drops from 1 m (3.2 ft) onto concrete on all sides
Impedance F-type connector – 75 Ohm
Technical Specifications
593503 593501 593502 593504
Frecuency
Range Terrestrial: 50 – 880 MHz / Satellite: 950 – 2200 MHz / Wideband: 250 – 2300 MHz
Resolution 125 kHz
Tunning Frecuency or channel
Spectrum analyser
Span 5, 10, 20, 50, 100, 200, 500 MHz y Full
Scale 5 and 10 dB/div
Reference level (automatic and manual) ?
Hold feature Peaks
DVB-S digital measurements [Modulation: QPSK]
Image ? ? ? ?
Power From 45 to 110 dB?V ? ? ? ?
CBER 9.9E-2 ? 1.0E-6 ? ? ? ?
VBER 1.0E-4 ? 1.0E-8 ? ? ? ?
MER Up to 20dB ? ? ? ?
C/N Automatic ? ? ? ?
Constelation ? ? ? ?
SCR EN 50494 ?
dCSS EN 50607 Upgrade 593234*
DVB-S2 digital measurements [Modulations: QPSK, 8PSK]
Image ? ? ? ?
Power From 45toa 110 dB?V ? ? ? ?
Link Margin Up to 10 dB ? ? ? ?
MER Up to 20 dB ? ? ? ?
LDPCBER 9.9E-2 ? 1.0E-6 ? ? ? ?
BCHBER 9.9E-2 ? 1.0E-8 ? ? ? ?
Constelation ? ? ? ?
SCR EN 50494 ?
dCSS EN 50607 Upgrade 593234*
DVB-T digital measurements [Modulations: COFDM (QPSK, 16QAM, 64QAM)]
Image Upgrade 593231 ? ? ?
Power From 45 to 110 dB?V Upgrade 593231 ? ? ?
From 45 to 120 dB?V Upgrade 593231 + 593235* ? | Upgrade 593235* ? | Upgrade593235* ? | Upgrade593235*
CBER 9.9E-2 ? 1.0E-6 Upgrade 593231 ? ? ?
VBER 1.0E-3 ? 1.0E-8 ? ? ?
MER Up to 35 dB ? ? ?
C/N Automatic ? ? ?
Echoes ? ? ?
Constelation ? ? ?
DVB-T2 digital measurements [Modulations: COFDM ( QPSK, 16QAM, 64QAM and 256 QAM)]
Image Upgrade 593231 + 593232 Upgrade 593232 ? ?
Power From 45 to 110 dB?V Upgrade 593231 + 593232 Upgrade 593232 ? ?
From 45 to 120 dB?V Upgrade 593231 + 593232 +? 593235* Upgrade 593232 + Upgrade 593235* Upgrade 593235* Upgrade 593235*
LDPCBER 9.9E-2 ? 1.0E-6 Upgrade 593231 + 593232 Upgrade 593232 ? ?
BCHBER 1.0E-3 ? 1.0E-8 ? ?
Link Margin Up to 30 dB ? ?
MER Up to 35 dB ? ?
C/N Automatic ? ?
Echoes ? ?
Constelation ? ?
DVB-C digital measurements [Modulations: 16QAM, 32QAM, 64QAM, 128QAM and 256 QAM]
Image ? Upgrade 593233 Upgrade 593233 ?
Power From 45 to 110 dB?V ? Upgrade 593233 Upgrade 593233 ?
From 45 to 120 dB?V Upgrade 593235* Upgrade 593233 + 593235* Upgrade 593233 + 593235 Upgrade 593235*
CBER 1.E-2 ? 1.0E-8 ? Upgrade 593233 Upgrade 593233 ?
MER Up to 38 ? ?
C/N Automatic ? ?
Analogue measurements
Level 25 y 125 dB?V ? ? ? ?
V/A ? ? ? ?
C/N ? ? ? ?
Measurements and functions
Analyser WiFi Upgrade 593250 Upgrade 593250 Upgrade 593250 Upgrade 593250
Analyser IPTV Upgrade 593251 Upgrade 593251 Upgrade 593251 Upgrade 593251
Terrestrial plans CCIR, CCIR + LTE, OIRT, KBW, FCC, DAB, SIM
Satellite plans 68E INTEL C, 68E INTEL, 42E TURK, 39E HELLAS, 33E EUTEL, 28E EUTEL, 28E ASTRA, 26E BADR, 25E EUTEL, 23E ASTRA, 21EEUTEL, 19E ASTRA, 16E EUTEL, 13E HOTB, 10E EUTEL C, 10 EUTEL, 9E EUTEL, 7E EUTEL, 4E ASTRA, 1W THOR5, 1W THOR6,5W EUTELC, 5W EUTEL, 7W NILE, 30W HISPA, 48W AMZC, 48W AMAZ, SIM
Units dB?V, dBmV, dBm
LNB powering 13, 18 Vdc
LNB tone 22 kHz

H30 evolution DVB-S/S2 + DVB-T/T2/C field meter

H30 evolution DVB-S/S2 + DVB-T/T2/C field meter

Cart

Cart

...

DStv FITTER - CHEHE

Dahua HAC-HDBW1500E-0280B-S2 5MP Starlight HDCVI IR Dome Camera

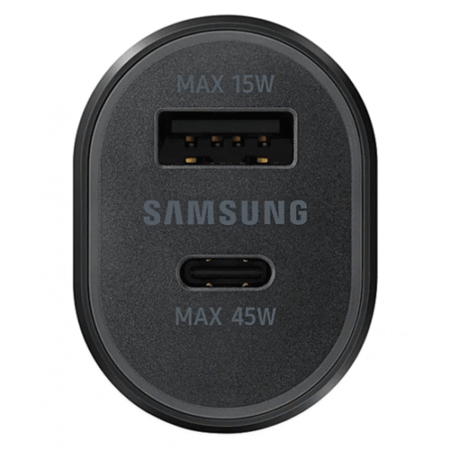

Super Fast Dual Car Charger (45W+15W) - Kenya
