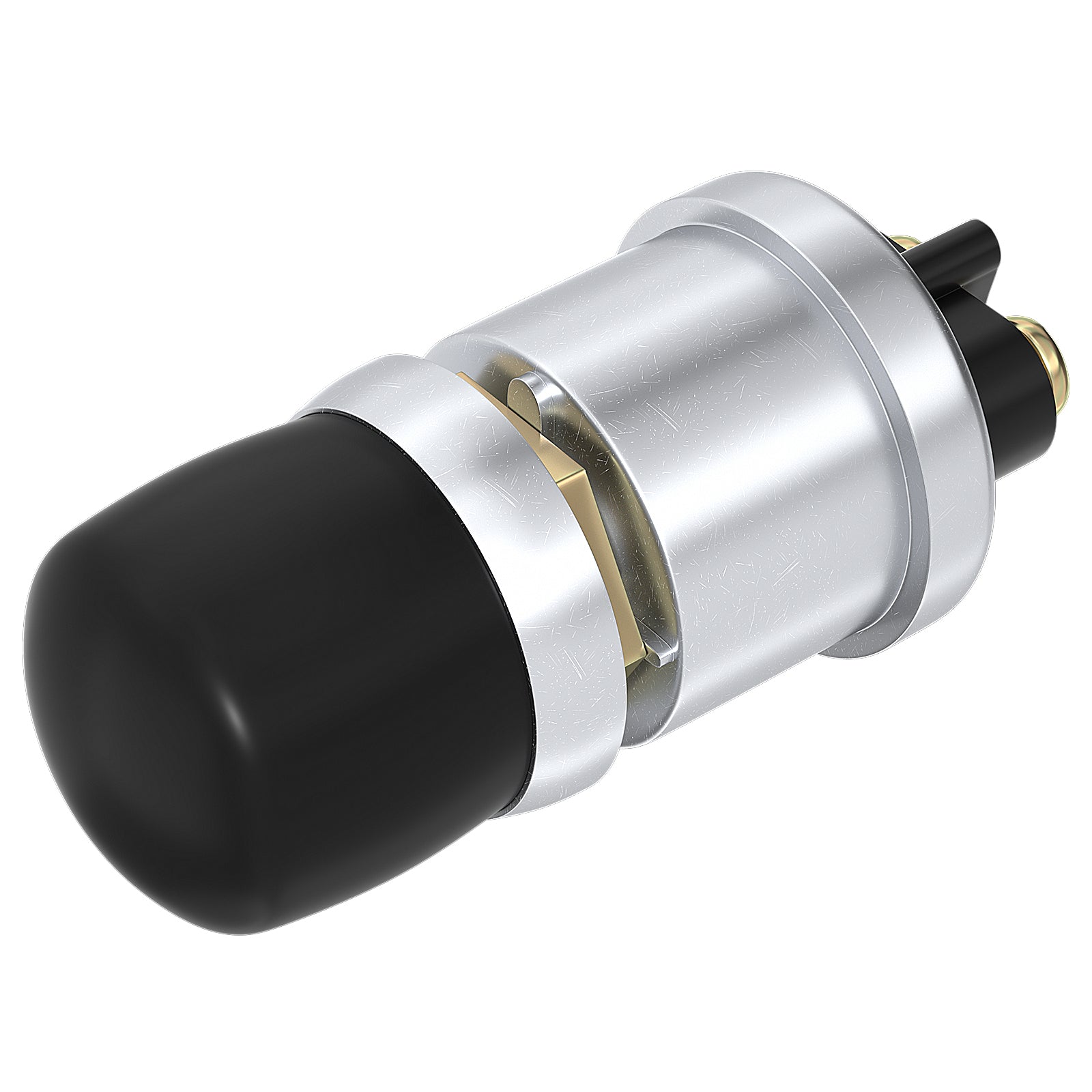

12V / 24V 50A Waterproof Momentary Push Button Starter Switch

About this item

【Operational Design】- The push button starter switch is engineered as a
momentary ON/OFF SPST switch. It’s designed to return to the OFF position
after release, providing efficient control. Pressing the switch activates ON,
while releasing it restores the OFF position.

【Protective Feature】- This 12V/24V push start switch boasts a momentary
design, accompanied by a black neoprene cover that effectively safeguards it
against water, moisture, and dirt. This ensures reliable functionality even
in challenging conditions.

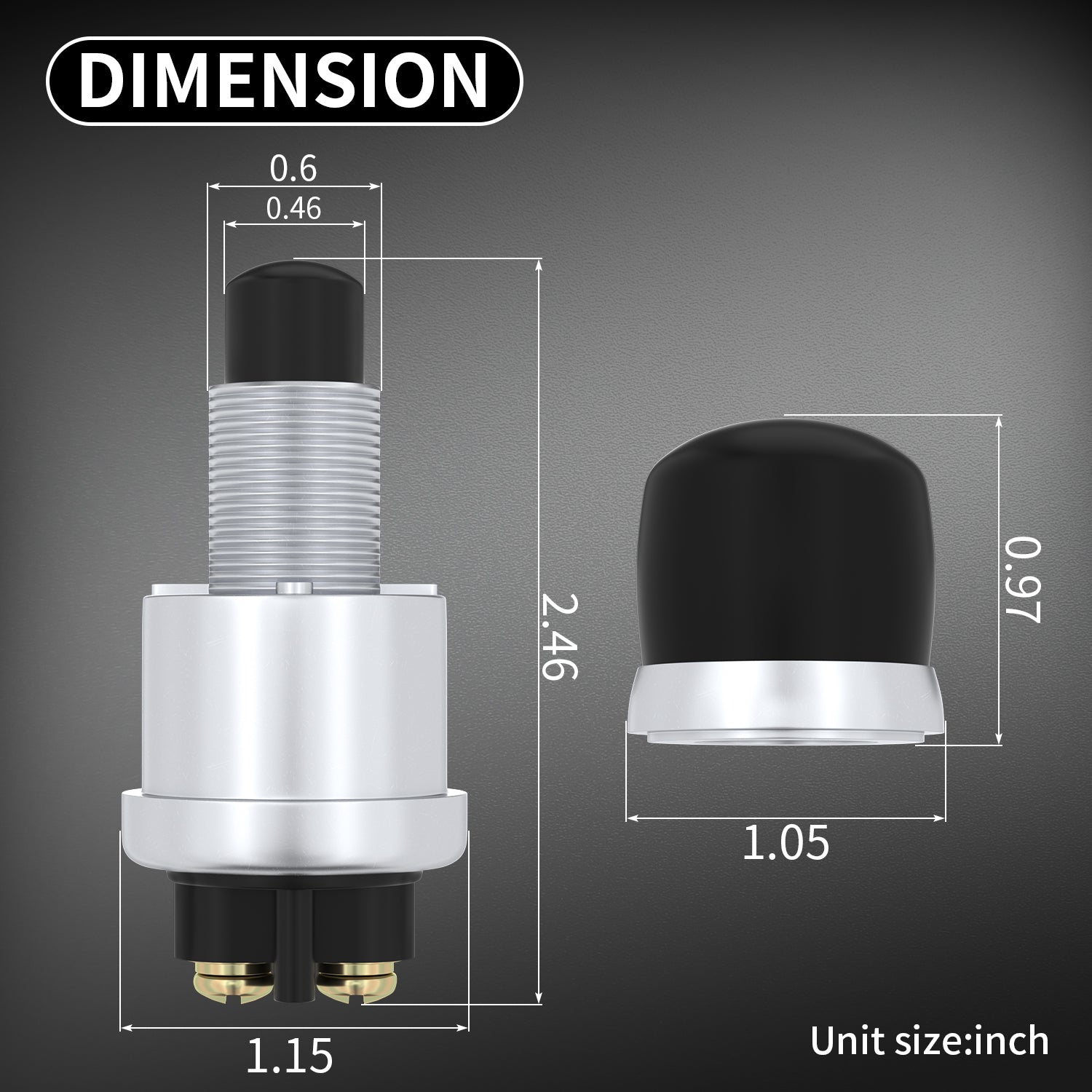

【Compact Dimensions】- With a height of 2.44 inches (excluding the cover)
and a button diameter of 1.1 inches, this starter switch is designed for
convenience. The required mounting hole size for the horn button switch is
5/8 inch (0.625 inch).

【Voltage Capability】- With a 50A 12V rating, this waterproof engine start
button is equipped to handle demanding voltage requirements with ease, making
it suitable for various applications.

【Rugged Durability】- Designed to be waterproof, weatherproof, and
dustproof, this button switch’s protective cover makes it highly resilient
for use in harsh environments. It serves as an ideal choice for functions
like horn, ignition, and start control in a wide range of vehicles and
equipment, including cars, trucks, RVs, boats, and more.

What’s in the package:

1 x push button switch

Spec

Part NO ASW-B05
Mounting Size 16mm
Rating 50A 12VDC
Function Momentary
Contact Type 1NO SPST
Terminal 2 Pins
Terminal Type Screw Terminal
