2 4G/LTE antennas 4G extended coverage Televes
KSh21,120.00

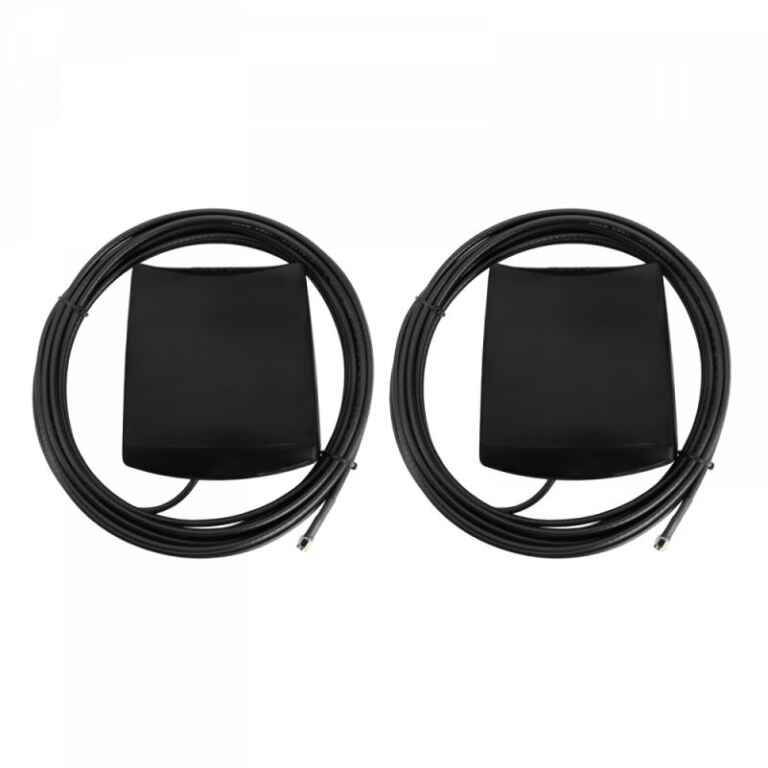

Two 4G/LTE signals transmission and reception antennas, for extended coverage in shielded areas or in areas where propagation conditions are difficult. Both antennas are installed with a >0.5m separation for multiple transmission/reception and are connected directly to a 4G MIMO router.
Two 4G/LTE signals transmission and reception antennas, for extended coverage in shielded areas or in areas where propagation conditions are difficult. Both antennas are installed with a >0.5m separation for multiple transmission/reception and are connected directly to a 4G MIMO router.
A 50Ohm coaxial cable is included in each antenna. These coaxial cables have a length of 7,5m and SMA male connectors.
Highlights
MIMO technology (Multiple Input, Multiple Output): provides greater quality and reliability of 4G/LTE signals in places of difficult reception and propagation
Onmidirectional transmission/reception: pointing is not required
Mobile 4G devices are more efficient in terms of power and consumption
Optimized response on both the Uplink and the Downlink
Passive antenna, no power consumption
Application example?
* see Attachments for more mounting information
Specifications
Frequency band Mhz 690…960 1700…2700
Gain dBi 1 3,5
F/B ratio dB Onmidirectional
Impedance Ohm 50
Connectors SMA (male)
Windload N 16,2 (@130Km/h)
22,3 (@150Km/h)
Protection index IP 23
