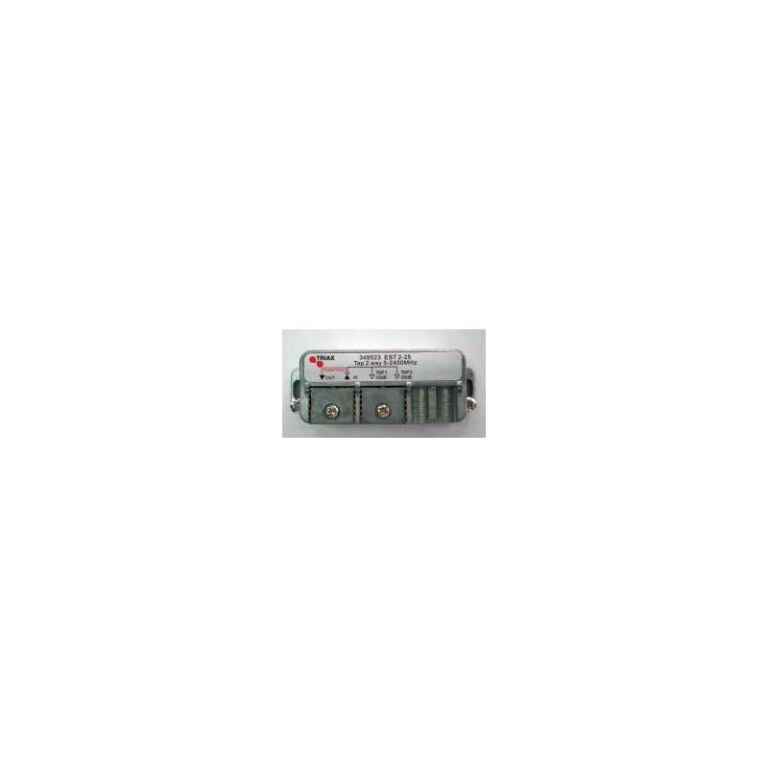

2 outputs (easy clema connection) 20db EST 2-20 Triax

2 outputs (easy clema connection) 20db EST 2-20 Triax

KSh1,592.00

2 outputs (easy clema connection) 20db EST 2-20

Specifications
Model ? EST 2-20
Code ? 349522
Frequency range MHz 5 – 2400
No. of outputs ? 2
Lost in step (typical) 5 – 40 MHz dB dB 1,2
40 – 1000 MHz dB 1,2
1000 – 1750 MHz dB 1,8
1750 – 2150 MHz dB 2,2
2150 – 2400 MHz dB 2,5
Lost in shunt 5 – 40 MHz dB dB 20.0 (? 2.0)
40 – 1000 MHz dB 20.0 (? 1.5)
1000 – 1750 MHz dB 20.0 (? 1.5)
1750 – 2150 MHz dB 20.0 (? 2.0)
2150 – 2400 MHz dB 20.0 (? 2.5)
Decoupling dB 22
Lost of return (input / output) dB 12
Lost of return (derivation) dB 14
Protection of the shield dB ? 110.0
Current passage ? Input / Output
Impedance Ohm 75
Measurements?(h x d x w) mm 82 x 31 x 20
