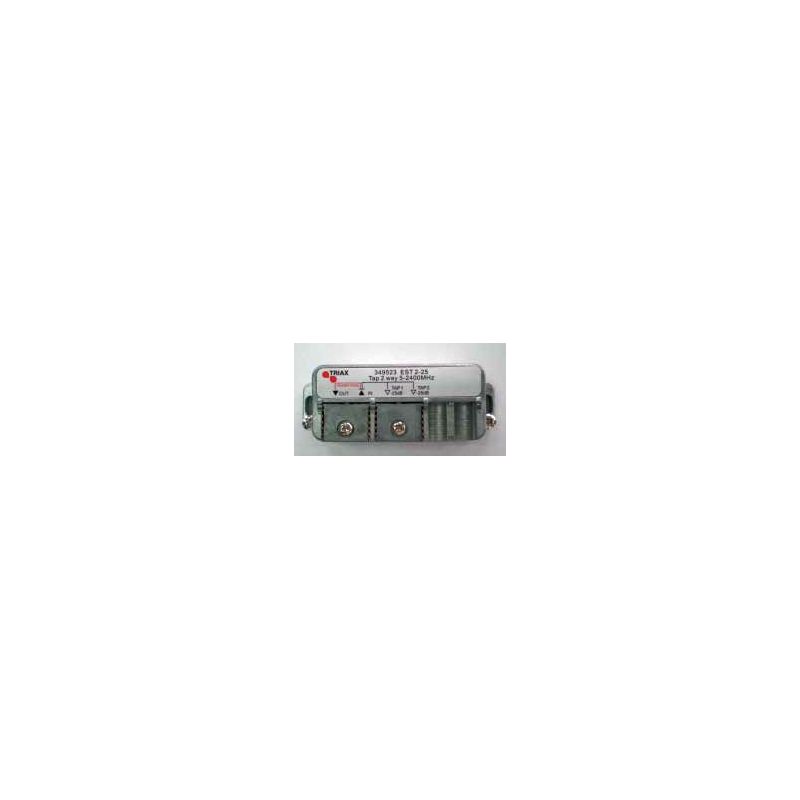

2 outputs (Easy clema connection) 15db EST 2-15 Triax

Name: 2 outputs (Easy clema connection) 15db EST 2-15 Triax | +254720548999
Price: 1592.00 KES
Availability: InStock

KSh1,592.00

Shunt 2 outputs (Easy clema connection) 15db EST 2-15

Specifiactions
Model ** EST 2-15
Code ** 349521
Frequency range MHz 5 – 2400
No. of outputs ** 2
Lost in step (typical) 5 – 40 MHz dB 2.2
40 – 1000 MHz dB 2.4
1000 – 1750 MHz dB 03
1750 – 2150 MHz dB 3.5
2150 – 2400 MHz dB 04
Lost in shunt 5 – 40 MHz dB 15.0 (** 1.5)
40 – 1000 MHz dB 15.0 (** 1.5)
1000 – 1750 MHz dB 15.0 (** 2.0)
1750 – 2150 MHz dB 15.0 (** 2.0)
2150 – 2400 MHz dB 15.0 (** 2.5)
Decoupling dB 22
Lost of return (input / output) dB 12
Lost of return (derivation) dB 14
Protection of the shield dB ** 110.0
Current passage ** Input / Output
Impedance Ohm 75
Measurements**(h x d x w) mm 82 x 31 x 20
