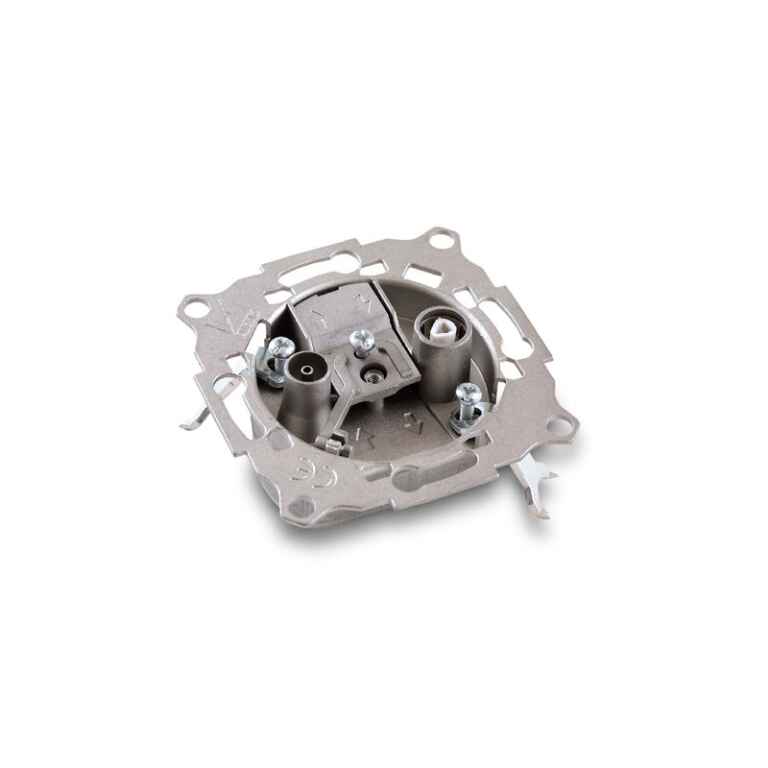

Alcad BC-200 Attenuation, 10 db
KSh2,384.00
Alcad BC-200 – Serie 907: Attenuation, 10 db.
Outlets for terrestrial TV with two IEC male and female connectors. Radio and TV outputs separated by filters. Designed for use in cable TV networks. They cover frequencies between 5 and 1000 MHz.
Applications
Cable TV networks requiring the filtering of radio and TV signals at the outlet base. Installation as a terminal outlet connected to a tap-off or splitter or as outlets in series connected to each other. The outlet base facilitates the connection of the TV to the distribution and loads the distribution when the TV is not connected.
Characteristics
Voltage blockage in the output connectors with a 2 KV insulation. Shielded zamak and metal plate chassis. Connection of the coaxial cable by means of screw terminal. Fits in a ?60 mm box.
Downloads
Technical specification
Technical specification
Manuals
– pdf 619.4 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
