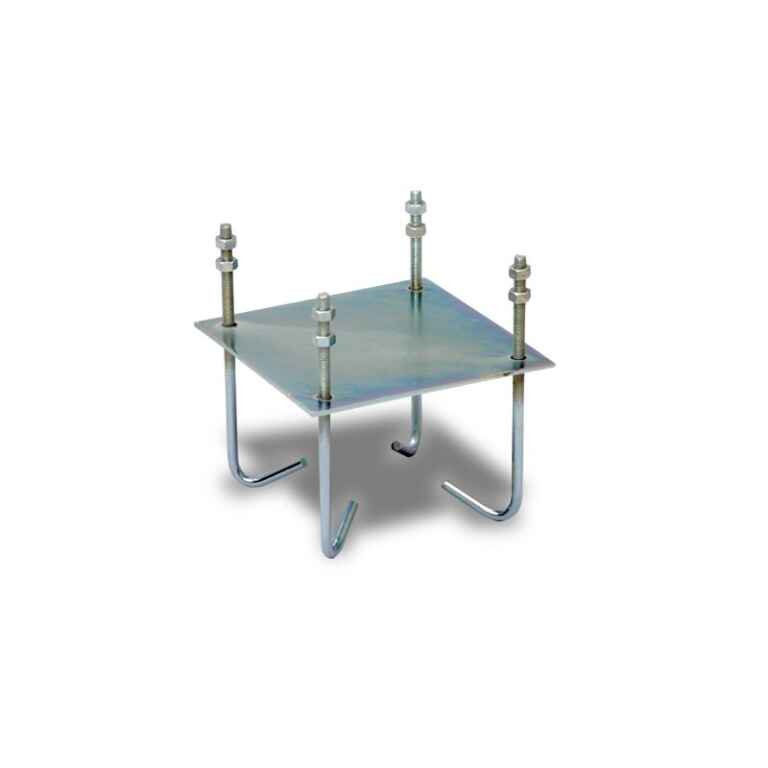

Alcad BE-201 Embedded dish base (4x150mm)
KSh17,202.00
Alcad BE-201 – Serie 998: Embedded dish base (4x150mm).
Chimney clamp to fix the mast to a chimney which is held firmly in place by means of a wire rope which goes around the chimney and a system of turnbuckles.
Applications
Used as an alternative to wall brackets in installations which do not require very long masts. It allows antennas to be installed without having to carry out any work to the fa?ade of the building.
Characteristics
Made from round zinc-coated iron tube of ?30×1.5 mm and L-shaped profiles with a system of two long M8 turnbuckles. M8 clamps for ?50 mm masts.
Downloads
Technical specification
Technical specification
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
