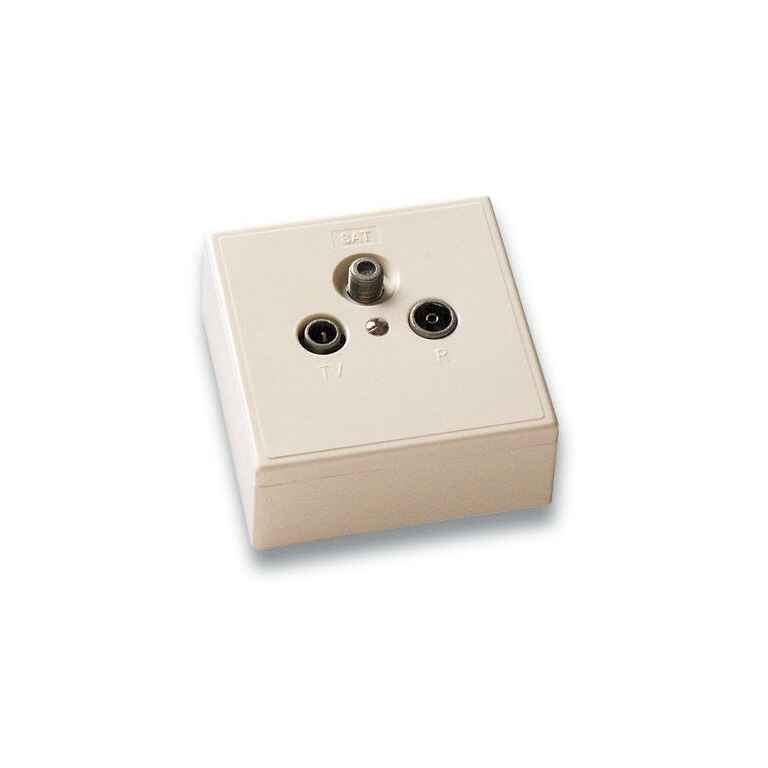

Alcad BS-102 If terminal outlet, 2 db, 3 connectors
Alcad BS-102 – Serie 907: If terminal outlet, 2 db, 3 connectors.
Outlets for terrestrial and satellite TV with three male IEC connectors, an IEC female connector and an F-type female connector. They cover frequencies up to 2,300MHz. They allow a feed path via the female F-type connector to the input.
Applications
Outlets for terrestrial and satellite TV with three male IEC connectors, an IEC female connector and an F-type female connector. They cover frequencies up to 2,300MHz. They allow a feed path via the female F-type connector to the input.
Characteristics
Shielded zamak and metal plate chassis. Connection of the coaxial cable by means of screw terminal. Includes TV/R/SAT frontplate, surface box and screws for fixing to a wall.
Downloads
Technical specification
Technical specification
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
