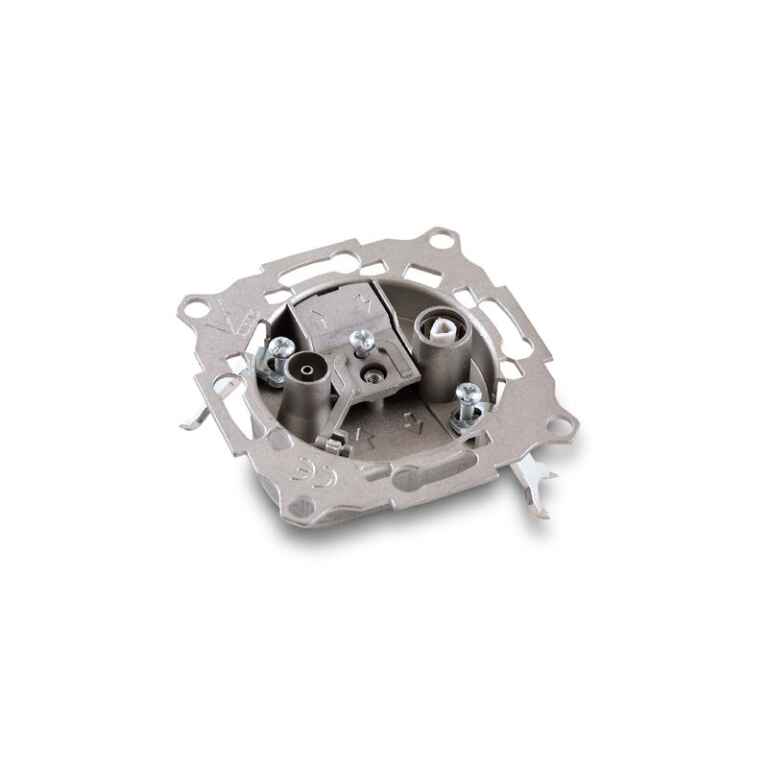

Alcad BS-112 Terminal, attenuation 1 db
KSh1,972.00
Alcad BS-112 – Serie 907: Terminal, attenuation 1 db.
Outlets for terrestrial and satellite TV with two IEC male and female connectors (except for the BS-100 outlet). They cover frequencies up to 2,400 MHz. They have a DC path from one of their outputs to the input and from the through output in the intermediate outlets to the input.
Applications
Individual or SMATV installations. Installation as a terminal outlet connected to a tap-off or splitter, or as outlets in series connected to each other. They permit the feeding of a preamplifier or of an LNB through the output. A control voltage can be used in installations with multiswitches.
Characteristics
Shielded zamak and metal plate chassis. Connection of the coaxial cable by means of screw terminal. Fits in a ?60 mm box.
Downloads
Technical specification
Technical specification
Manuals
– pdf 611.12 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
