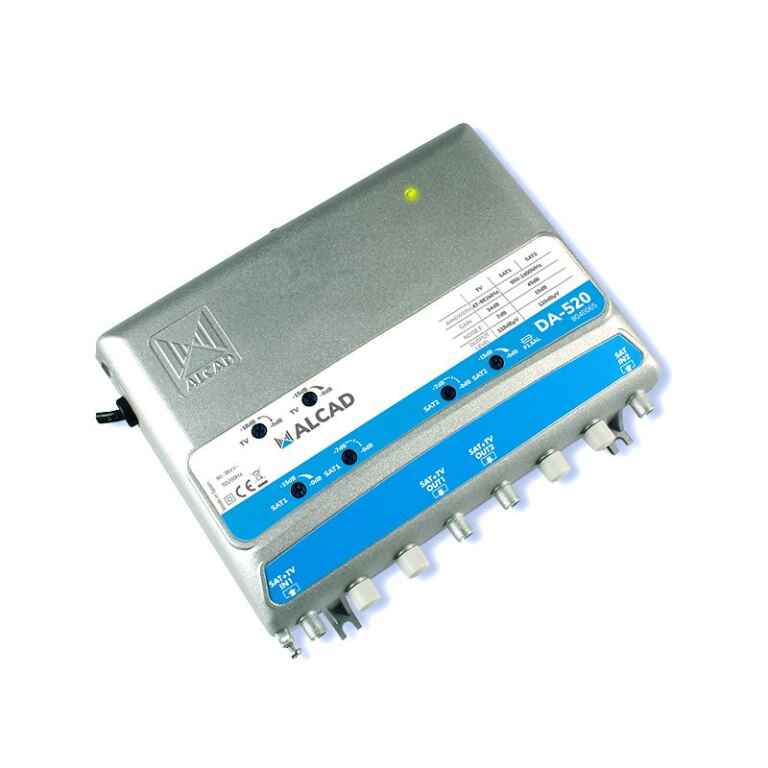

Alcad DA-520 Distribution amplifier double tv/sat
KSh54,572.00
Alcad DA-520 – Serie 904: Distribution amplifier double tv/sat.
Broadband distribution amplifier for terrestrial TV and satellite IF. One part of the amplifier amplifies the IF ignal while rejecting the TV signals. The other part of the amplifier amplifies the TV and IF signals, distributing the TV signal to the two outputs. Includes a gain control on each TV and SAT band, a variable equaliser on the TV band and a switchable equaliser on the SAT band. Fed by a built-in switching power supply.
Applications
Designed for SMATV installations with double coaxial cable for distribution. The installation is made with a single amplifier for the two distribution cables.
Characteristics
Made from zamak and galvanised plate for maximum shielding. Separate housings for the power supply unit and the high frequency circuit. F-type connectors, located on the lower part to make installation easier.
Downloads
Technical specification
Technical specification
Manuals
DA-520 Manual pdf 239.14 KB
2632101.03.pdf pdf 207.4 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – DA-520 20210716 pdf 70.6 KB
Technical specifications
