Alcad DI-303 If splitter 3 out with dc path
Alcad DI-303 – Serie 906: If splitter 3 out with dc path.

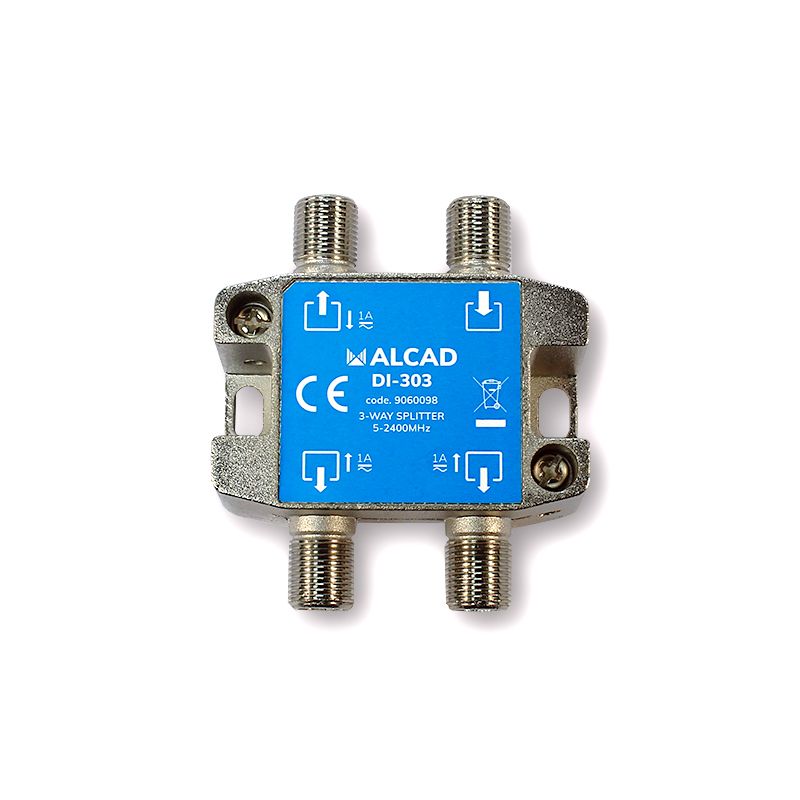

3-way splitter for terrestrial and satellite TV, covering all frequencies from 5MHz to 2,400MHz. It distributes all the input signal in equal parts among the 3 outputs. It has a feed path through any of its 3 outputs to the input. The response of the outputs is flat. Also available in 2-, 4-, 6- or 8-way models.
Applications
Individual and collective installations of terrestrial and satellite TV with a star-shaped distribution. They permit power to be fed from a preamplifier or LNB through any of the outputs. In installations with multiswitches, a control voltage can be sent through their outputs.
Characteristics
Protection diodes in all the outputs. Shielded zamak chassis and metal plate. Zamak F-type connectors which form part of splitter chassis.
Downloads
Technical specification
Technical specification
Manuals
DI-303 Manual pdf 923.93 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – 906-DI_20210426 pdf 70.31 KB
Technical specifications
Related products
-
Add to cartCurrent injector for powering active antennas, it is used in vehicles such as caravans and motor homes to send the necessary voltage to these antennas, such as the Diginova antenna.
-
Read moreAlcad PT-620 – Serie 907: If user acces point, if splitter 6 out.
User access point for terrestrial and satellite TV. It has two inputs and six outputs. One of the inputs remains connected to the outputs while the other input is permanently connected to a 75 ohm load. Designed for the 5-2,400 MHz frequency range. Also available in 2-, 3-, 4-, 5- and 8-output models.
