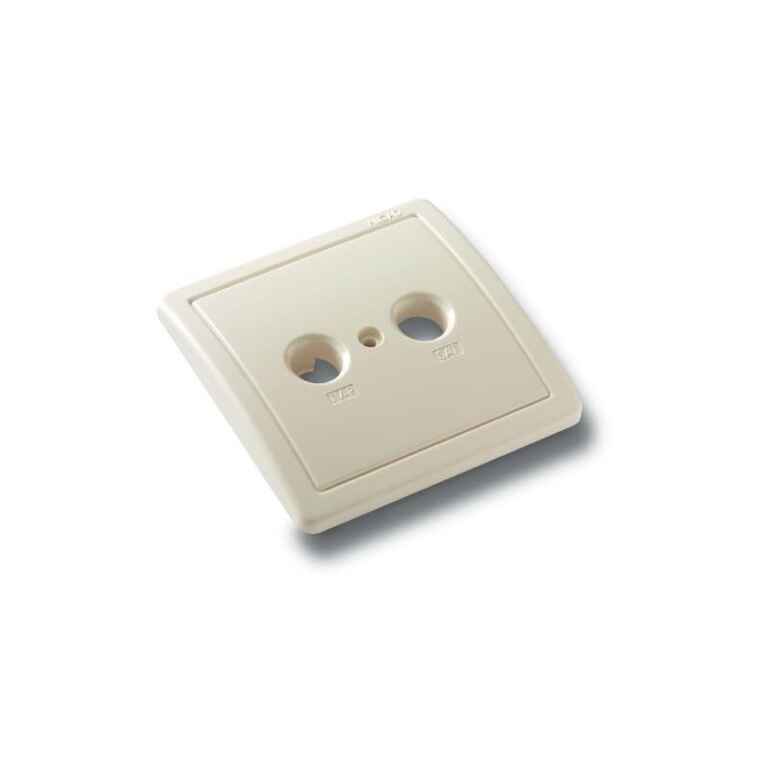

Alcad EM-202 Front plate for bs-112
KSh266.00
Alcad EM-202 – Serie 907: Front plate for bs-112.
TV-R/SAT frontplate for BS-100 and BS-112 outlet bases.
Downloads
Technical specification
Technical specification
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
Related products
-
Add to cartStep box with three connectors. CEI male for terrestrial TV, female CEI for FM and F female for multimedia data. It has a signal pass so it allows a serial installation of several outlets. In addition, due to its losses, it is suitable to be installed in plant 2. Installation with televes-524001 terminal sockets is recommended. Televes 524701
-
3 inputs VHF-UHF-UHF mixer Blister Televes
KSh4,568.00Add to cart3-input combiner for several terrestrial bands. Includes mast-mount case for outdoor installation.?Allows current pass from output to UHF input to power a mast amplifier or a BOSS system.?Orange colour.?Blister
-
Read moreAlcad PT-620 – Serie 907: If user acces point, if splitter 6 out.
User access point for terrestrial and satellite TV. It has two inputs and six outputs. One of the inputs remains connected to the outputs while the other input is permanently connected to a 75 ohm load. Designed for the 5-2,400 MHz frequency range. Also available in 2-, 3-, 4-, 5- and 8-output models.
Applications
Designed for TV installations with two coaxial cables in which distribution to the houses is performed with a single coaxial cable. The signal which is distributed to the house is selected by changing the connections of the coaxial cables at the user access point.
Characteristics
Voltage blockage in the output connectors. No return path. Shielded zamak and metal plate chassis. F type connectors in machined zamak which form part of the chassis. Reduced dimensions.
Downloads
Technical specification
Technical specification
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Add to cartIKUSI ARP-012. 19″rack cabinets with glass front door
Features
6 pcs wall racks for small installations.
One-piece chassis that gives it great robustness.
The interior guides are adjustable in depth and the sides are accessible, thus providing great versatility and functionality.
Technical specifications
MODEL ARP-006 ARP-012
Ref. 8228 8229
Height units 6U 12U
Material SPCC Cold Rolled Steel
Colour Black RAL9005
Thickness 2 mm
Static charge 60 kg
Front door Kind Glass door
Lock Spring lock
Rear panel Kind Yes
Lock Not
Removable side panel Yes (with key)
Upper cable entry Yes
Bottom cable entry Yes
Wall bracket Yes
Vertical racks Quantity 4
U marking Printed
Fixing screws U twenty
IP twenty
Measures Width 600 mm 600 mm
Deep 400 mm 600 mm
High 6U) 370 mm (12U) 635 mmMANUAL / DATASHEET
-
Add to cartDesigned to be wall-mounted in the main distribution point (dry environment indoors), and it allows the insertion of female RJ45/Coax connectors.
