Alcad FU-513 Power supply unit 7.5 v for multiswitch
KSh15,196.00

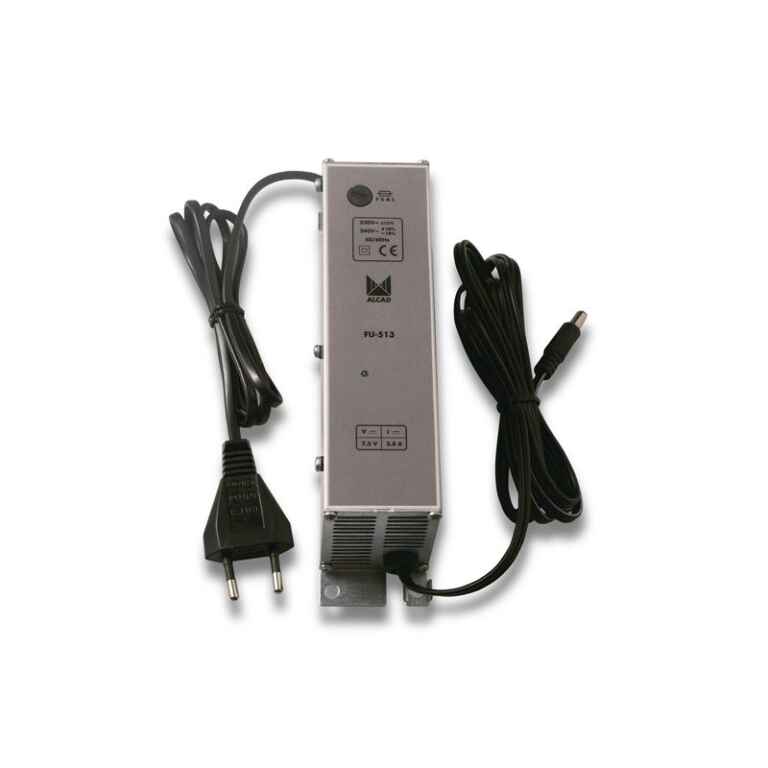

Alcad FU-513 – Serie 913: Power supply unit 7.5 v for multiswitch.
Power sources feeding LNBs, amplifiers and active multiswitches to obtain the total necessary current for all the elements of the installation, including the LNBs.
Applications
Model FU-612 is used for installations with final and cascadable multiswitches and to supply power to the LNBs. The number of LNBs which can be powered varies, depending on the consumption of the LNBs (2.000mA = 8 LNB x 250mA/LNB). Model FU-513 is used for installations in cascade, and to supply power to amplifiers and active multiswitches.
Characteristics
Switched power sources protected against power surges and short circuits. They include a fuse which the installer can access. Power supply cables are provided for connection to the network and to the multiswitch or amplifier. Power supply jack connector, 9.5mm 2.1mm
Downloads
Technical specification
Technical specification
Manuals
– pdf 389.08 KB
– pdf 375.26 KB
– pdf 151.45 KB
– pdf 619.16 KB
– pdf 275.29 KB
Catalogues
CAT_MMTV_EN_REDUCED pdf 4.43 MB
Certificates
CE_Declaration-TV_Distribution pdf 269.31 KB
Technical specifications
Related products
-
EuroSwitch 17 inputs – 24 outputs Televes
KSh366,388.00Add to cartCompact multiswitch equipped with 17 inputs (one terrestrial and 16 for four satellites, each with its four polarities) and 24 user outputs.
Thanks to its great compactness and its optimized electronic design, it presents very low through and tap losses. This allows to reduce the number of amplifiers needed in the cascade and to obtain a better balanced signal in the users, even in large collective installations.
Can be used as a terminal (star topology) or as a cascade by using a simple switch. In addition, it incorporates a second switch that actives the TForce technology, which automatically adjusts the terrestrial signal and keep it constant despite variations in the reception.
Highlights
Very compact in dimensions and weight, even in models with high number of users
Very low through and tap losses
Wide 12-18V power supply range, making it compatible with most existing systems
Equipped with the TForce technology, the terrestrial output level is automatically adjusted (TERR. AMP. ACTIVE) to the optimal level
Great isolation between inputs and outputs
100% european design, quality, and manufacturing
Main features
High shielding: A class
Input and output colour identification
Low consumption under normal conditions. In addition, ECO mode reduces consumption as the number of connected users decreases
Versatile: selector switch to shift between cascade and terminal modes
Two powering options: From the power supply, or from the cascade through the satellite inputs or outputs
Current circulation between all inputs and cascades
Specifications
Type ? 17x17x24
Frequency range MHz SAT 950 ? 2200 / 2400
RF 120 ? 862
Input level dB?V SAT 65 … 112
RF 80 … 110
Through losses dB SAT <3 ... 4.5/5,5 RF <4,5 Tap losses dB SAT 2 ... 7 RF Active 2 Pasive 34 Output level dB?V 10 Ch?s DTT 78 Isolation dB Trunk > 50
Users > 30
Powering V ? 12 – 18
Max. consumption mA PSU1 Active 115
Pasive 5
Receiver 85
Operating temperature ?C ? ?5?.+45
Protection level IP ? IP20 -
EuroSwitch 9 inputs – 16 outputs Televes
KSh108,408.00Add to cartCompact multiswitch equipped with 9 inputs (one terrestrial and 8 for two satellites, each with its four polarities) and 16 user outputs.
-
-
Amplifier 13×13 F G4/31/27 Vs105 Nevoswitch Televes
KSh84,700.00 -
Add to cart13x and 17x multiswitches range with 24 outputs with available through outputs to connect?several multiswitches in cascade configuration and therefore?extend the number of users.
