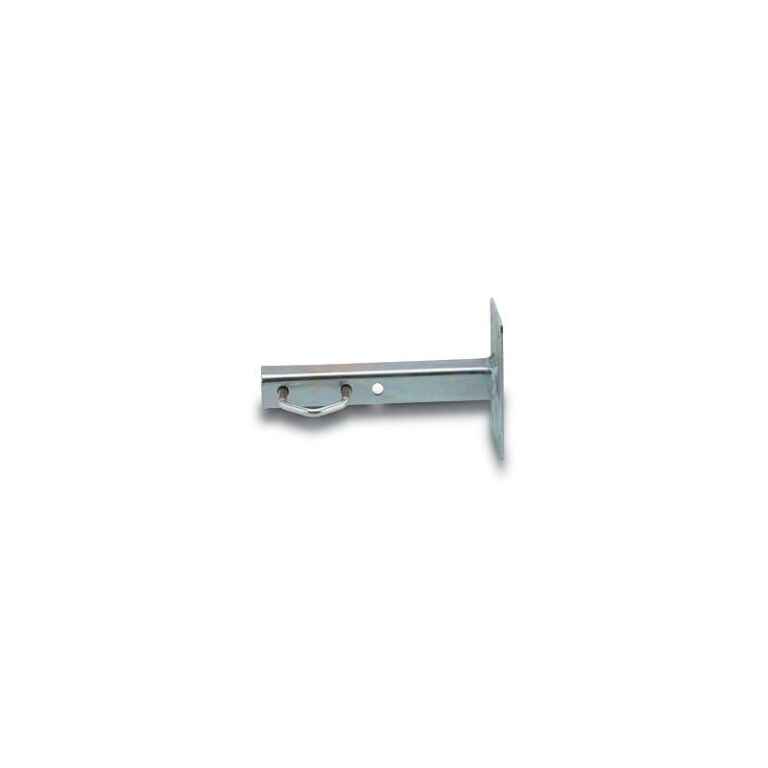

Alcad GM-200 Wall clamp for lag screws 200 mm
Alcad GM-200 – Serie 998: Wall clamp for lag screws 200 mm.
Brackets to secure the mast to a wall, to be fitted into the wall itself or to secure by means of metal bolts. Different strengths and lengths of brackets.
Applications
Two brackets are used to secure the mast to a wall.
Characteristics
Made from zinc-coated iron with an M8 clamp fixing system.
Downloads
Technical specification
Technical specification
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
