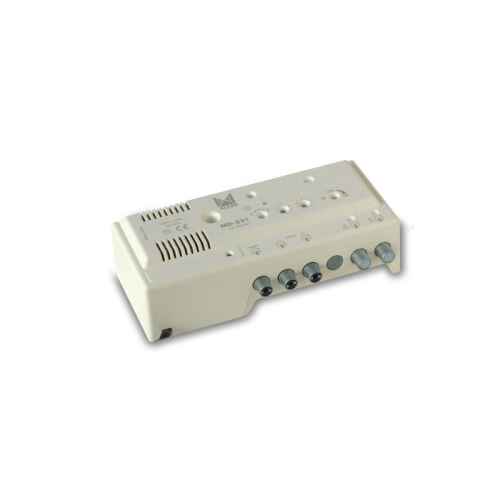

Alcad MD-531 Modulator wideband bg standard stereo
KSh20,820.00
Alcad MD-531 – Serie 951: Modulator wideband bg standard stereo.
TV modulator with stereo audio, which generates an analogue TV channel from the audio and video signals. The generated channel is mixed with the rest of the channels of the TV installation. It modulates the output channel for any channel of the terrestrial band based on the the B/G CCIR standard.
Applications
It modulates the audio and video signal of a satellite receiver, DVD, video or surveillance camera, in order to distribute it in the TV installation of the house. The audio and video signals are obtained from the scart connector of the video.
Characteristics
The output channel can be selected by means of switches. Essential features of this equipment are the high carrier to noise ratio together with a very reduced spurious level in the band. Modulation in DSB double side band. F type connector and RCA connector for audio/ video.
Downloads
Technical specification
Technical specification
Manuals
– pdf 243.71 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Systems pdf 65.95 KB
Technical specifications
